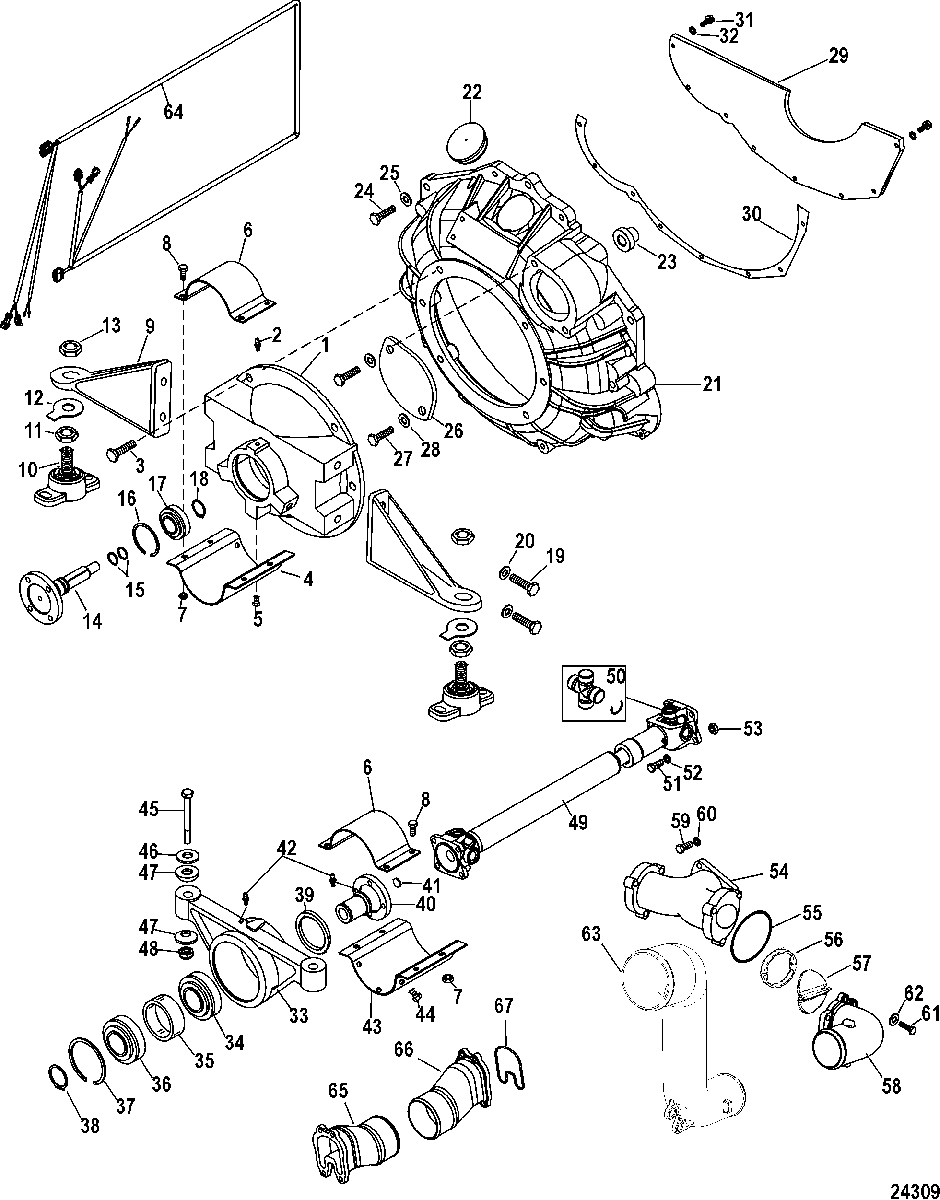

Jackshaft Components для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0W650000 THRU 1A299999
-
№АртикулНазвание
-
193911A4 HOUSING ASSEMBLY, Shaft Extension SupportHOUSING ASSEMBLY, Shaft Extension Support
-
222-74036 FITTING, Grease
(Use with greased bearing)FITTING, Grease
(Use with greased bearing) -
210-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
310-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
493918A1 SHIELD, LowerSHIELD, Lower
-
510-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
693919A1 SHIELD, UpperSHIELD, Upper
-
711-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
810-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
993923A1 MOUNT ASSEMBLY, Flywheel HousingMOUNT ASSEMBLY, Flywheel Housing
-
10814263A1 BASE ASSEMBLY, Mount AssemblyBASE ASSEMBLY, Mount Assembly
-
1111-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1214-12657 TAB WASHERTAB WASHER
-
1311-859126 NUT, (.750-16)NUT, (.750-16)
-
1493906A2 SHAFT, OutputSHAFT, Output
-
1525-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
1653-94104 RING, RetainingRING, Retaining
-
1730-879194A03 BEARING, BallBEARING, Ball
-
1853-8M0141818 RING, RetainingRING, Retaining
-
1910-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
2013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
21814309A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
2219-12304 PLUG, Timing WindowPLUG, Timing Window
-
2323-49126 BUSHING, PilotBUSHING, Pilot
-
2410-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2410-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2410-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
2513-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
26939201 PLATE, CoverPLATE, Cover
-
2710-92913 SCREW, (.437-14 x .750)SCREW, (.437-14 x .750)
-
2813-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
29818718A3 COVER KIT, Flywheel InspectionCOVER KIT, Flywheel Inspection
-
3027-86015 GASKET, Flywheel Inspection CoverGASKET, Flywheel Inspection Cover
-
3110-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
3213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
33817416A4 HOUSING ASSEMBLY, BearingHOUSING ASSEMBLY, Bearing
-
3430-93944A2 BEARING SET, Ball
Includes Part Number 36BEARING SET, Ball
Includes Part Number 36 -
3523-817417T SPACERSPACER
-
3630-93944A2 BEARING SET, Ball
Includes Part Number 34BEARING SET, Ball
Includes Part Number 34 -
3753-93914 RING, RetainingRING, Retaining
-
3853-93915 RING, RetainingRING, Retaining
-
3926-93924 SEAL, OilSEAL, Oil
-
40NSS NOT SOLD SEPARATE, Input ShaftNOT SOLD SEPARATE, Input Shaft
-
4119-93921 EXPANSION PLUGEXPANSION PLUG
-
4222-74036 FITTING, GreaseFITTING, Grease
-
4393918A1 SHIELD, LowerSHIELD, Lower
-
4410-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
4510-57053 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
4612-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
4712-42307 WASHER, SphericalWASHER, Spherical
-
4811-898832 NUT, (.500-20)NUT, (.500-20)
-
4945-94819T5 DRIVESHAFT ASSEMBLY, (34.50 Inches)DRIVESHAFT ASSEMBLY, (34.50 Inches)
-
5061221T CROSS AND BEARING, With ClipsCROSS AND BEARING, With Clips
-
5110-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
5213-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
5311-82670815 NUT, (.437-20)NUT, (.437-20)
-
5498626A3 SEPARATOR, ExhaustSEPARATOR, Exhaust
-
5525-35029 O-RING, (78.97 X 3.53 MM)O-RING, (78.97 X 3.53 MM)
-
5660931 RETAINERRETAINER
-
5760930 SHUTTER, Water, ExhaustSHUTTER, Water, Exhaust
-
5894018A1 ELBOW ASSEMBLY, ExhaustELBOW ASSEMBLY, Exhaust
-
5910-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
6013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
6110-8M0113174 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
6213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
6344390T ELBOW, ExhaustELBOW, Exhaust
-
6484-8M0084839 HARNESS ASSEMBLY, Extension
Without Digital Throttle and ShiftHARNESS ASSEMBLY, Extension
Without Digital Throttle and Shift -
6484-866784T01 HARNESS ASSEMBLY, Extension
With Digital Throttle and ShiftHARNESS ASSEMBLY, Extension
With Digital Throttle and Shift -
65862268T1 TUBETUBE
-
66862268T2 TUBETUBE
-
6741802 SEAL, RubberSEAL, Rubber
