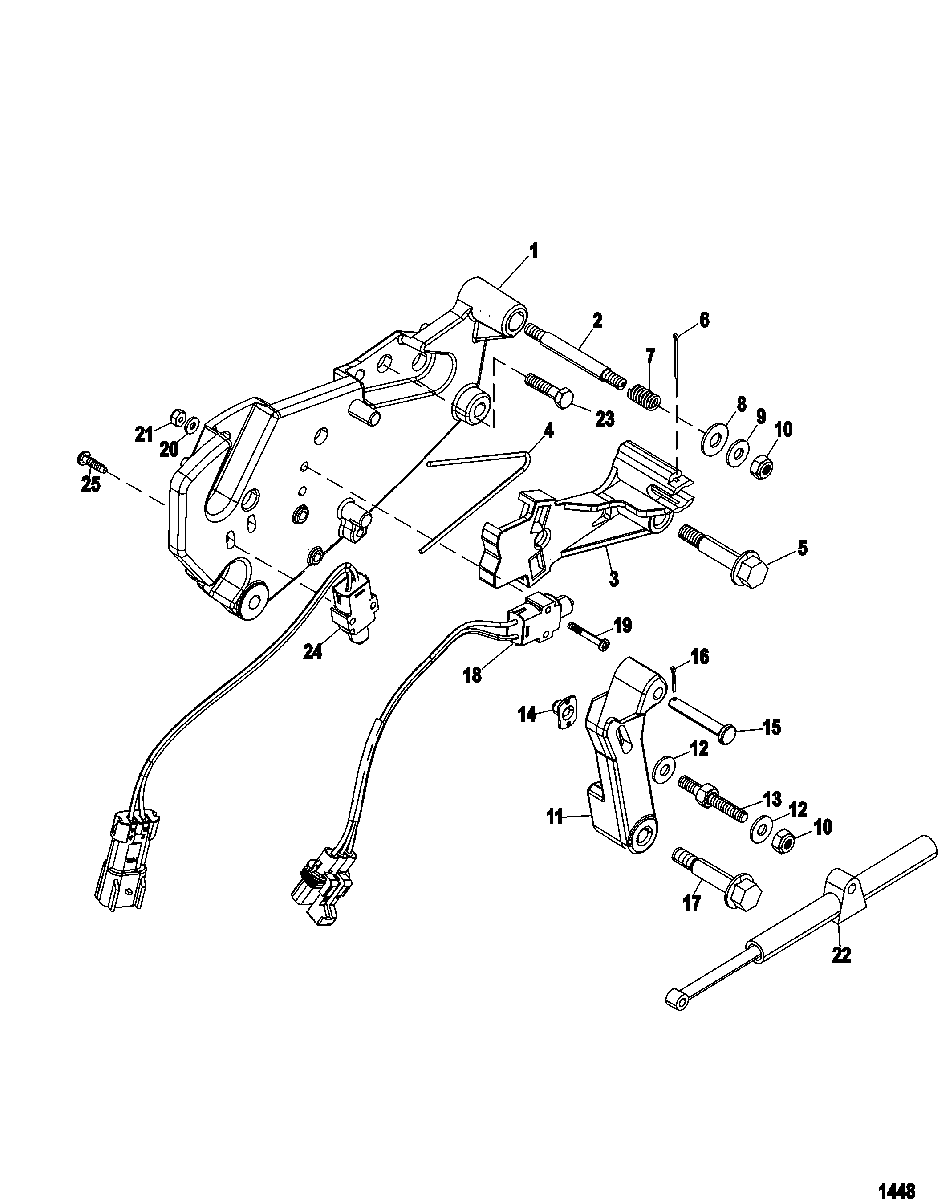

Shift Bracket(ALPHA)(SN-0M659999 and Below) для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0M600000 THRU 0W059999

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 2
    865149A02 STUD, (.250 x 2.870)
    STUD, (.250 x 2.870)
  • 3
    865433A02 LEVER ASSEMBLY, Actuating
    LEVER ASSEMBLY, Actuating
  • 4
    24-864907T SPRING (Red Dot)
    SPRING (Red Dot)
  • 5
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel (3/4 In. Dia.)
    WASHER, (.330 x .750 x .060) Stainless Steel (3/4 In. Dia.)
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel (5/8 In. Dia.)
    WASHER, (.2656 x .625 x .0625) Stainless Steel (5/8 In. Dia.)
  • 10
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 11
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    16-865393A02 STUD, (.250-28 x 1.90)
    STUD, (.250-28 x 1.90)
  • 14
    11-63341 TEE NUT
    TEE NUT
  • 15
    17-814001 PIN, Clevis
    PIN, Clevis
  • 16
    18-210711 COTTER PIN
    COTTER PIN
  • 17
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 18
    87-8M0052935 SWITCH ASSEMBLY, Shift Interrupt
    SWITCH ASSEMBLY, Shift Interrupt
  • 19
    10-860077 SCREW, (#6-32 x 1.00)
    SCREW, (#6-32 x 1.00)
  • 20
    12-11303 WASHER
    WASHER
  • 21
    11-F1669 NUT, (#6-32)
    NUT, (#6-32)
  • 22
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
  • 23
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 24
    87-8M0052936 SWITCH ASSEMBLY, Gear Indication
    SWITCH ASSEMBLY, Gear Indication
  • 25
    10-88904 SCREW, (#8-18 x .620)
    SCREW, (#8-18 x .620)
