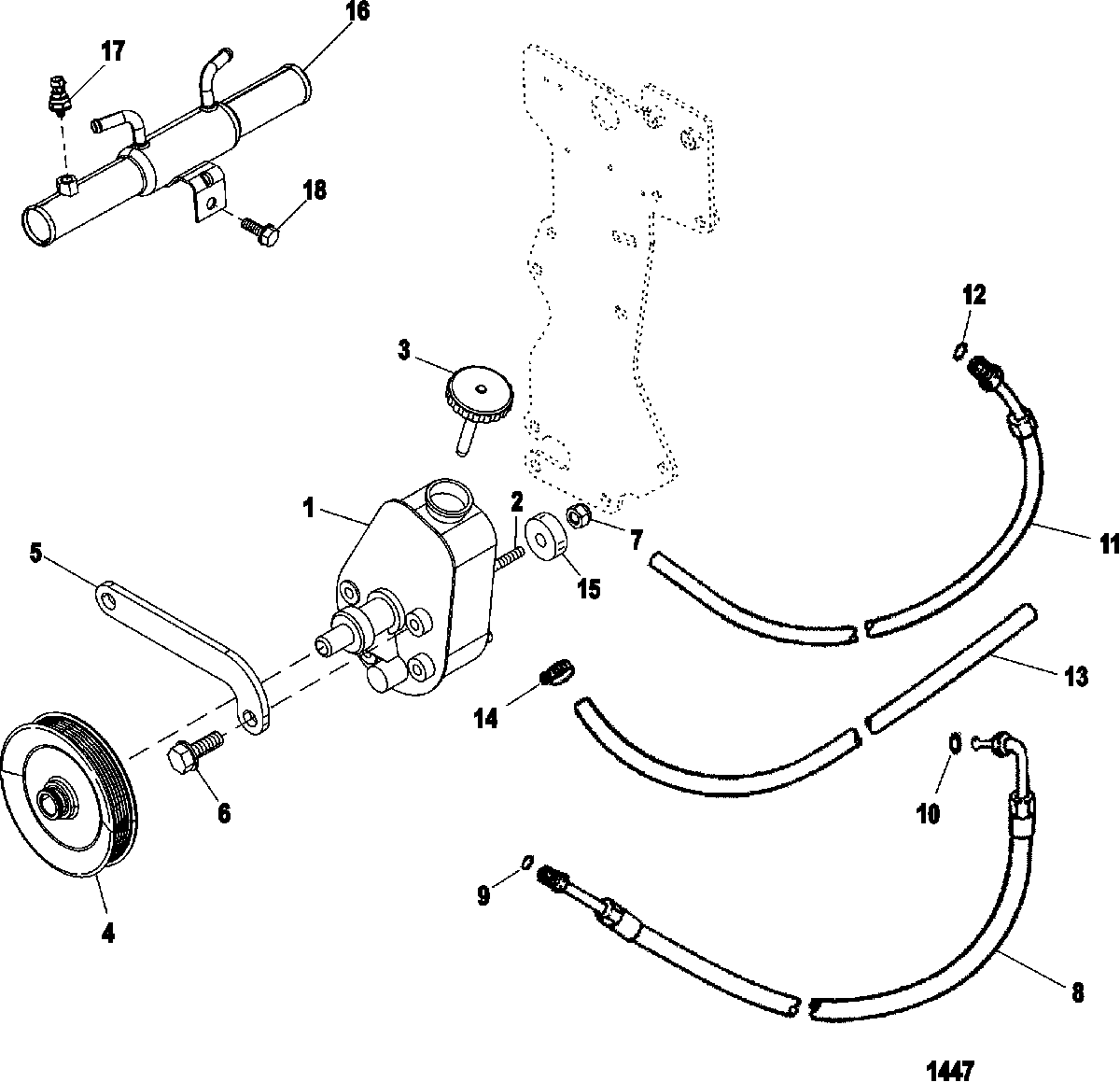

Power Steering Components для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0M300000 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, Power Steering
    PUMP ASSEMBLY, Power Steering
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    861578 PULLEY
    PULLEY
  • 5
    862082T BRACE
    BRACE
  • 6
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 7
    11-90517 NUT, (M10)
    NUT, (M10)
  • 8
    32-80622216 HOSE
    (Fittings On Both Ends)
    HOSE
    (Fittings On Both Ends)
  • 9
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 10
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 11
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fitting On One End)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fitting On One End)
  • 12
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 13
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump To Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump To Oil Cooler
  • 14
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 15
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 16
    8M0125856 COOLER, Power Steering
    COOLER, Power Steering
  • 17
    8M6000623 SENSOR, Water Pressure
    SENSOR, Water Pressure
  • 18
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
