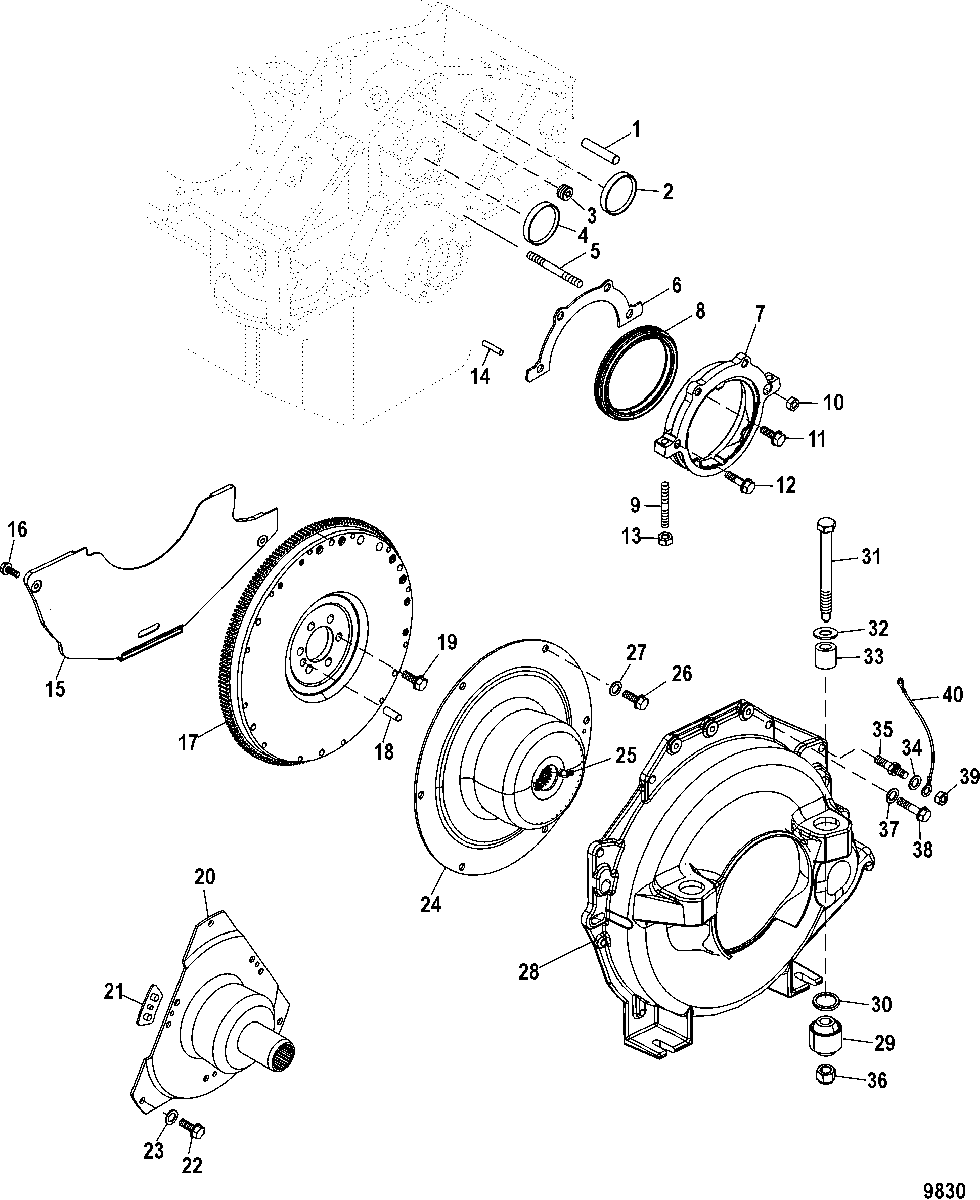

Cylinder Block, Flywheel Housing and Rear Main Seal для Mercruiser - 350 MAG MPI ALPHA/BRAVO EC 1A623185 & Up

№

Артикул

Название
1

17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location

PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location

300 ₽
2

19-34270 EXPANSION PLUG, (1.625), Engine Core Hole

EXPANSION PLUG, (1.625), Engine Core Hole

680 ₽
3

22-32561 PLUG, (.250-18 x .41), Oil Galley

PLUG, (.250-18 x .41), Oil Galley

430 ₽
4

22-72640 PLUG, Expansion, Camshaft Bearing Hole

PLUG, Expansion, Camshaft Bearing Hole

690 ₽
5

16-14827 STUD, (.250-20 x 2.180)

STUD, (.250-20 x 2.180)

1 120 ₽
6

27-881715 GASKET, Crankshaft Oil Seal Housing

GASKET, Crankshaft Oil Seal Housing

2 330 ₽
7

852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal

HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal

15 470 ₽
8

26-852941 SEAL, Cranskshaft Oil

SEAL, Cranskshaft Oil

9 480 ₽
9

16-11989 STUD, (.312-18 x 1.6718)

STUD, (.312-18 x 1.6718)

650 ₽
10

11-8M0098315 NUT

NUT

300 ₽
11

10-14242 BOLT, (.250-20 x .875)

BOLT, (.250-20 x .875)

1 680 ₽
12

10-8M0064241 BOLT, (.250-20 x 1.750)

BOLT, (.250-20 x 1.750)

370 ₽
13

11-11971 NUT, (.312-18)

NUT, (.312-18)

920 ₽
14

17-14263 PIN, Dowel, Oil Seal Housing Location

PIN, Dowel, Oil Seal Housing Location

350 ₽
15

807260A2 COVER KIT, Flywheel

COVER KIT, Flywheel

8 690 ₽
NS

11-807296 NUT, (.250-20)

NUT, (.250-20)

180 ₽
16

10-76596 SCREW, (.250-20 x 1.250)

SCREW, (.250-20 x 1.250)

140 ₽
16

10-86885 SCREW, (.250-20 x 1.500) Stainless Steel, Not Included With Item 15
(SEACORE)

SCREW, (.250-20 x 1.500) Stainless Steel, Not Included With Item 15
(SEACORE)

260 ₽
17

222-8M0047213 FLYWHEEL

FLYWHEEL

77 600 ₽
18

17-43504 PIN, Dowel, Flywheel

PIN, Dowel, Flywheel

450 ₽
19

10-845757 SCREW, (.437-20 x 1.00)

SCREW, (.437-20 x 1.00)

360 ₽
20

18643A5 COUPLING ASSEMBLY
Alpha

COUPLING ASSEMBLY
Alpha

36 230 ₽
NS

22-74036 FITTING, Grease
Alpha

FITTING, Grease
Alpha

340 ₽
21

18644 BUMPER, Rubber
Alpha

BUMPER, Rubber
Alpha

280 ₽
22

10-14883 SCREW, (.375-16 x 1.12)
Alpha

SCREW, (.375-16 x 1.12)
Alpha

150 ₽
23

12-13510 WASHER
Alpha

WASHER
Alpha

350 ₽
24

8M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum Hub
Bravo and All Jacksahft Models

COUPLER ASSEMBLY, Engine - Short Aluminum Hub
Bravo and All Jacksahft Models

87 970 ₽
24

861523A11 COUPLER ASSEMBLY, Engine
Bravo, Steel Hub for Work Application

COUPLER ASSEMBLY, Engine
Bravo, Steel Hub for Work Application

118 650 ₽
25

22-49099 FITTING
Bravo

FITTING
Bravo

320 ₽
26

10-863480 SCREW, (.375-16 x 1.125)
Bravo

SCREW, (.375-16 x 1.125)
Bravo

270 ₽
27

12-20572 WASHER, (.390 x .750 x .093)
Bravo

WASHER, (.390 x .750 x .093)
Bravo

90 ₽
28

865657A03 HOUSING ASSEMBLY, Flywheel
Alpha/Bravo

HOUSING ASSEMBLY, Flywheel
Alpha/Bravo

111 870 ₽
29

8M0103028 MOUNT KIT, Rubber
Alpha/Bravo

MOUNT KIT, Rubber
Alpha/Bravo

7 420 ₽
30

23-99322 SPACER

SPACER

120 ₽
31

10-97934 SCREW, (.500-20 x 5.370) Special

SCREW, (.500-20 x 5.370) Special

410 ₽
32

12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum

WASHER, (.5156 x 1.375 x .125) Aluminum

180 ₽
33

23-99299 SPACER, (.520 x .870 x .630)

SPACER, (.520 x .870 x .630)

710 ₽
34

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
35

16-861316 STUD, (.375-16 x 2.750) Special

STUD, (.375-16 x 2.750) Special

1 150 ₽
35

16-861316 STUD
Horizon

STUD
Horizon

1 150 ₽
36

11-863332 NUT, (.500-20) Aluminum

NUT, (.500-20) Aluminum

450 ₽
37

12-20572 WASHER, (.390 x .750 x .093)

WASHER, (.390 x .750 x .093)

90 ₽
38

10-68101 SCREW, (.375-16 x 1.375)

SCREW, (.375-16 x 1.375)

170 ₽
38

10-32132 SCREW, (.375-16 x 1.750)

SCREW, (.375-16 x 1.750)

200 ₽
38

10-8M2015899 SCREW, (.375-16 x 1.37) Stainless Steel
(SEACORE)

SCREW, (.375-16 x 1.37) Stainless Steel
(SEACORE)

290 ₽
39

11-32219 NUT, (.375-16)

NUT, (.375-16)

180 ₽
39

11-82671112 NUT, (.375-16)
(SEACORE)

NUT, (.375-16)
(SEACORE)

230 ₽
40

84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black

CABLE ASSEMBLY, Ground (13.00 Inches) Black

1 600 ₽
