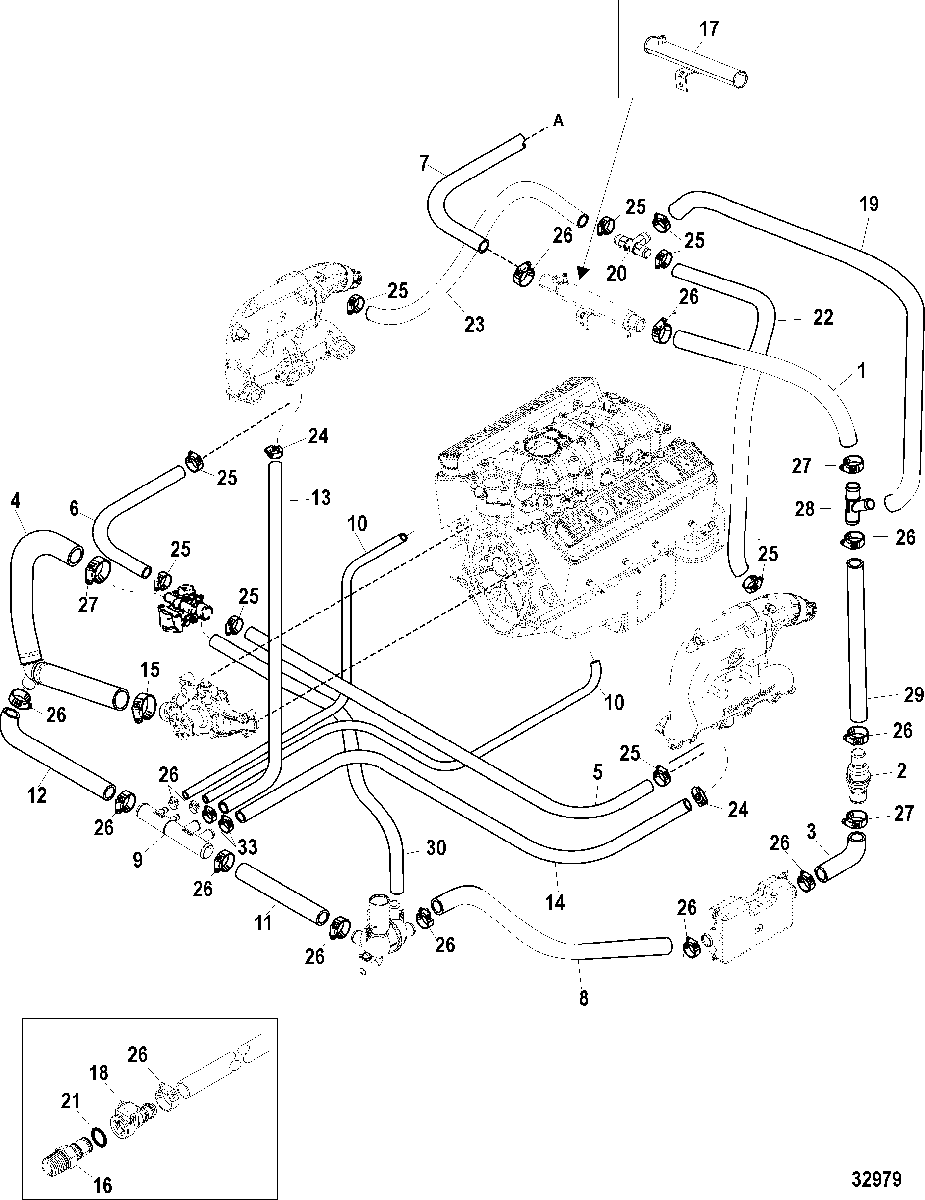

Standard Cooling System (Alpha), Single and 7 Point Drain для Mercruiser - 350 MAG MPI ALPHA/BRAVO EC 1A611928 THRU 1A623184

  • №
    Артикул
    Название
  • 1
    32-8M2004196 HOSE, Power Steering Cooler to Check Valve
    HOSE, Power Steering Cooler to Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863623 HOSE, Check Valve to Fuel Cooler
    HOSE, Check Valve to Fuel Cooler
  • 4
    32-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
    HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
  • 5
    32-863458 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 6
    32-863459 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 7
    32-807661 HOSE, Transom Assembly to Power Steering Cooler
    HOSE, Transom Assembly to Power Steering Cooler
  • 8
    32-863670 HOSE, Fuel Cooler to Water Distribution Housing
    HOSE, Fuel Cooler to Water Distribution Housing
  • 9
    22-864621A1 FITTING ASSEMBLY, Lower Distribution
    FITTING ASSEMBLY, Lower Distribution
  • 10
    32-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
    Port Cut to 23 Inches, Starboard 17 Inches
    HOSE, Cylinder Block Drain to Distribution Fitting
    Port Cut to 23 Inches, Starboard 17 Inches
  • 11
    32-863490 HOSE, Water Drain Accumulator to Distribution Fitting
    HOSE, Water Drain Accumulator to Distribution Fitting
  • 11
    32-8M2010477 HOSE, Water Distribution Housing to Circulation Pump
    7 Point Drain
    HOSE, Water Distribution Housing to Circulation Pump
    7 Point Drain
  • 12
    32-863491 HOSE, Distribution Fitting to Y-Fitting
    HOSE, Distribution Fitting to Y-Fitting
  • 13
    32-8M0062634 HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
    Cut to 22 Inch Length
    HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
    Cut to 22 Inch Length
  • 14
    32-8M0062634 HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
    Cut to 31 Inch Length
    HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
    Cut to 31 Inch Length
  • 15
    54-815504232 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 16
    22-862603 FITTING, Male Quick Connector, Threaded
    FITTING, Male Quick Connector, Threaded
  • 17
    863841T TUBE, Water, Brass
    Compact Hydraulic Steering
    TUBE, Water, Brass
    Compact Hydraulic Steering
  • 18
    22-862225 FITTING, Pushlock
    FITTING, Pushlock
  • 19
    32-8M2012165 HOSE, Y-Fitting to Tee Fitting
    HOSE, Y-Fitting to Tee Fitting
  • 20
    22-8M2014002 FITTING, Tee, Red
    FITTING, Tee, Red
  • 21
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 22
    32-8M2012166 HOSE, Tee Fitting to Port Elbow
    HOSE, Tee Fitting to Port Elbow
  • 23
    32-8M2012167 HOSE, Tee Fitting to Starboard Elbow
    HOSE, Tee Fitting to Starboard Elbow
  • 24
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 26
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 27
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 28
    22-8M2003728 Y-FITTING
    Y-FITTING
  • 29
    32-8M2010479 HOSE, Y-Fitting to Check Valve
    HOSE, Y-Fitting to Check Valve
  • 30
    32-8M2003797 HOSE, Distribution Housing to Thermostat Housing
    HOSE, Distribution Housing to Thermostat Housing
