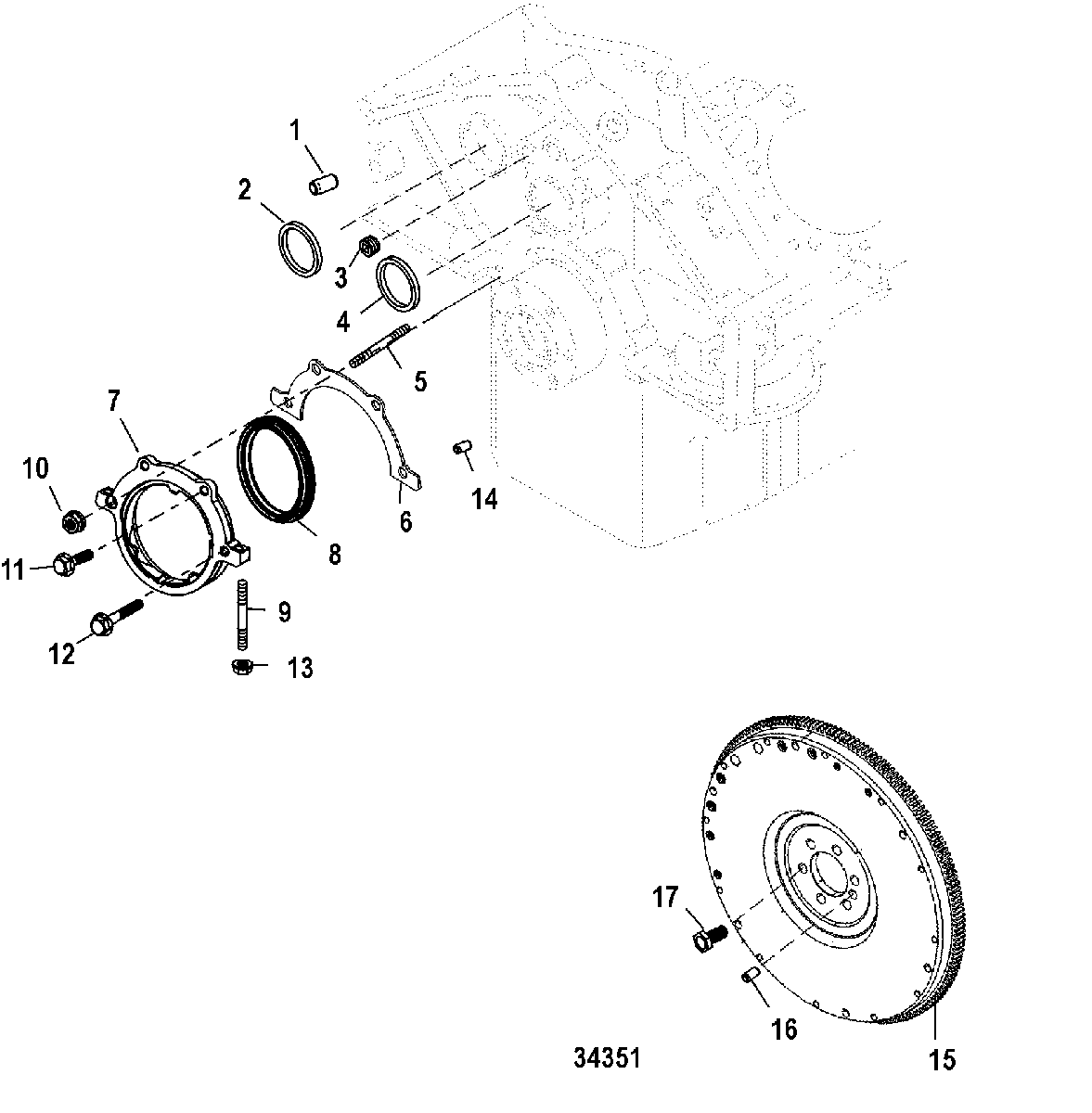

Flywheel Housing для Mercruiser - 350 (4 BBL) Gen+ Crate Engine ALL & Up

  • №
    Артикул
    Название
  • 1
    17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
    PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
  • 2
    19-34270 EXPANSION PLUG, (1.625), Engine Core Hole
    EXPANSION PLUG, (1.625), Engine Core Hole
  • 3
    22-32561 PLUG, (.250-18 x .41), Oil Galley
    PLUG, (.250-18 x .41), Oil Galley
  • 4
    22-72640 PLUG, Expansion, Camshaft Bearing Hole
    PLUG, Expansion, Camshaft Bearing Hole
  • 5
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 6
    27-881715 GASKET, Crankshaft Oil Seal Housing
    GASKET, Crankshaft Oil Seal Housing
  • 7
    852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
    HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
  • 8
    26-852941 SEAL, Crankshaft Oil
    SEAL, Crankshaft Oil
  • 9
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 10
    11-8M0098315 NUT
    NUT
  • 11
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 12
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 13
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 14
    17-14263 PIN, Dowel, Oil Seal Housing Locating
    PIN, Dowel, Oil Seal Housing Locating
  • 15
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 16
    17-43504 PIN, Dowel, Flywheel
    PIN, Dowel, Flywheel
  • 17
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
