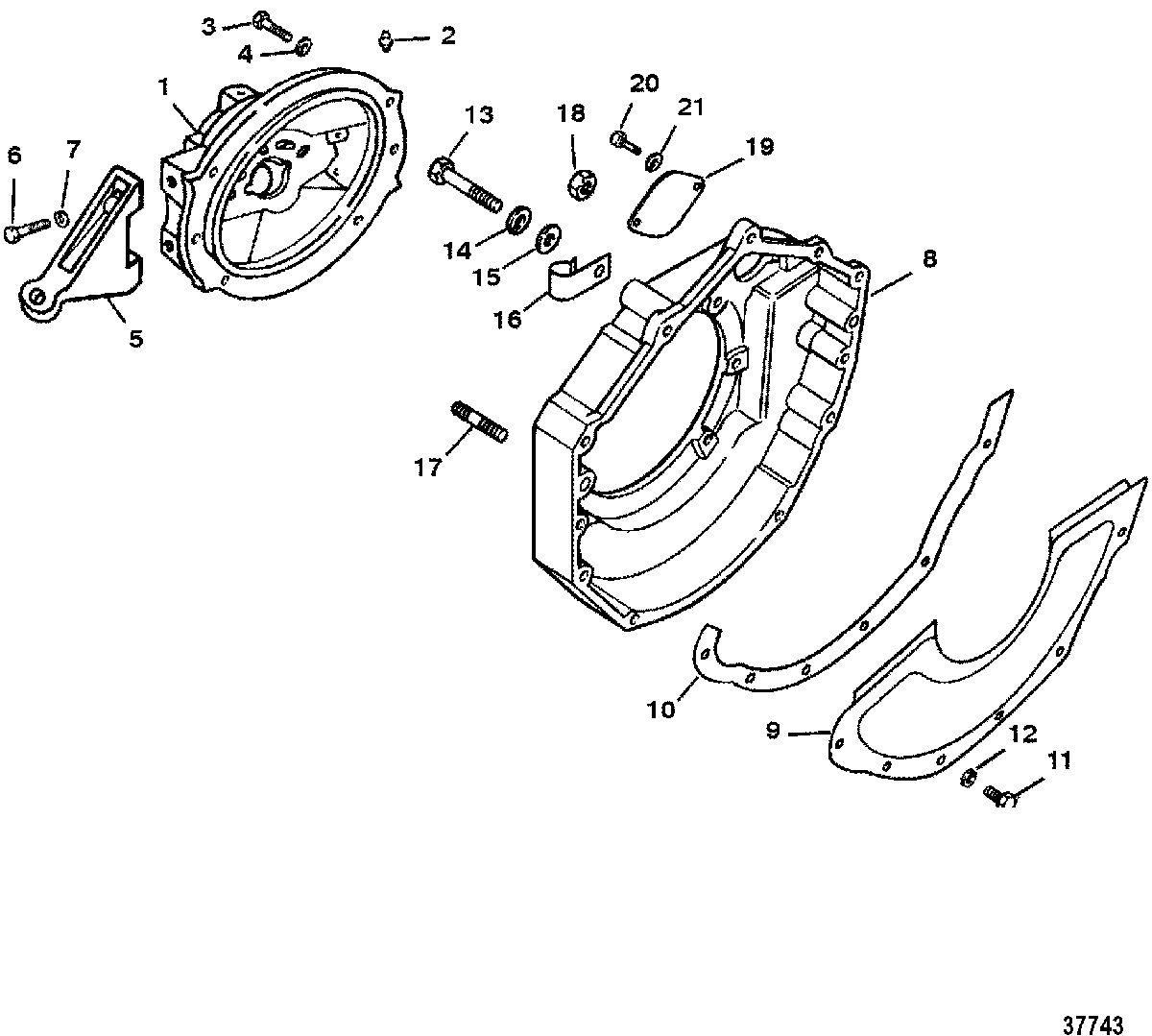

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODELS) для Mercruiser - 260 GM 350 V-8 1987 0B525982 THRU 0B773304

  • №
    Артикул
    Название
  • 1
    93911A4 HOUSING ASSEMBLY, Shaft Extension Support
    HOUSING ASSEMBLY, Shaft Extension Support
  • 2
    22-74036 FITTING, Grease
    FITTING, Grease
  • 3
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 4
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 5
    93923A1 MOUNT ASSEMBLY
    MOUNT ASSEMBLY
  • 6
    10-47651 SCREW, (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50)
  • 7
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 8
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 9
    818718A3 COVER KIT
    COVER KIT
  • 10
    27-86015 GASKET
    GASKET
  • 11
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 13
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 13
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 14
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 15
    12-20572 WASHER, (.390 x .750 x .093) (FOR SLOT)
    WASHER, (.390 x .750 x .093) (FOR SLOT)
  • 16
    54-92850 CLAMP
    CLAMP
  • 17
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 18
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 19
    939201 PLATE
    PLATE
  • 20
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 21
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
