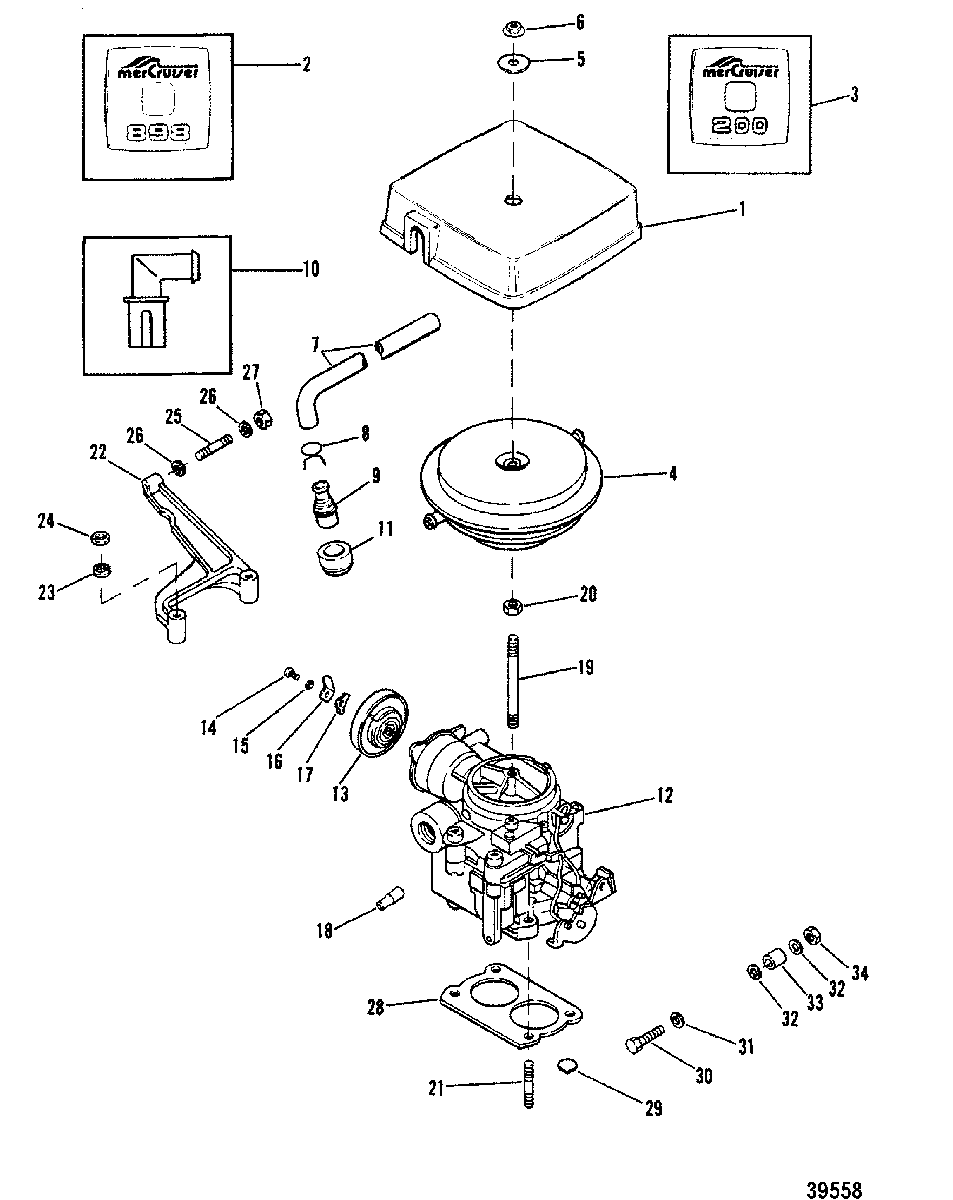

CARBURETOR AND THROTTLE LINKAGE(898-200) для Mercruiser - 260 GM 350 V-8 1982-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, CARBURETOR (PLASTIC)
    COVER, CARBURETOR (PLASTIC)
  • 2
    37-98677 DECAL, CORBURETOR COVER (898)
    DECAL, CORBURETOR COVER (898)
  • 3
    37-137239 DECAL, CARBURETOR COVER (200 ALPHA ONE)
    DECAL, CARBURETOR COVER (200 ALPHA ONE)
  • 4
    86271 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 5
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 6
    11-826709109 NUT, (.250-28), SILENCER ADAPTER
    NUT, (.250-28), SILENCER ADAPTER
  • 7
    32-8M0062669 HOSE, VENT - CARBURETOR (11-1/4")
    HOSE, VENT - CARBURETOR (11-1/4")
  • 8
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 9
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
    CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
  • 10
    97850T ELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVER (STARBOARD)
    ELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVER (STARBOARD)
  • 11
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 12
    3310-861080A1 CARBURETOR ASSEMBLY
    (ROCHESTER)
    CARBURETOR ASSEMBLY
    (ROCHESTER)
  • 12
    3310-861080A1 CARBURETOR ASSEMBLY
    (MERCARB)
    CARBURETOR ASSEMBLY
    (MERCARB)
  • 13
    70125A02 COVER, CHOKE
    COVER, CHOKE
  • 14
    10-33047 SCREW, CHOKE COVER TO CHOKE HOUSING
    SCREW, CHOKE COVER TO CHOKE HOUSING
  • 15
    13-26995 LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
    LOCKWASHER, (#8) Stainless Steel, CHOKE COVER SCREW
  • 16
    86-70879 TERMINAL, CHOKE COVER SCREW
    TERMINAL, CHOKE COVER SCREW
  • 17
    54-33036 RETAINER, CHOKE COVER SCREW
    RETAINER, CHOKE COVER SCREW
  • 18
    22-54090 ELBOW, CARBURETOR
    ELBOW, CARBURETOR
  • 19
    16-97012 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 20
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 21
    16-70237 STUD, (.312-18/.312-24 x 2.620), CARBURETOR
    STUD, (.312-18/.312-24 x 2.620), CARBURETOR
  • 21
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR
    STUD, (.312 x 1.500), CARBURETOR
  • 22
    805489T BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 23
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 24
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 25
    16-38525 STUD, THROTTLE CABLE
    STUD, THROTTLE CABLE
  • 26
    12-24664 WASHER, (M4 x 20), THROTTLE CABLE STUD
    WASHER, (M4 x 20), THROTTLE CABLE STUD
  • 27
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 28
    27-8079821 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 29
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 30
    10-37892 SCREW, (.190-32 x 1.00)
    SCREW, (.190-32 x 1.00)
  • 31
    12-26907 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 32
    12-847883 WASHER, TRHOTTLE CABLE SCREW
    WASHER, TRHOTTLE CABLE SCREW
  • 33
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 34
    11-859124 NUT, (#10-32) Stainless Steel, THROTTLE CABLE SCREW
    NUT, (#10-32) Stainless Steel, THROTTLE CABLE SCREW
  • -
    27-75611A86 GASKET SET
    GASKET SET
