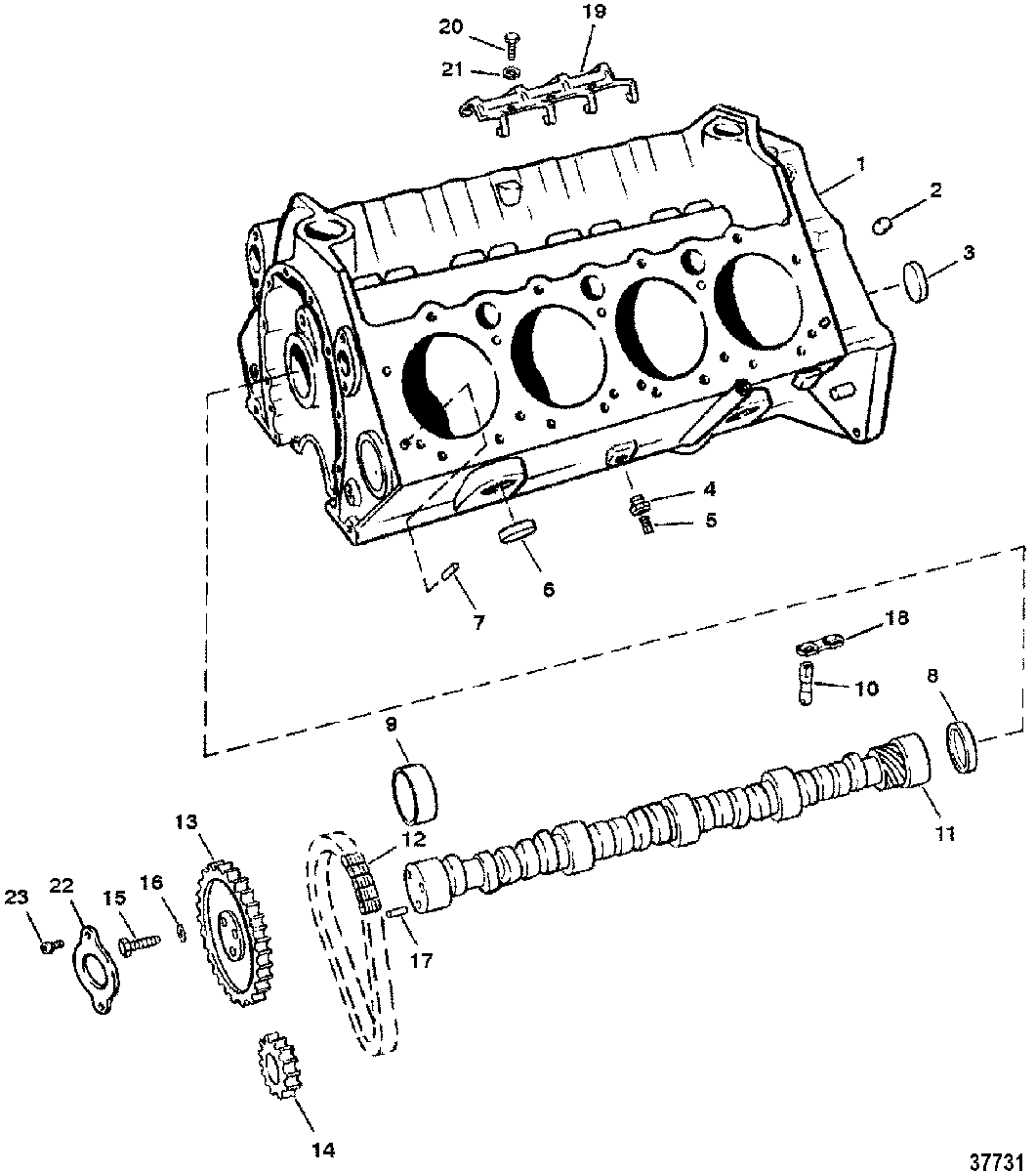

CYLINDER BLOCK AND CAMSHAFT(ROLLER LIFTERS) для Mercruiser - 260 (4 BBL.) GM 305 V-8 1987 0B525982 THRU 0B773739

  • №
    Артикул
    Название
  • 1
    N.S.S. Not Sold Separate, CYLINDER BLOCK ASSEMBLY
    (ORDER REMANUFACTURED LONG BLOCK 807447R2)
    Not Sold Separate, CYLINDER BLOCK ASSEMBLY
    (ORDER REMANUFACTURED LONG BLOCK 807447R2)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 3
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 4
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 5
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 6
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 7
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 8
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 9
    23-85674 BEARING SET (SET)
    BEARING SET (SET)
  • 10
    17340T LIFTER
    LIFTER
  • 11
    431-811658 CAMSHAFT
    CAMSHAFT
  • 12
    11985 TIMING CHAIN
    TIMING CHAIN
  • 13
    43-811659 SPROCKET
    SPROCKET
  • 14
    43-42755T SPROCKET
    SPROCKET
  • 15
    10-34505 SCREW, (.312-18 x .875)
    SCREW, (.312-18 x .875)
  • 16
    12-848136 WASHER, (.328 x .680 x .190)
    WASHER, (.328 x .680 x .190)
  • 17
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 18
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 19
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 20
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 21
    12-811664 WASHER, (.3125 Inch)
    WASHER, (.3125 Inch)
  • 22
    845941 RETAINER
    RETAINER
  • 23
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    807447R5 LONGBLOCK ASSEMBLY (350 C.I.D.)
    LONGBLOCK ASSEMBLY (350 C.I.D.)
  • -
    27-75611A88 GASKET SET, Engine
    GASKET SET, Engine
  • -
    92-809826 SEALER, Red RTV (WHERE APPLICABLE)
    SEALER, Red RTV (WHERE APPLICABLE)
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
    SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
