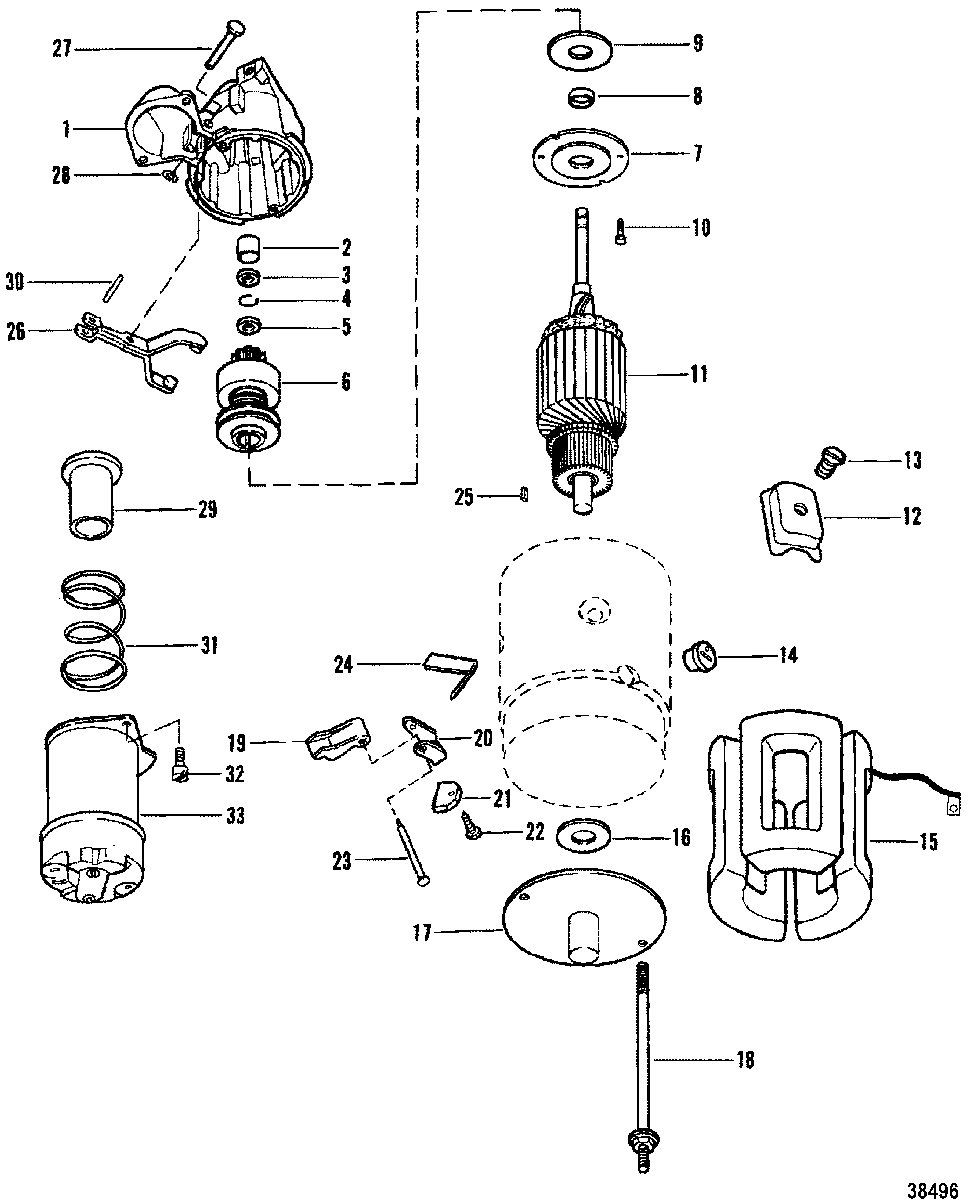

STARTER MOTOR(USE WITH 14" FLYWHEEL) для Mercruiser - 260 (4 BBL.) GM 305 V-8 1982-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • --
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    75666 HOUSING ASSEMBLY, DRIVE END
    HOUSING ASSEMBLY, DRIVE END
  • 1
    13754 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 2
    23-33369 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST
    COLLAR, THRUST
  • 4
    53-33290 RING, Retaining, PINION STOP COLLAR
    RING, Retaining, PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP
    COLLAR, PINION STOP
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH
    DRIVE ASSEMBLY, CLUTCH
  • 7
    79396 PLATE, BEARING
    PLATE, BEARING
  • 8
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 9
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 10
    N.S.S. Not Sold Separate, SCREW, BEARING PLATE (DELCO-REMY #1972786)
    Not Sold Separate, SCREW, BEARING PLATE (DELCO-REMY #1972786)
  • 10
    N.S.S. Not Sold Separate, SCREW, BEARING PLATE (DELCO-REMY #1984000)
    Not Sold Separate, SCREW, BEARING PLATE (DELCO-REMY #1984000)
  • 11
    71693 ARMATURE
    ARMATURE
  • 11
    75665 ARMATURE
    ARMATURE
  • 12
    N.S.S. Not Sold Separate, POLE SHOE - FIELD COIL (DELCO-REMY #1931129)
    Not Sold Separate, POLE SHOE - FIELD COIL (DELCO-REMY #1931129)
  • 12
    N.S.S. Not Sold Separate, POLE SHOE - FIELD COIL (DELCO-REMY #810601)
    Not Sold Separate, POLE SHOE - FIELD COIL (DELCO-REMY #810601)
  • 13
    N.S.S. Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL (DELCO-REMEY #1968396)
    Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL (DELCO-REMEY #1968396)
  • 14
    25-79208 GROMMET, FIELD COIL - FIELD FRAME
    GROMMET, FIELD COIL - FIELD FRAME
  • 15
    79212 COIL ASSEMBLY
    COIL ASSEMBLY
  • 15
    75664 COIL ASSEMBLY
    COIL ASSEMBLY
  • 16
    12-33258 WASHER, Leather, COMMUTATOR END FRAME
    WASHER, Leather, COMMUTATOR END FRAME
  • 17
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 18
    N.S.S. Not Sold Separate, THRU BOLT (DELCO-REMY #1941111)
    Not Sold Separate, THRU BOLT (DELCO-REMY #1941111)
  • 18
    N.S.S. Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)
    Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)
  • 19
    33284 HOLDER, INSULATED
    HOLDER, INSULATED
  • 20
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 21
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 22
    N.S.S. Not Sold Separate, SCREW, BRUSH LEAD (DELCO REMY #1967747)
    Not Sold Separate, SCREW, BRUSH LEAD (DELCO REMY #1967747)
  • 22
    N.S.S. Not Sold Separate, SCREW, BRUSH LEAD (DELCO REMY #443527)
    Not Sold Separate, SCREW, BRUSH LEAD (DELCO REMY #443527)
  • 23
    33294 SUPPORT, GROUND AND INSULATED HOLDERS
    SUPPORT, GROUND AND INSULATED HOLDERS
  • 24
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 25
    N.S.S. Not Sold Separate, DOWEL PIN - FIELD FRAME (DELCO REMY #1985696)
    Not Sold Separate, DOWEL PIN - FIELD FRAME (DELCO REMY #1985696)
  • 26
    71698 LEVER, SHIFT
    LEVER, SHIFT
  • 27
    N.S.S. Not Sold Separate, STUD, SHIFT LEVER (DELCO REMY #1945804)
    Not Sold Separate, STUD, SHIFT LEVER (DELCO REMY #1945804)
  • 28
    N.S.S. Not Sold Separate, RETAINING RING (DELCO REMY #11505767)
    Not Sold Separate, RETAINING RING (DELCO REMY #11505767)
  • 29
    33317 PLUNGER, SHIFT LEVER
    PLUNGER, SHIFT LEVER
  • 30
    N.S.S. Not Sold Separate, PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049)
    Not Sold Separate, PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049)
  • 31
    N.S.S. Not Sold Separate, SPRING, PLUNGER RETURN (DELCO REMY #1978281)
    Not Sold Separate, SPRING, PLUNGER RETURN (DELCO REMY #1978281)
  • 32
    N.S.S. Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO REMY #9413260)
    Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO REMY #9413260)
  • 33
    13037 SOLENOID SWITCH
    SOLENOID SWITCH
