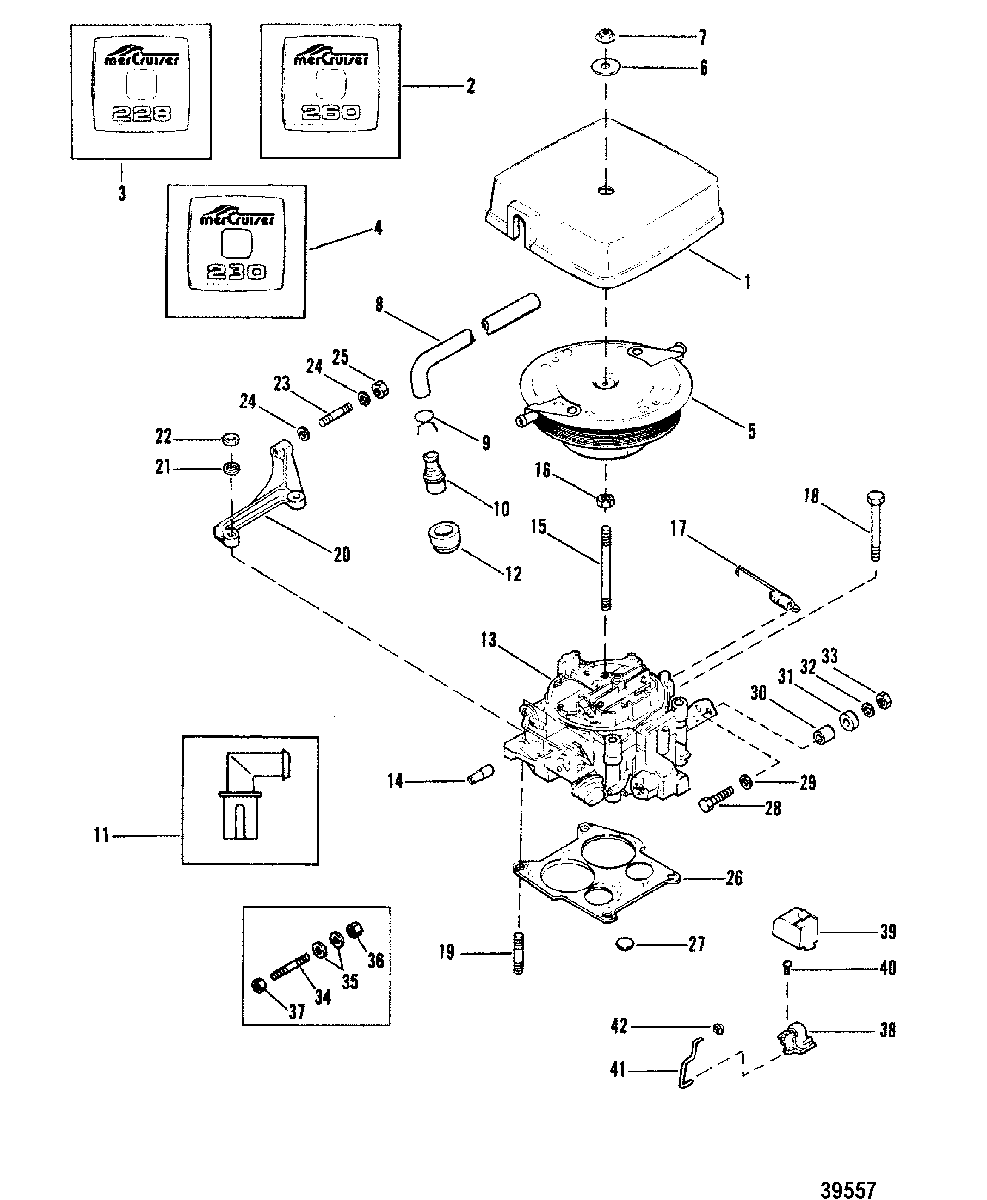

CARBURETOR AND THROTTLE LINKAGE(228 - 230 - 260) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1982-1984 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, CARBURETOR (PLASTIC)
    COVER, CARBURETOR (PLASTIC)
  • 2
    37-1372312 DECAL, CARBURETOR COVER (260 APLHA ONE)
    DECAL, CARBURETOR COVER (260 APLHA ONE)
  • 3
    37-98676 DECAL, CARBURETOR COVER (228)
    DECAL, CARBURETOR COVER (228)
  • 4
    37-1372311 DECAL, CARBURETOR COVER (230 APLHA ONE)
    DECAL, CARBURETOR COVER (230 APLHA ONE)
  • 5
    805298A1 ARRESTOR ASSEMBLY, Flame, CARBURETOR
    ARRESTOR ASSEMBLY, Flame, CARBURETOR
  • 6
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 7
    11-826709109 NUT, (.250-28), SILENCER ADAPTER
    NUT, (.250-28), SILENCER ADAPTER
  • 8
    32-8M0062669 HOSE, VENT - CARBURETOR (11-1/4")
    HOSE, VENT - CARBURETOR (11-1/4")
  • 9
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 10
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
    CONNECTOR, VENT HOSE TO ROCKER COVER (PORT)
  • 11
    97850T ELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVER (STARBOARD)
    ELBOW, 90 Degree, Breather - VENT HOSE TO ROCKER COVER (STARBOARD)
  • 12
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 13
    1347-804624R02 CARBURETOR ASSEMBLY
    (260)
    CARBURETOR ASSEMBLY
    (260)
  • 13
    1347-804623R02 CARBURETOR ASSEMBLY
    (228/230)
    CARBURETOR ASSEMBLY
    (228/230)
  • 14
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 15
    16-91842 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 16
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 17
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 18
    10-74822 SCREW, (.312-18 x 3.500), CARBURETOR
    SCREW, (.312-18 x 3.500), CARBURETOR
  • 19
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR
    STUD, (5/16 x 1-7/8), CARBURETOR
  • 20
    805359A02 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 21
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 22
    11-29250 NUT, (.312-24), CARBURETOR STUD
    NUT, (.312-24), CARBURETOR STUD
  • 23
    16-38525 STUD, THROTTLE CABLE
    STUD, THROTTLE CABLE
  • 24
    12-24664 WASHER, (M4 x 20), THROTTLE CABLE STUD
    WASHER, (M4 x 20), THROTTLE CABLE STUD
  • 25
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 26
    27-524572 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 27
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 28
    10-98509 SCREW, THROTTLE CABLE (1-1/18")
    THROTTLE CABLE ATTACHES WITH SCREW
    SCREW, THROTTLE CABLE (1-1/18")
    THROTTLE CABLE ATTACHES WITH SCREW
  • 29
    12-847883 WASHER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    WASHER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 30
    23-57938 BUSHING, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    BUSHING, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 31
    23-34948 SPACER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    SPACER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 32
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 33
    11-8267086 NUT, (#10-32), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    NUT, (#10-32), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 34
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor-THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH STUD
    STUD, (.250-28 x 2.00), Throttle Cable Anchor-THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH STUD
  • 35
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 36
    11-8267089 NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 37
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 38
    71464A01 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 39
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 40
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE TERMOSTAT
    SCREW, (5/8), AUTOMATIC CHOKE TERMOSTAT
  • 41
    61112 ROD, CHOKE
    ROD, CHOKE
  • 42
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • -
    27-75611A86 GASKET SET
    GASKET SET
