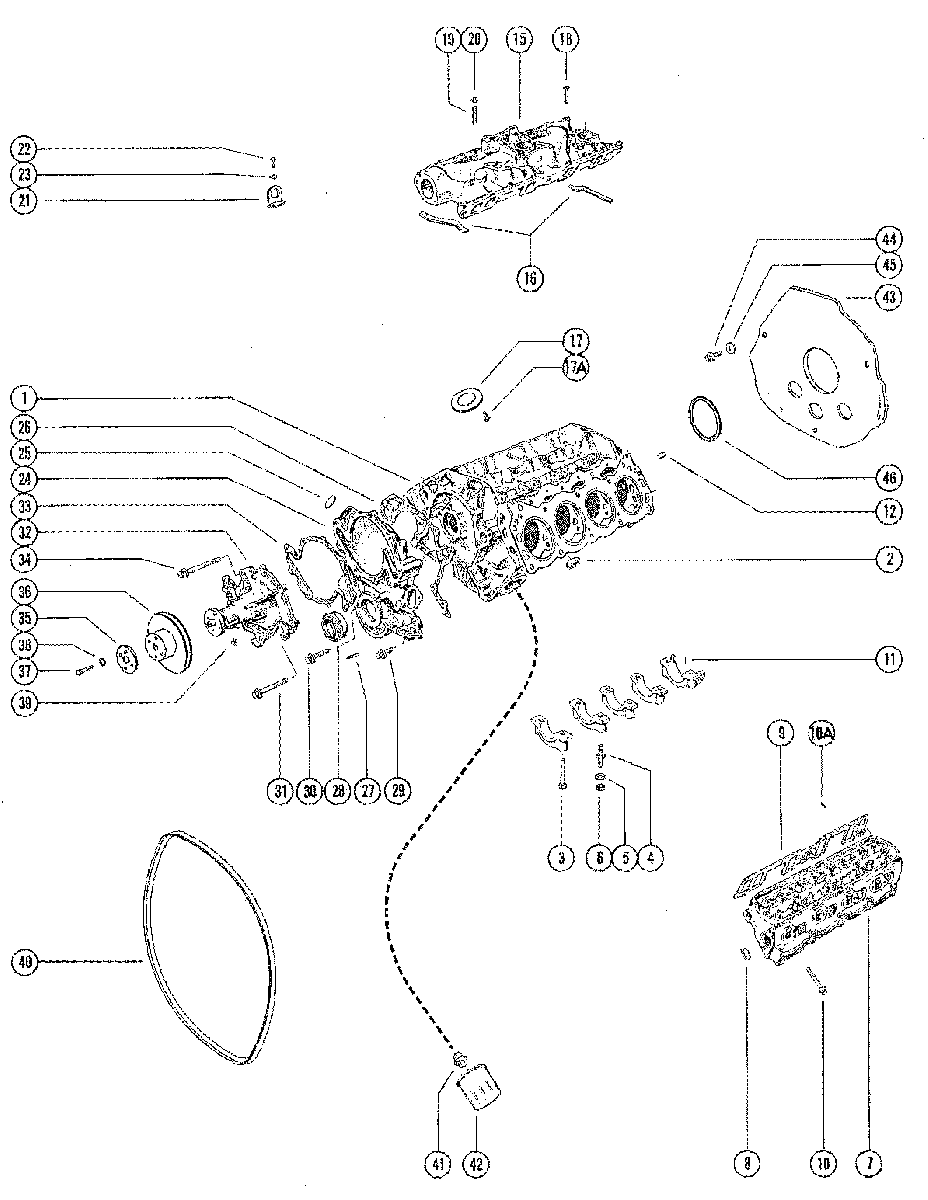

CYLINDER BLOCK, CYLINDER HEAD AND INTAKE MANIFOLD для Mercruiser - 225 (4 BBL.) FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
1853-4056 CYLINDER BLOCK ASSEMBLY (INCLUDES BEARING CAPS)CYLINDER BLOCK ASSEMBLY (INCLUDES BEARING CAPS)
-
219-56102 PLUG, EXPANSION - CYLINDER BLOCK (1 1/2")PLUG, EXPANSION - CYLINDER BLOCK (1 1/2")
-
219-45670 PLUG, CUP - OIL PASSAGE AND MAIN OIL GALLERY (1/2")PLUG, CUP - OIL PASSAGE AND MAIN OIL GALLERY (1/2")
-
222-32561 PLUG, MAIN GALLERY (1/4-18 PIPE)PLUG, MAIN GALLERY (1/4-18 PIPE)
-
219-60668 PLUG, EXPANSION - CYLINDER BLOCK (3/4")PLUG, EXPANSION - CYLINDER BLOCK (3/4")
-
222-63028 PLUG, CLEAN OUT (3/4-14 PIPE)PLUG, CLEAN OUT (3/4-14 PIPE)
-
222-16951Q1 PETCOCK, WATER DRAIN - CYLINDER BACKPETCOCK, WATER DRAIN - CYLINDER BACK
-
222-88517A1 ADAPTOR, (STARBOARD) WATER DRAIN PETCOCKADAPTOR, (STARBOARD) WATER DRAIN PETCOCK
-
222-37682 ELBOW, (STARBOARD) WATER DRAIN PETCOCKELBOW, (STARBOARD) WATER DRAIN PETCOCK
-
310-56146 BOLT, BEARING CAP TO CYLINDER BLOCK (3 5/32")BOLT, BEARING CAP TO CYLINDER BLOCK (3 5/32")
-
416-56147 STUD, BEARING CAP TO CYLINDER BLOCK (OIL PUMP SCREEN)STUD, BEARING CAP TO CYLINDER BLOCK (OIL PUMP SCREEN)
-
513-56177 LOCKWASHER, OIL PUMP SCREEN STUDLOCKWASHER, OIL PUMP SCREEN STUD
-
611-32219 NUT, OIL PUMP SCREEN STUDNUT, OIL PUMP SCREEN STUD
-
7949-4057 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
819-56102 PLUG, EXPANSION - CYLINDER HEAD (1 1/2")PLUG, EXPANSION - CYLINDER HEAD (1 1/2")
-
927-75647 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1010-56112 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2 1/4")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2 1/4")
-
1010-56113 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (5 7/8")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (5 7/8")
-
10A17-60670 PIN, DOWEL - CYLINDER HEAD TO CYLINDER BLOCKPIN, DOWEL - CYLINDER HEAD TO CYLINDER BLOCK
-
1117-56139 PIN, REAR BEARING CAP - REAR SEAL RETAININGPIN, REAR BEARING CAP - REAR SEAL RETAINING
-
1217-56151 PIN, DOWEL - CYLINDER BLOCK TO FLYWHEEL HSG. (1")PIN, DOWEL - CYLINDER BLOCK TO FLYWHEEL HSG. (1")
-
1556887 INTAKE MANIFOLDINTAKE MANIFOLD
-
1519-60722 PLUG, INTAKE MANIFOLDPLUG, INTAKE MANIFOLD
-
1627-73042 GASKET SET, INTAKE MANIFOLDGASKET SET, INTAKE MANIFOLD
-
1756163 BAFFLE, INTAKE MANIFOLDBAFFLE, INTAKE MANIFOLD
-
17A10-60707 SCREW, BAFFLE TO INTAKE MANIFOLDSCREW, BAFFLE TO INTAKE MANIFOLD
-
1810-58261 BOLT, INTAKE MANIFOLD TO CYLINDER HEAD (2")BOLT, INTAKE MANIFOLD TO CYLINDER HEAD (2")
-
1916-58262 STUD, INTAKE MANIFOLD TO CYLINDER HEAD (2 3/8")STUD, INTAKE MANIFOLD TO CYLINDER HEAD (2 3/8")
-
2011-58263 NUT, INTAKE MANIFOLD STUD4NUT, INTAKE MANIFOLD STUD4
-
2154-54555 LIFTING EYE, INTAKE MANIFOLDLIFTING EYE, INTAKE MANIFOLD
-
2210-824941 SCREW, LIFTING EYE TO INTAKE MANIFOLD (5/8")SCREW, LIFTING EYE TO INTAKE MANIFOLD (5/8")
-
2210-35386 SCREW, LIFTING EYE TO INTAKE MANIFOLD (1")-MC 225-SSCREW, LIFTING EYE TO INTAKE MANIFOLD (1")-MC 225-S
-
2313-39107 LOCKWASHER, LIFTING EYE SCREW (STERN DRIVE)LOCKWASHER, LIFTING EYE SCREW (STERN DRIVE)
-
2312-34437 WASHER, LIFTING EYE SCREW (INBOARD)WASHER, LIFTING EYE SCREW (INBOARD)
-
2456103 COVER, TIMINGCOVER, TIMING
-
2519-21688 WELCH PLUG, TIMING COVERWELCH PLUG, TIMING COVER
-
2627-56108 GASKET, TIMING COVERGASKET, TIMING COVER
-
2756109 POINTER, TIMING COVERPOINTER, TIMING COVER
-
2826-56866 OIL SEAL, TIMING COVER (LEFT HAND CRANKSHAFT ROTATION)OIL SEAL, TIMING COVER (LEFT HAND CRANKSHAFT ROTATION)
-
2826-56867 OIL SEAL, TIMING COVER (RIGHT HAND CRANKSHAFT ROTATION)OIL SEAL, TIMING COVER (RIGHT HAND CRANKSHAFT ROTATION)
-
2910-55511 SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")
-
2910-28782 SCREW, TIMING COVER TO CYLINDER BLOCK (7/8")SCREW, TIMING COVER TO CYLINDER BLOCK (7/8")
-
3010-815549 SCREW, TIMING COVER TO CYLINDER BLOCK (2")SCREW, TIMING COVER TO CYLINDER BLOCK (2")
-
3110-52743 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (3 3/4")SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (3 3/4")
-
3110-55300 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (5 1/4")SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (5 1/4")
-
32883885 WATER PUMP ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)WATER PUMP ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
-
32883885 WATER PUMP ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)1WATER PUMP ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION)1
-
3327-56880 GASKET, WATER PUMPGASKET, WATER PUMP
-
3410-73657 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (1 1/2")SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (1 1/2")
-
3410-73657 SCREW, WATE PUMP AND TIMING COVER TO CYLINDER BLOCK (2 3/4")SCREW, WATE PUMP AND TIMING COVER TO CYLINDER BLOCK (2 3/4")
-
3410-22698 SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (1 3/4")SCREW, WATER PUMP AND TIMING COVER TO CYLINDER BLOCK (1 3/4")
-
3558265 REINFORCEMENT, WATER PUMP PULLEYREINFORCEMENT, WATER PUMP PULLEY
-
3656881 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
3710-54630 SCREW, PULLEY TO WATER PUMP (5/8")SCREW, PULLEY TO WATER PUMP (5/8")
-
3813-39107 LOCKWASHER, PULLEY SCREWLOCKWASHER, PULLEY SCREW
-
3922-36373 PLUG, PIPE - WATER PUMP (3/8-14)PLUG, PIPE - WATER PUMP (3/8-14)
-
4057-93658Q BELT, DRIVE - ALTERNATOR AND WATER PUMPBELT, DRIVE - ALTERNATOR AND WATER PUMP
-
4122-56876 CONNECTOR, OIL FILTER TO CYLINDER BLOCKCONNECTOR, OIL FILTER TO CYLINDER BLOCK
-
4235-8M0116378 OIL FILTEROIL FILTER
-
4363006 PLATE, COVER-REAR MC 11-TRPLATE, COVER-REAR MC 11-TR
-
4410-25299 SCREW, COVER PLATE TO TRANSMISSION MC 11-TRSCREW, COVER PLATE TO TRANSMISSION MC 11-TR
-
4513-39107 LOCKWASHER, COVER PLATE SCREW MC 11-TRLOCKWASHER, COVER PLATE SCREW MC 11-TR
-
4627-56152 SEAL, REAR COVER PLATE MC 11-TRSEAL, REAR COVER PLATE MC 11-TR
