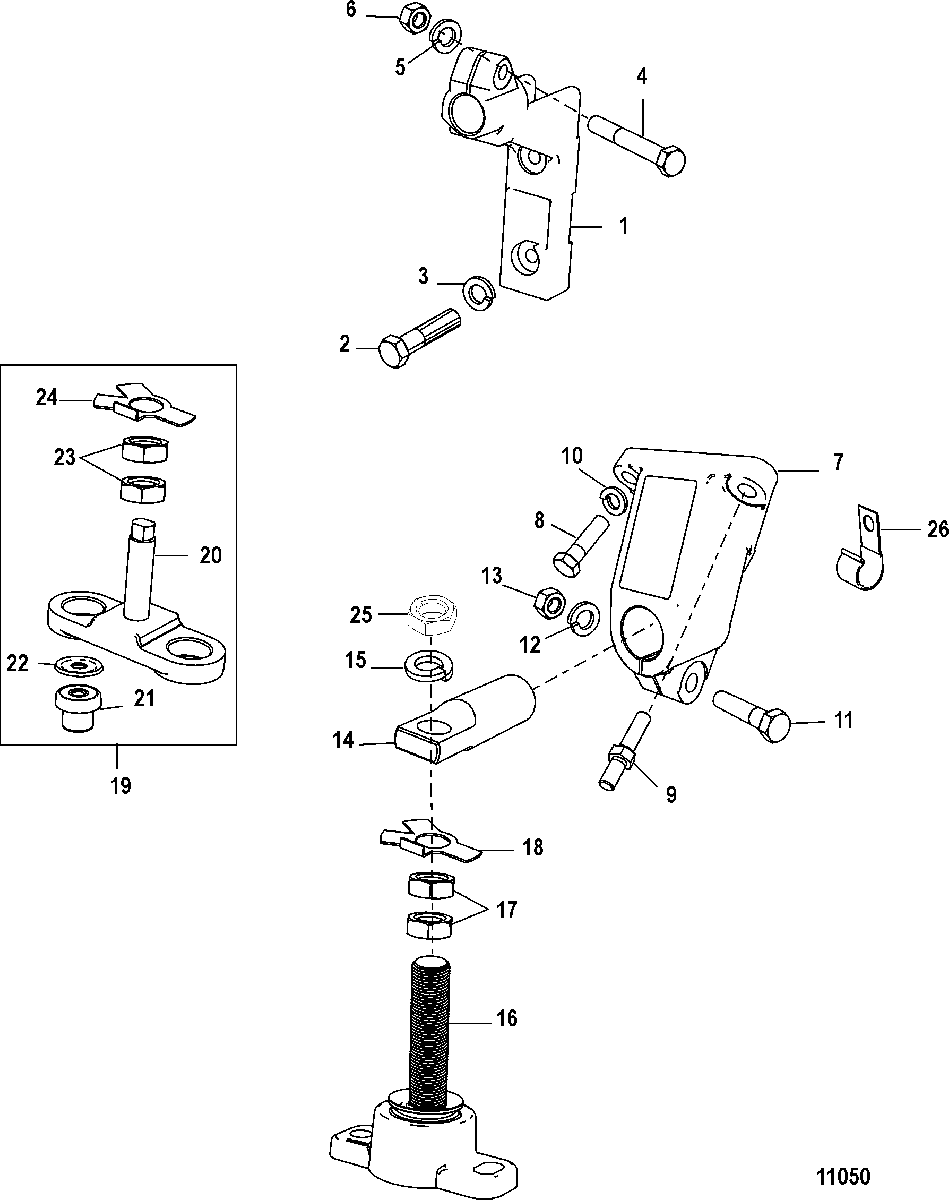

Transmission and Engine Mounting для Mercruiser - MX 6.2L MPI SKI 0M317000 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    805597A1 BRACKET ASSEMBLY, Rear
    BRACKET ASSEMBLY, Rear
  • 2
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 2
    10-91903 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    71128A2 BRACKET
    BRACKET
  • 8
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 9
    16-8M2004610 STUD, (.375-16 x 2.130)
    Starboard
    STUD, (.375-16 x 2.130)
    Starboard
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 12
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 13
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 14
    8066985 TRUNNION
    TRUNNION
  • 15
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 16
    66284A2 BASE ASSEMBLY, Engine End
    BASE ASSEMBLY, Engine End
  • 17
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 18
    14-66658 TAB WASHER
    TAB WASHER
  • 19
    816326A2 BASE ASSEMBLY, Transmission End
    BASE ASSEMBLY, Transmission End
  • 20
    16-8M0022149 STUD, (.750-16 x Special)
    STUD, (.750-16 x Special)
  • 21
    47656 MOUNT
    MOUNT
  • 22
    12-48611 WASHER
    WASHER
  • 23
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 24
    14-66658 TAB WASHER
    TAB WASHER
  • 25
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 26
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
