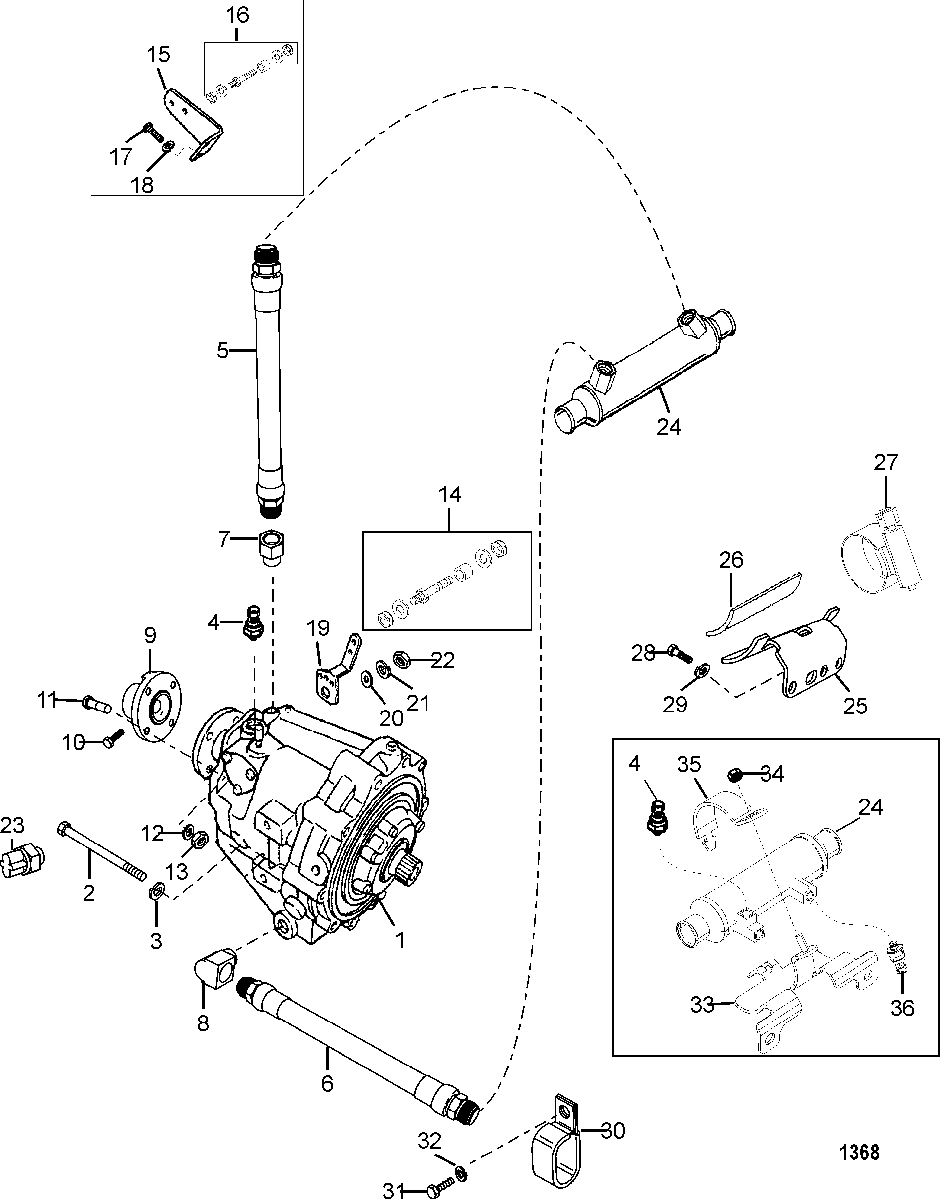

Transmission and Related Parts(BORG-WARNER 71C &72C) для Mercruiser - MX 6.2L MPI MIE 0W690000 THRU 1A089999

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION ASSEMBLY
    (71C)(1.1:1)
    TRANSMISSION ASSEMBLY
    (71C)(1.1:1)
  • 1
    47810A19 TRANSMISSION
    (72C)(1.1:1)
    TRANSMISSION
    (72C)(1.1:1)
  • 1
    47811A7 TRANSMISSION
    (72C)(1.5:1)
    TRANSMISSION
    (72C)(1.5:1)
  • 1
    60961A6 TRANSMISSION
    (72C V-Drive)(2.5:1) Left Hand Rotation
    TRANSMISSION
    (72C V-Drive)(2.5:1) Left Hand Rotation
  • 1
    60961A8 TRANSMISSION
    (72C V-Drive)(2.5:1) Right Hand Rotation
    TRANSMISSION
    (72C V-Drive)(2.5:1) Right Hand Rotation
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 5
    32-8054782 HOSE, (23.00 Inches), Oil
    In Line Transmission
    HOSE, (23.00 Inches), Oil
    In Line Transmission
  • 5
    32-475169 HOSE ASSEMBLY, (37.00 Inches), Oil
    V-Drive Transmission
    HOSE ASSEMBLY, (37.00 Inches), Oil
    V-Drive Transmission
  • 6
    32-8054781 HOSE, (19.50), Oil
    In Line Transmission
    HOSE, (19.50), Oil
    In Line Transmission
  • 6
    32-4751613 HOSE, (49.00 Inches), Oil
    V-Drive Transmission
    HOSE, (49.00 Inches), Oil
    V-Drive Transmission
  • 7
    22-88517 FITTING, Reducing, Straight
    FITTING, Reducing, Straight
  • 7
    22-63835 ELBOW, 45 Degree
    ELBOW, 45 Degree
  • 8
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 9
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 9
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 9
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 9
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 9
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 10
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 11
    10-805159 SCREW, (.437-20 x 1.500)
    5 and 4 In. Flange
    SCREW, (.437-20 x 1.500)
    5 and 4 In. Flange
  • 12
    13-32993 LOCKWASHER, (.437)
    5 and 4 In. Flange
    LOCKWASHER, (.437)
    5 and 4 In. Flange
  • 13
    11-22024 NUT, (.437-14)
    5 and 4 In. Flange
    NUT, (.437-14)
    5 and 4 In. Flange
  • 14
    16-97477A3 STUD KIT
    STUD KIT
  • 15
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 16
    16-97477A3 STUD KIT
    STUD KIT
  • 17
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    43325 LEVER
    LEVER
  • 20
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 21
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 22
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 23
    47613 SWITCH, Neutral Safety
    SWITCH, Neutral Safety
  • 24
    863842T02 COOLER, Transmission Oil
    (In Line 71C and 72C 1.1:1)
    COOLER, Transmission Oil
    (In Line 71C and 72C 1.1:1)
  • 24
    863832T01 COOLER, Transmission Oil
    (72C 1.5:1 and V-Drive)
    COOLER, Transmission Oil
    (72C 1.5:1 and V-Drive)
  • 25
    805546A2 BRACKET, Transmission Oil Cooler
    BRACKET, Transmission Oil Cooler
  • 26
    772233 PAD
    PAD
  • 27
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 28
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 29
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 30
    54-97521 CLAMP, Double Hose
    V-Drive Transmission
    CLAMP, Double Hose
    V-Drive Transmission
  • 31
    10-92913 SCREW, (.437-14 x .750)
    V-Drive Transmission
    SCREW, (.437-14 x .750)
    V-Drive Transmission
  • 32
    13-32993 LOCKWASHER, (.437)
    V-Drive Transmission
    LOCKWASHER, (.437)
    V-Drive Transmission
  • 33
    863850 BRACKET, Cooler
    BRACKET, Cooler
  • 34
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 35
    807445T CLAMP, Cooler
    CLAMP, Cooler
  • 36
    8M6000623 SENSOR, Pressure
    SENSOR, Pressure
