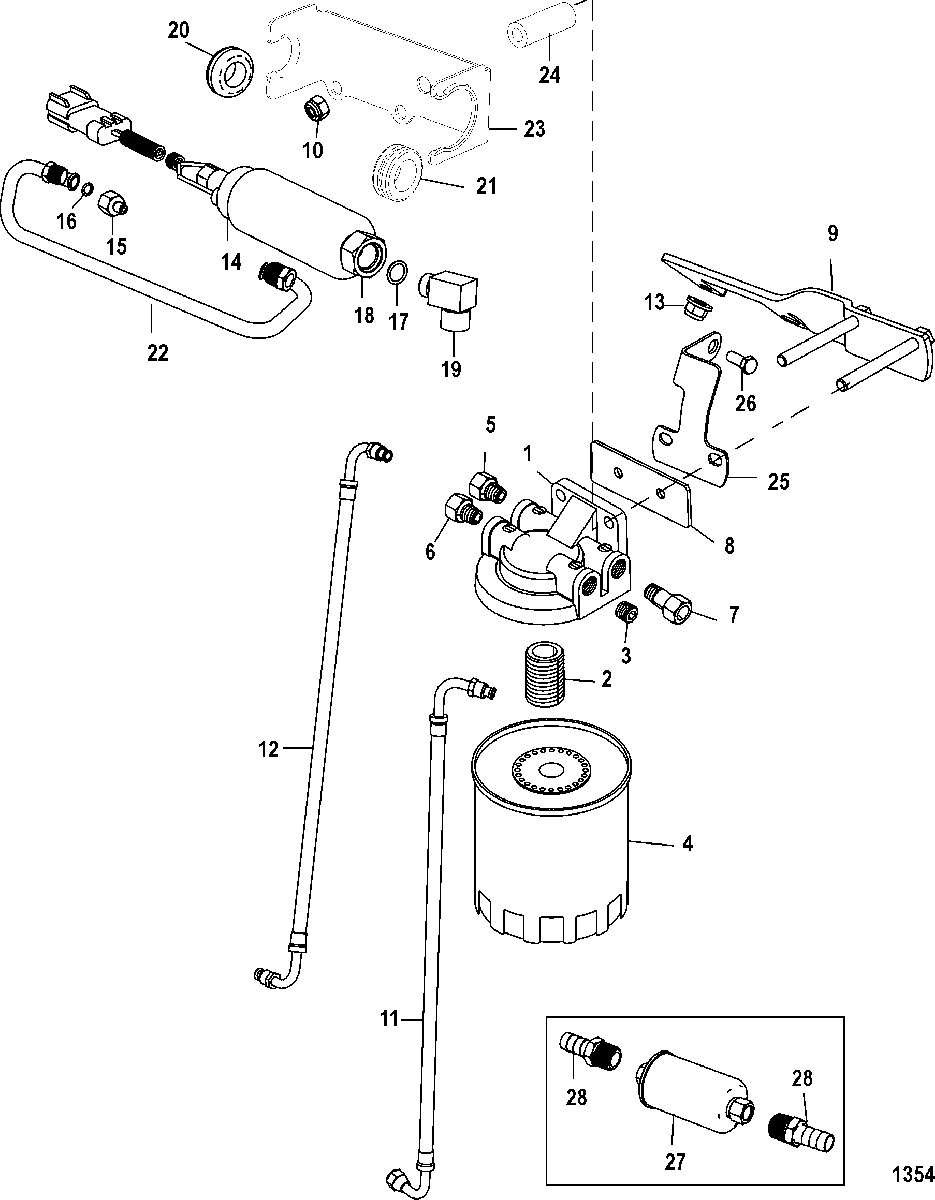

Boost Pump, 350 Magnum SN-0M311444/MX6.2L SN-0M311053 And Up для Mercruiser - MX 6.2L MPI MIE 0M310000 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    89876A3 BASE ASSEMBLY, Fuel Filter/Water Seperator
    BASE ASSEMBLY, Fuel Filter/Water Seperator
  • 2
    22-816133 FITTING
    FITTING
  • 3
    22-32561 PLUG, Pipe - Allen Head (.250-18)
    PLUG, Pipe - Allen Head (.250-18)
  • 4
    35-802893Q01 FILTER, Fuel/Water Separating - Quicksilver Brand
    (Quicksilver Brand)
    FILTER, Fuel/Water Separating - Quicksilver Brand
    (Quicksilver Brand)
  • 4
    35-802893T FILTER, Fuel/Water Separating - Mercury Brand
    (Mercury Presision Parts Brand)
    FILTER, Fuel/Water Separating - Mercury Brand
    (Mercury Presision Parts Brand)
  • 5
    22-33821 CONNECTOR
    CONNECTOR
  • 6
    22-808003 CONNECTOR
    CONNECTOR
  • 7
    22-807958 FITTING, (1/4-18), Inlet
    FITTING, (1/4-18), Inlet
  • 8
    88641 INSULATOR, Back
    INSULATOR, Back
  • 9
    864484 BRACKET, Fuel Filter Base
    BRACKET, Fuel Filter Base
  • 10
    11-82670811 NUT, (.312-24)
    NUT, (.312-24)
  • 11
    32-8M0046000 LINE, Fuel, Fuel Pump To Filter
    LINE, Fuel, Fuel Pump To Filter
  • 12
    32-8M0045997 HOSE ASSEMBLY, Fuel Regulator To Filter
    HOSE ASSEMBLY, Fuel Regulator To Filter
  • 13
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 14
    861155A3 PUMP ASSEMBLY, Fuel, Fuel, Boost
    PUMP ASSEMBLY, Fuel, Fuel, Boost
  • 15
    22-805027 FITTING, Male To Inverted Flare (.375)
    FITTING, Male To Inverted Flare (.375)
  • 16
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 17
    25-805062 O-RING, (.530 x .082)
    O-RING, (.530 x .082)
  • 18
    NSS NOT SOLD SEPARATE, Fitting, Fuel Inlet
    NOT SOLD SEPARATE, Fitting, Fuel Inlet
  • 19
    22-863703 FITTING, (.625 x .250), Fuel Adaptor
    FITTING, (.625 x .250), Fuel Adaptor
  • 20
    25-817491 GROMMET, (.56 Inside Diameter)
    GROMMET, (.56 Inside Diameter)
  • 21
    25-13467 GROMMET, (.88 Inside Diameter)
    GROMMET, (.88 Inside Diameter)
  • 22
    32-863664 LINE, Fuel, Boost Pump To Fuel Filter
    LINE, Fuel, Boost Pump To Fuel Filter
  • 23
    863679 BRACKET, Fuel Boost Pump
    BRACKET, Fuel Boost Pump
  • 24
    23-864402 SPACER
    SPACER
  • 25
    864447 BRACKET, Fuel Filter Brace
    BRACKET, Fuel Filter Brace
  • 26
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 27
    35-864572 FILTER, Inline, Fuel
    FILTER, Inline, Fuel
  • 28
    22-47841 FITTING, (.375-18 x .500 )
    FITTING, (.375-18 x .500 )
