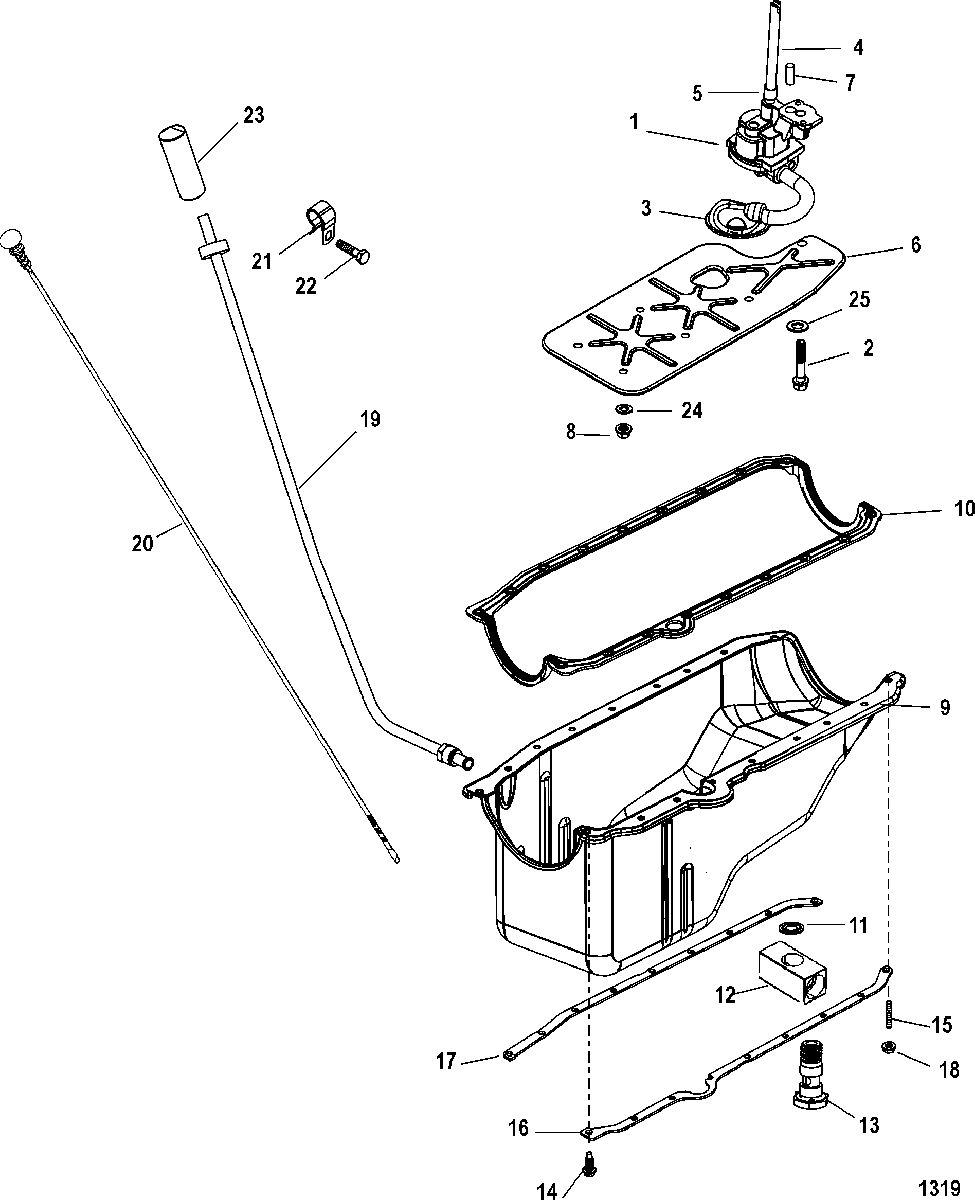

Oil Pan and Oil Pump для Mercruiser - MX 6.2L MPI HORIZON MIE 0M398395 THRU 0W389999
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick-UPSCREEN, Oil Pump Pick-UP
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel (1/4 In. Diameter), Alignment,Oil PumpPIN, Dowel (1/4 In. Diameter), Alignment,Oil Pump
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9889501T PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, DrainGASKET, Drain
-
12821504 FITTING, BanjoFITTING, Banjo
-
13807497 BOLT, (M12)BOLT, (M12)
-
1410-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1516-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1614257 REINFORCEMENT
(Port)REINFORCEMENT
(Port) -
1714256 REINFORCEMENT
(Starboard)REINFORCEMENT
(Starboard) -
1811-11971 NUT, (.312-18)NUT, (.312-18)
-
19805384T TUBE, DipstickTUBE, Dipstick
-
20861942T2 DIPSTICK
(Inline Transmission)DIPSTICK
(Inline Transmission) -
20861942T3 DIPSTICK
(V-Drive Transmission)DIPSTICK
(V-Drive Transmission) -
2154-8054441 CLIP, Dipsitck TubeCLIP, Dipsitck Tube
-
2210-8M0040582 SCREWSCREW
-
23861982 CAPCAP
-
2412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2512-27339 WASHERWASHER
