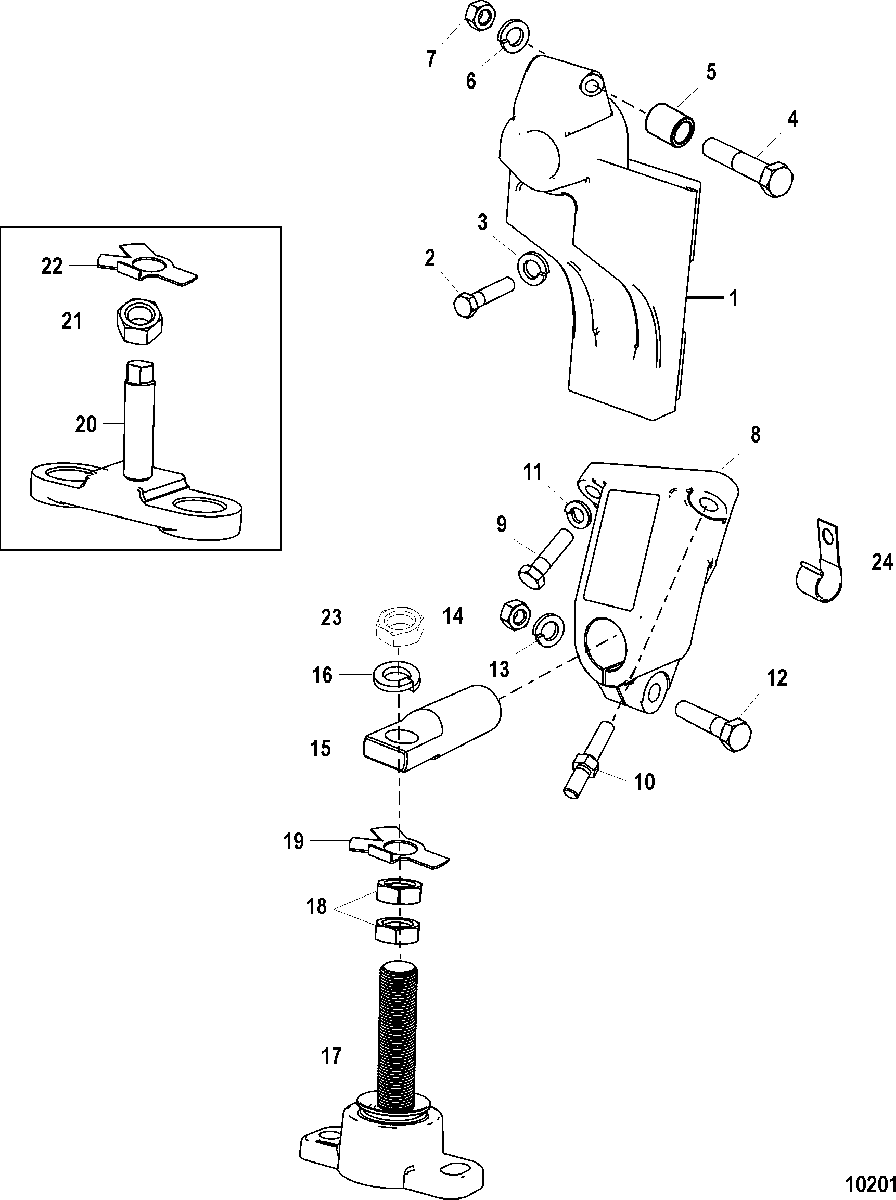

TRANSMISSION AND ENGINE MOUNTING(BORG-WARNER 71C & 72C) для Mercruiser - MX 6.2L MPI HORIZON MIE 0M317000 THRU 0M398394
-
№АртикулНазвание
-
166167A2 BRACKET, RearBRACKET, Rear
-
152158A20 BRACKET, Rear
(72C V-Drive & Remote V-Drive)BRACKET, Rear
(72C V-Drive & Remote V-Drive) -
210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
210-47462 SCREW, (.437-14 x 1.250)
(72C V-Drive & Remote V-Drive)SCREW, (.437-14 x 1.250)
(72C V-Drive & Remote V-Drive) -
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
410-47724 SCREW, (.437-14 x 3.00)
(72C V-Drive & Remote V-Drive)SCREW, (.437-14 x 3.00)
(72C V-Drive & Remote V-Drive) -
554-47528 CLAMP, Mount Adjusting
(72C V-Drive & Remote V-Drive)CLAMP, Mount Adjusting
(72C V-Drive & Remote V-Drive) -
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
711-82670814 NUT, (.437-14)NUT, (.437-14)
-
871128A2 BRACKET, FrontBRACKET, Front
-
910-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
1016-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
1113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1411-82670814 NUT, (.437-14)NUT, (.437-14)
-
1566166A4 TRUNNIONTRUNNION
-
1613-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1766284A2 BASE ASSEMBLY, Engine EndBASE ASSEMBLY, Engine End
-
1811-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1914-66658 TAB WASHER, TabTAB WASHER, Tab
-
20816326A2 BASE ASSEMBLY, Transmission EndBASE ASSEMBLY, Transmission End
-
2111-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2214-66658 TAB WASHER, TabTAB WASHER, Tab
-
2311-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2454-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
