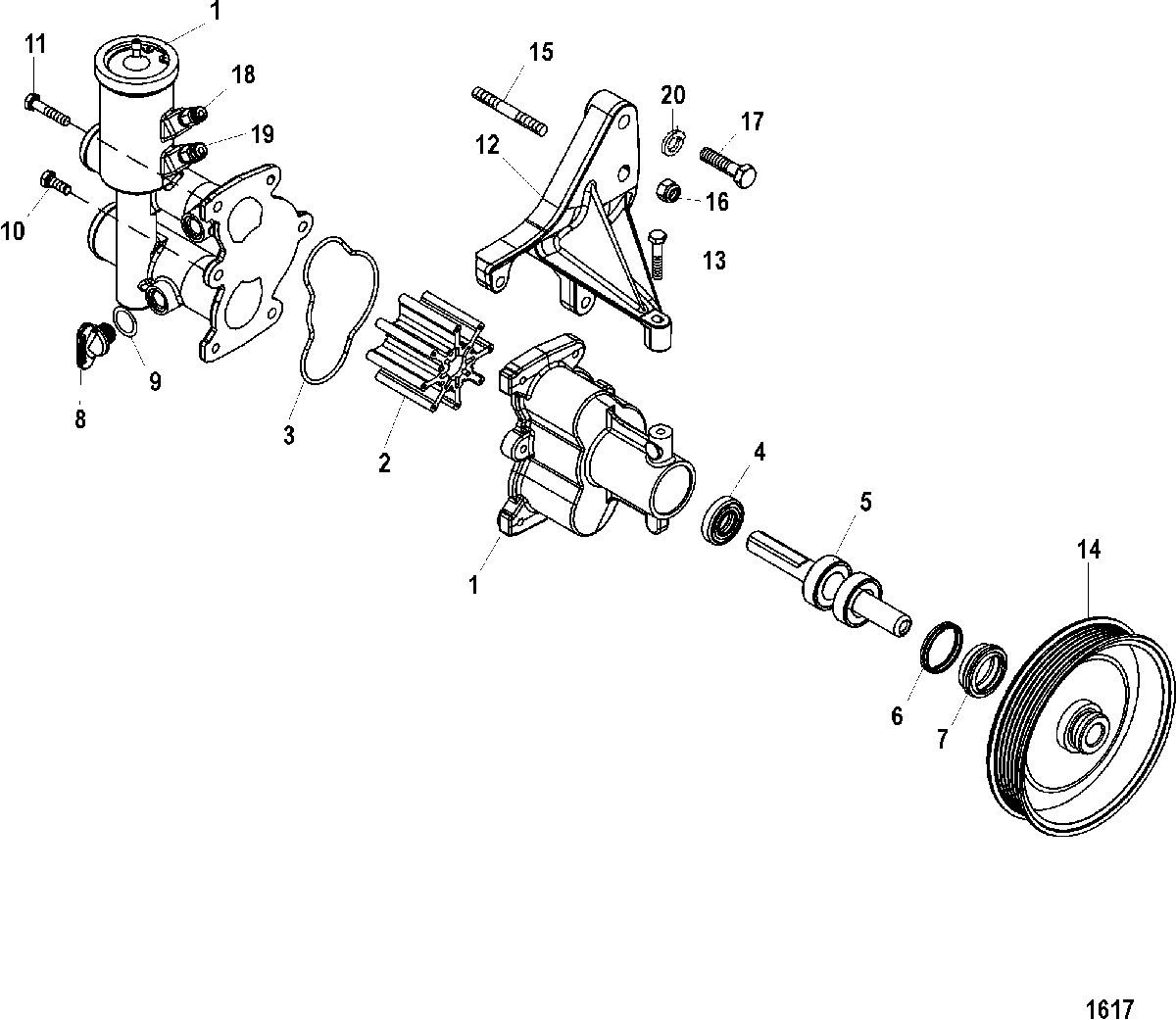

Sea Water Pump Assembly для Mercruiser - MX 6.2L MPI HORIZON MIE 0M310000 THRU 0M316999
-
№АртикулНазвание
-
146-8M0137216 PUMP ASSEMBLY
(With Out Air Fittings)PUMP ASSEMBLY
(With Out Air Fittings) -
146-8M0137217 PUMP ASSEMBLY
(With Air Fittings)PUMP ASSEMBLY
(With Air Fittings) -
247-8M0104229 IMPELLERIMPELLER
-
325-841807 O-RING, (3.500 x .103)O-RING, (3.500 x .103)
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
822-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
925-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1010-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1110-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
12865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1310-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
14862351T PULLEYPULLEY
-
1516-863853 STUDSTUD
-
1611-82671112 NUT, (.375-16)NUT, (.375-16)
-
1710-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1822-8M0082319 FITTING, Gray - Straight, Male Air
(5/32) (Component Of T-4 Pump)FITTING, Gray - Straight, Male Air
(5/32) (Component Of T-4 Pump) -
1922-8M0082320 FITTING, Orange - Straight, Male Air
(3/16) (Component Of T-4 Pump)FITTING, Orange - Straight, Male Air
(3/16) (Component Of T-4 Pump) -
2013-35048 LOCKWASHER, (.375), Split lockLOCKWASHER, (.375), Split lock
