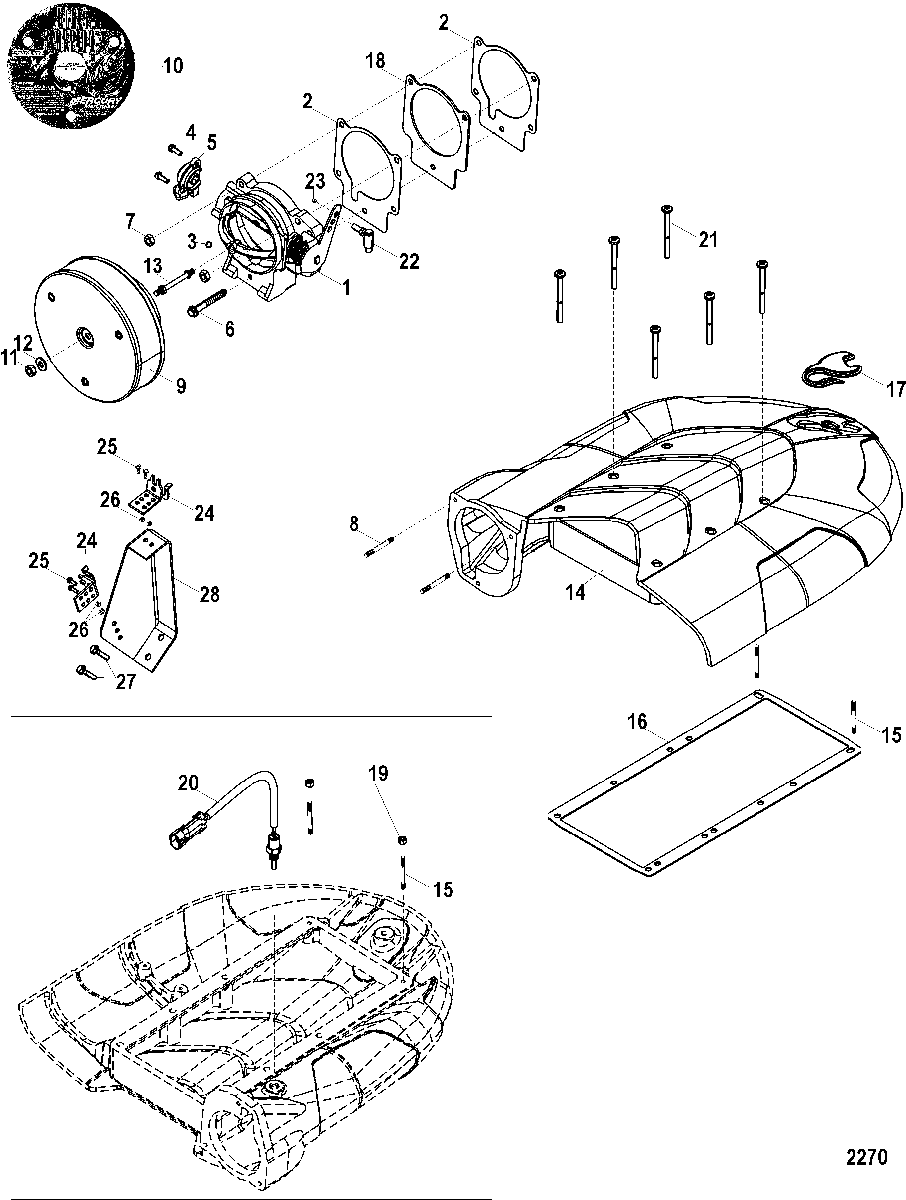

Throttle Body And Air Plenum для Mercruiser - BLACK SCORPION MX 6.2L MPI 0W690000 THRU 0W698432

  • №
    Артикул
    Название
  • 1
    861484A02 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    27-861449 GASKET, Throttle Body
    GASKET, Throttle Body
  • 3
    862999002 PLUG, Intake Air Control Port
    PLUG, Intake Air Control Port
  • 4
    10-803150 SCREW
    SCREW
  • 5
    803148 SENSOR
    SENSOR
  • 6
    10-861581 SCREW, (.250-20 x 2.250)
    SCREW, (.250-20 x 2.250)
  • 7
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    16-728091 STUD, (.250-20/.250-28 x 1.620)
    STUD, (.250-20/.250-28 x 1.620)
  • 9
    861444 FLAME ARRESTOR
    FLAME ARRESTOR
  • 10
    37-865290 DECAL, Flame Arrestor
    (Black Scorpion, 350 )
    DECAL, Flame Arrestor
    (Black Scorpion, 350 )
  • 10
    37-865291 DECAL, Flame Arrestor
    (Black Scorpion, 6.2L)
    DECAL, Flame Arrestor
    (Black Scorpion, 6.2L)
  • 11
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 12
    12-86400 WASHER
    WASHER
  • 13
    16-865460 STUD
    STUD
  • 14
    861334A08 PLENUM ASSEMBLY, Black, Air Intake
    PLENUM ASSEMBLY, Black, Air Intake
  • 15
    16-728091 STUD, (.250-20/.250-28 x 1.620)
    STUD, (.250-20/.250-28 x 1.620)
  • 16
    27-807670 GASKET, Air Plenum
    GASKET, Air Plenum
  • 17
    807895 EMBLEM, Scorpion (Black Rubber)
    EMBLEM, Scorpion (Black Rubber)
  • 17
    862960 EMBLEM, Scorpion (Chrome)
    EMBLEM, Scorpion (Chrome)
  • 18
    861450 ADAPTOR PLATE, Throttle Body
    ADAPTOR PLATE, Throttle Body
  • 19
    11-807082 NUT, (.250-28)
    NUT, (.250-28)
  • 20
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 21
    10-806953 SCREW, (.250-20 x 2.750)
    SCREW, (.250-20 x 2.750)
  • 22
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 23
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 24
    807485 BRACKET
    BRACKET
  • 25
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 26
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 27
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 28
    861073T02 BRACKET, Throttle Anchor
    BRACKET, Throttle Anchor
