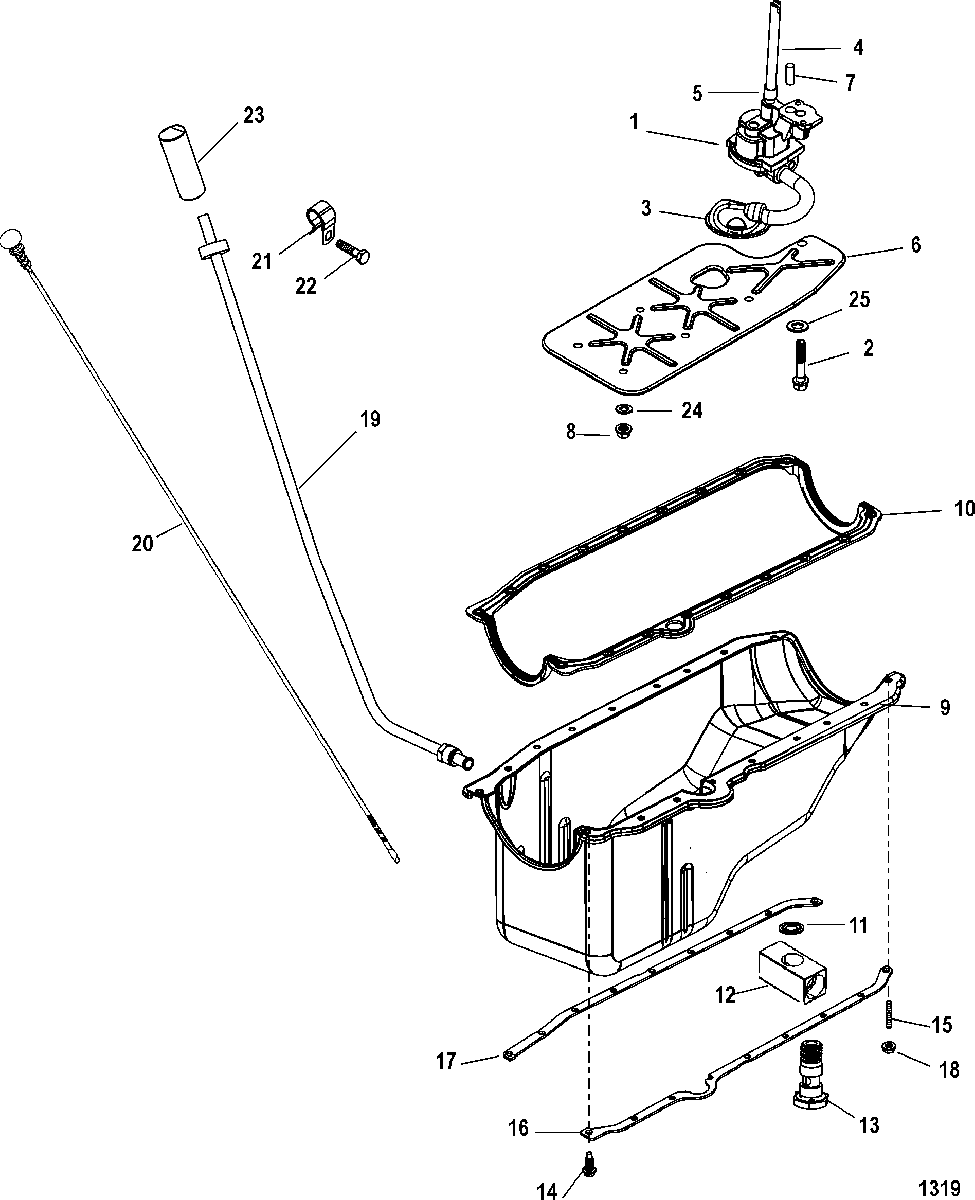

Oil Pan and Oil Pump для Mercruiser - 6.2L MPI MIE 1A090000 THRU 1A092168

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY, Oil, Oil
    PUMP ASSEMBLY, Oil, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    809909 SCREEN, Oil Pump Pick-Up
    SCREEN, Oil Pump Pick-Up
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    986021 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 7
    17-843378 PIN, Dowel, Oil Pump Alignment
    PIN, Dowel, Oil Pump Alignment
  • 8
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 9
    889501T PAN, Oil
    PAN, Oil
  • 10
    27-138651 GASKET, Oil Pan
    GASKET, Oil Pan
  • 11
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 12
    821504 FITTING, Banjo
    FITTING, Banjo
  • 13
    807497 BOLT, (M12)
    BOLT, (M12)
  • 14
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 15
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 16
    14257 REINFORCEMENT
    Port
    REINFORCEMENT
    Port
  • 17
    14256 REINFORCEMENT
    Starboard
    REINFORCEMENT
    Starboard
  • 18
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 19
    805384T TUBE, Dipstick
    TUBE, Dipstick
  • 20
    861942T2 DIPSTICK
    Inline Transmission
    DIPSTICK
    Inline Transmission
  • 20
    861942T3 DIPSTICK
    V-Drive Transmission
    DIPSTICK
    V-Drive Transmission
  • 21
    54-8054441 CLIP, Dipsitck Tube
    CLIP, Dipsitck Tube
  • 22
    10-8M0040582 SCREW
    SCREW
  • 23
    861982 CAP
    CAP
  • 24
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 25
    12-27339 WASHER
    WASHER
