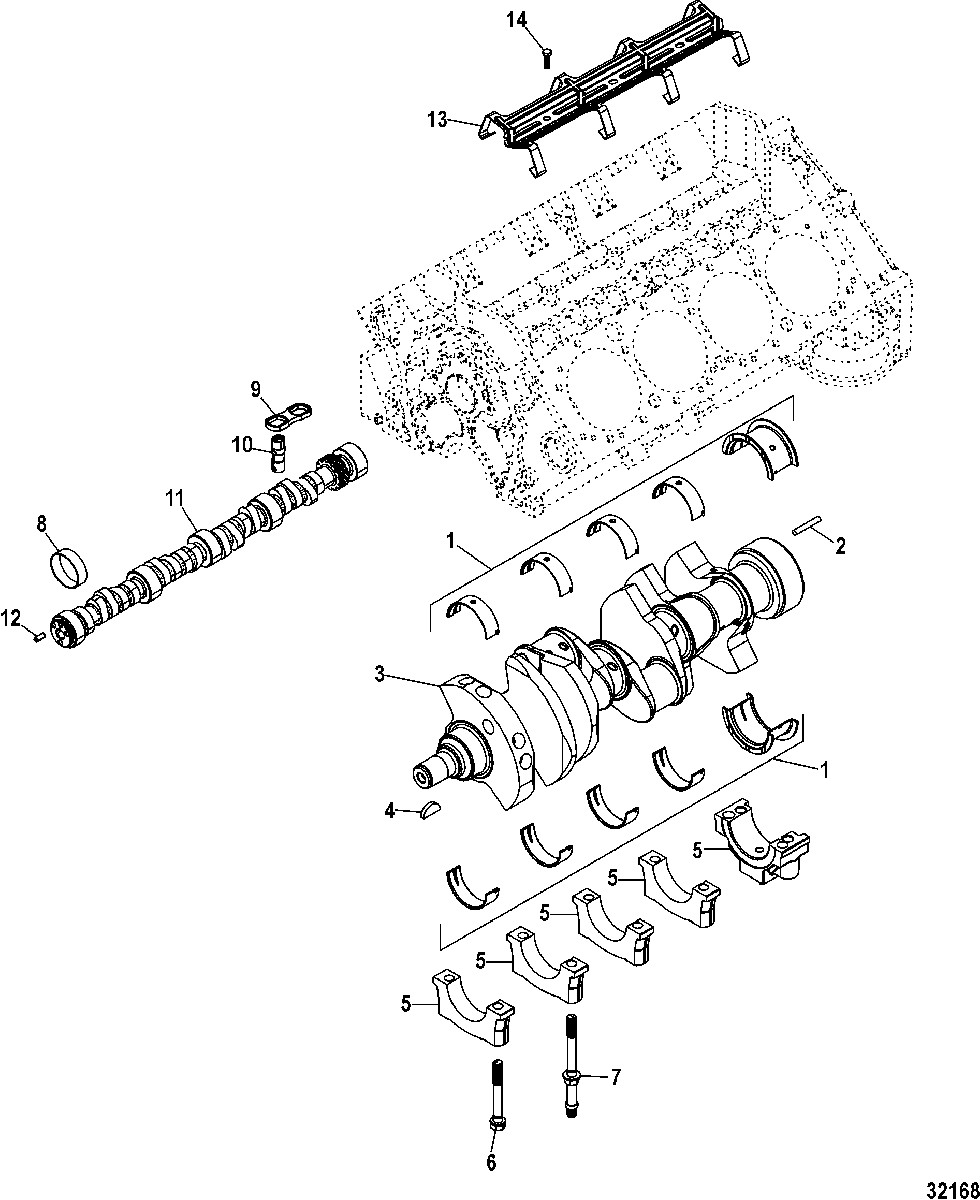

Cylinder Block, Camshaft And Crankshaft для Mercruiser - 5.7L SKI EC 1A090000 & Up

  • №
    Артикул
    Название
  • 1
    23-818465 BEARING SET, 5 Pair, Standard
    BEARING SET, 5 Pair, Standard
  • 1
    23-818466 BEARING SET, 5 Pair (.001) Undersize
    BEARING SET, 5 Pair (.001) Undersize
  • 1
    23-818467 BEARING SET, 5 Pair (.010) Undersize
    BEARING SET, 5 Pair (.010) Undersize
  • 1
    23-818468 BEARING SET, 5 Pair (.020) Undersize
    BEARING SET, 5 Pair (.020) Undersize
  • 2
    17-43504 PIN, Dowel
    PIN, Dowel
  • 3
    429-8M0054508 CRANKSHAFT
    CRANKSHAFT
  • 4
    28-34466 KEY, Crankshaft
    KEY, Crankshaft
  • 5
    NSS NOT SOLD SEPARATE, Cap, Crankshaft Bearing
    NOT SOLD SEPARATE, Cap, Crankshaft Bearing
  • 6
    10-8625671 SCREW, Crankshaft Bearing Cap
    SCREW, Crankshaft Bearing Cap
  • 7
    16-850090 STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
    STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
  • 8
    23-85674 BEARING SET
    BEARING SET
  • 9
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 10
    17340T1 LIFTER, Roller
    LIFTER, Roller
  • 11
    431-811658 CAMSHAFT
    CAMSHAFT
  • 12
    17-843378 PIN, Dowel
    PIN, Dowel
  • 13
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 14
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
    RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable
