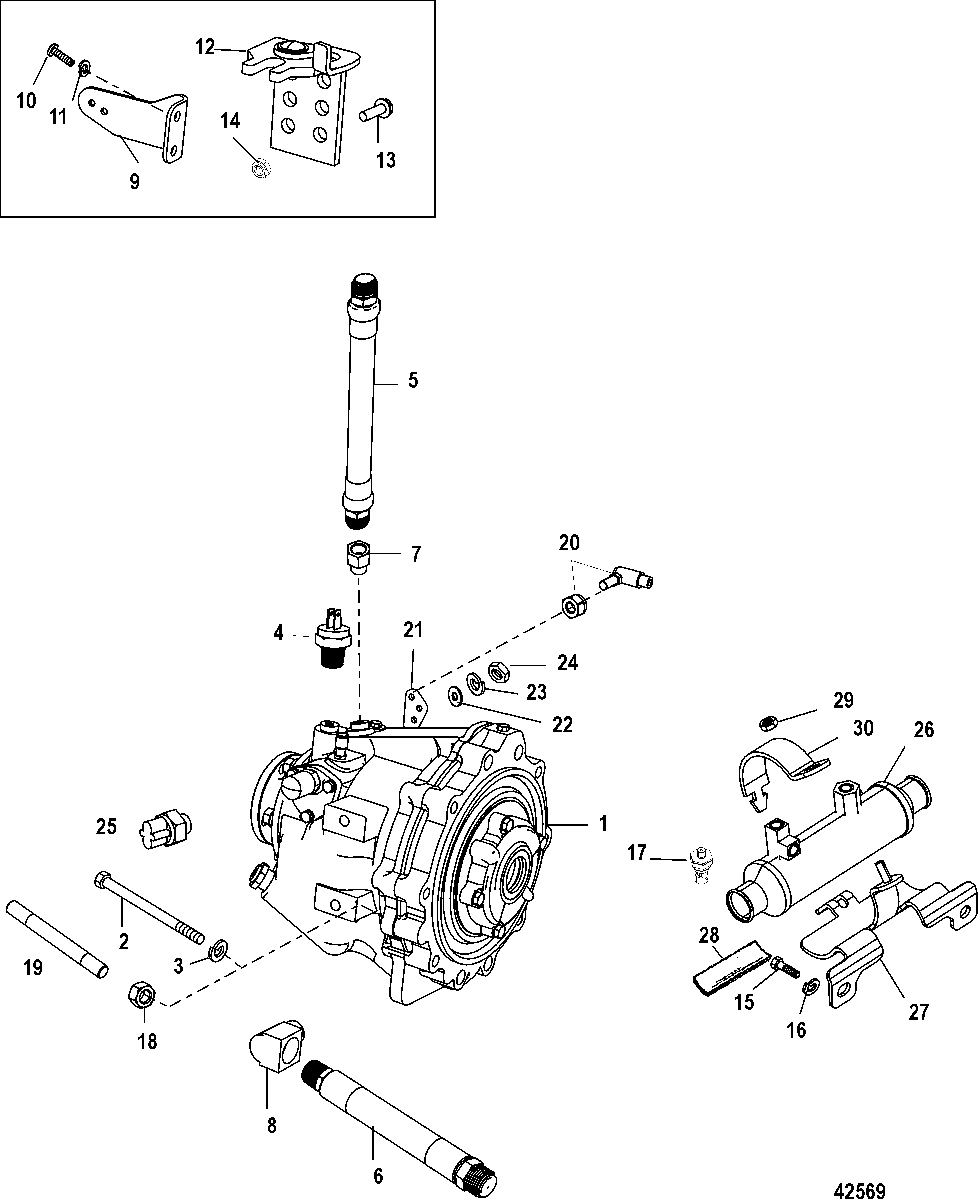

Transmission And Related Parts(Borg-Warner 71C) для Mercruiser - 5.7L MPI TOWSPORT WITH GEN III 1A091881 & Up

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION ASSEMBLY
    (71C)(1.1:1)
    TRANSMISSION ASSEMBLY
    (71C)(1.1:1)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    87-88031 SWITCH ASSEMBLY, Temperature
    SWITCH ASSEMBLY, Temperature
  • 5
    32-8054782 HOSE, (23.00 Inches), Oil
    (71C)
    HOSE, (23.00 Inches), Oil
    (71C)
  • 6
    32-8054781 HOSE, (19.50), Oil
    HOSE, (19.50), Oil
  • 7
    22-63835 ELBOW, 45 Degree
    (71C)
    ELBOW, 45 Degree
    (71C)
  • 8
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 9
    864362 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 10
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 11
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 12
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 13
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 14
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 15
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 16
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 17
    8M6000623 SENSOR, Pressure
    SENSOR, Pressure
  • 18
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 19
    16-57921 STUD, (.437-14/.437-20 x 4.00)
    STUD, (.437-14/.437-20 x 4.00)
  • 20
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 21
    43325 LEVER
    LEVER
  • 22
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 23
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 24
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 25
    47613 SWITCH, Neutral Safety
    SWITCH, Neutral Safety
  • 26
    863842T02 COOLER, Transmission Oil
    (71C)
    COOLER, Transmission Oil
    (71C)
  • 27
    863850 BRACKET, Cooler
    BRACKET, Cooler
  • 28
    772234 PAD
    PAD
  • 29
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 30
    807445T CLAMP, Cooler
    CLAMP, Cooler
