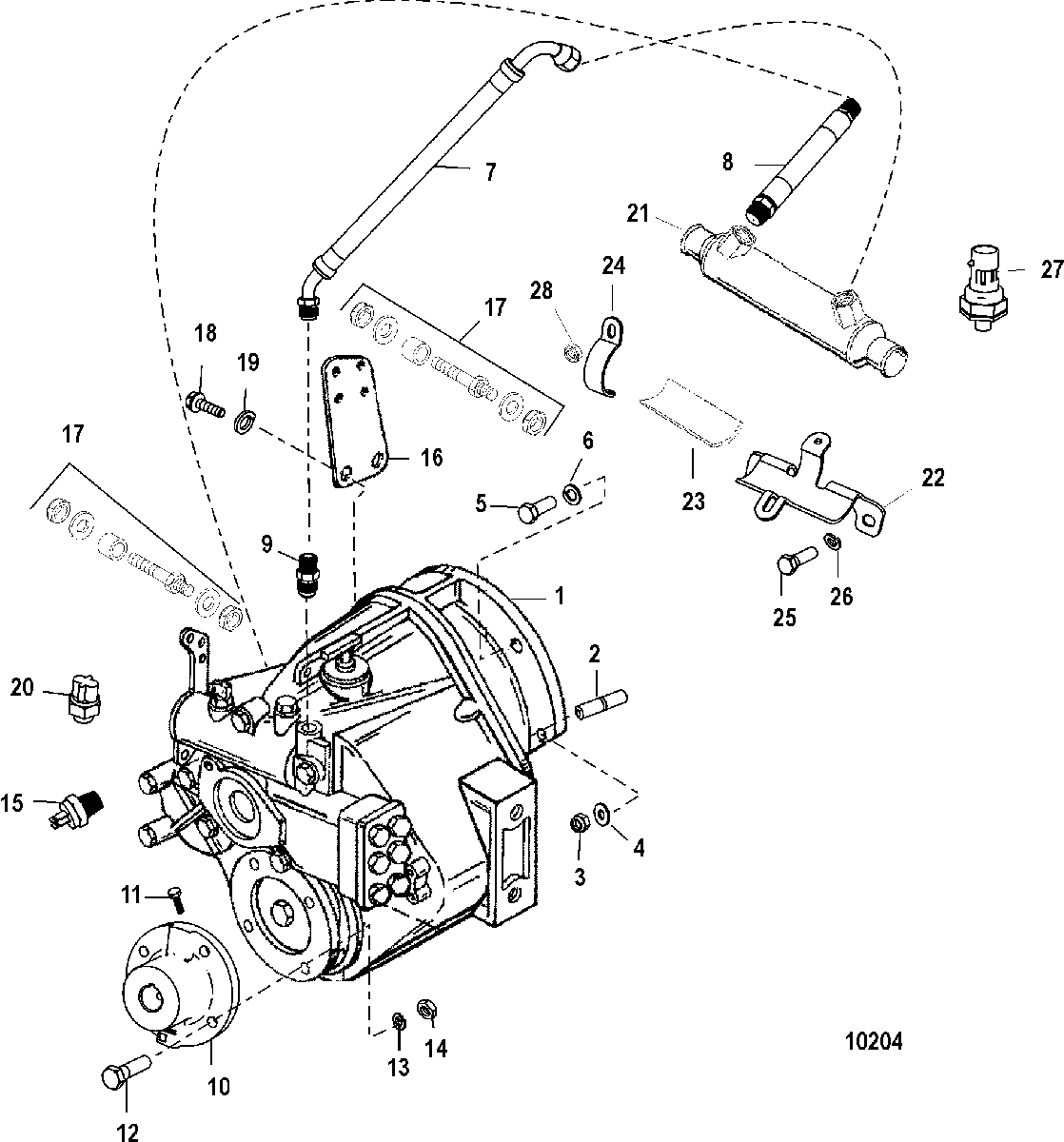

Transmission and Related Parts(BORG-WARNER 5000) для Mercruiser - 5.7L MPI MIE 1A092169 & Up

  • №
    Артикул
    Название
  • 1
    805495R57 TRANSMISSION
    (1.50:1) Down Angle
    TRANSMISSION
    (1.50:1) Down Angle
  • 1
    805495R58 TRANSMISSION
    (2.00:1) Down Angle
    TRANSMISSION
    (2.00:1) Down Angle
  • 1
    805495R59 TRANSMISSION
    (2.45:1) Down Angle
    TRANSMISSION
    (2.45:1) Down Angle
  • 1
    805495R60 TRANSMISSION
    (2.80:1) Down Angle
    TRANSMISSION
    (2.80:1) Down Angle
  • 1
    807481A5 TRANSMISSION
    (1.50:1) V-Drive
    TRANSMISSION
    (1.50:1) V-Drive
  • 1
    807481R56 TRANSMISSION
    (2.00:1) V-Drive
    TRANSMISSION
    (2.00:1) V-Drive
  • 1
    807481R57 TRANSMISSION
    (2.50:1) V-Drive
    TRANSMISSION
    (2.50:1) V-Drive
  • 2
    16-805259 STUD
    STUD
  • 3
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 4
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 5
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    32-807686 HOSE, Oil
    HOSE, Oil
  • 8
    32-8054781 HOSE, (19.50), Oil
    HOSE, (19.50), Oil
  • 9
    22-807272 FITTING, (.50) Inch Flare To (.375) Inch NPT
    FITTING, (.50) Inch Flare To (.375) Inch NPT
  • 10
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 10
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 10
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 10
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 10
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 11
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 11
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 12
    10-68101 SCREW, (.375-16 x 1.375)
    4 In. Flange
    SCREW, (.375-16 x 1.375)
    4 In. Flange
  • 12
    10-805159 SCREW, (.437-20 x 1.500)
    5 In. Flange
    SCREW, (.437-20 x 1.500)
    5 In. Flange
  • 13
    13-35048 LOCKWASHER, (.375)
    4 In. Flange
    LOCKWASHER, (.375)
    4 In. Flange
  • 13
    13-32993 LOCKWASHER, (.437)
    5 In. Flange
    LOCKWASHER, (.437)
    5 In. Flange
  • 14
    11-32219 NUT, (.375-16)
    4 In. Flange
    NUT, (.375-16)
    4 In. Flange
  • 14
    11-22024 NUT, (.437-14)
    5 In. Flange
    NUT, (.437-14)
    5 In. Flange
  • 15
    87-88031 SWITCH ASSEMBLY, Oil Temperature
    SWITCH ASSEMBLY, Oil Temperature
  • 16
    806238 BRACKET, Shift Linkage
    BRACKET, Shift Linkage
  • 17
    16-97477A3 STUD KIT
    STUD KIT
  • 18
    10-40001124 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 19
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 20
    47613 SWITCH, Neutral Safety
    SWITCH, Neutral Safety
  • 21
    863832T01 COOLER, Oil
    COOLER, Oil
  • 22
    863850 BRACKET, Transmission Oil Cooler
    BRACKET, Transmission Oil Cooler
  • 23
    772233 PAD
    PAD
  • 24
    807445T CLAMP
    CLAMP
  • 25
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 26
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 27
    8M6000623 SENSOR, Pressure
    SENSOR, Pressure
  • 28
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
