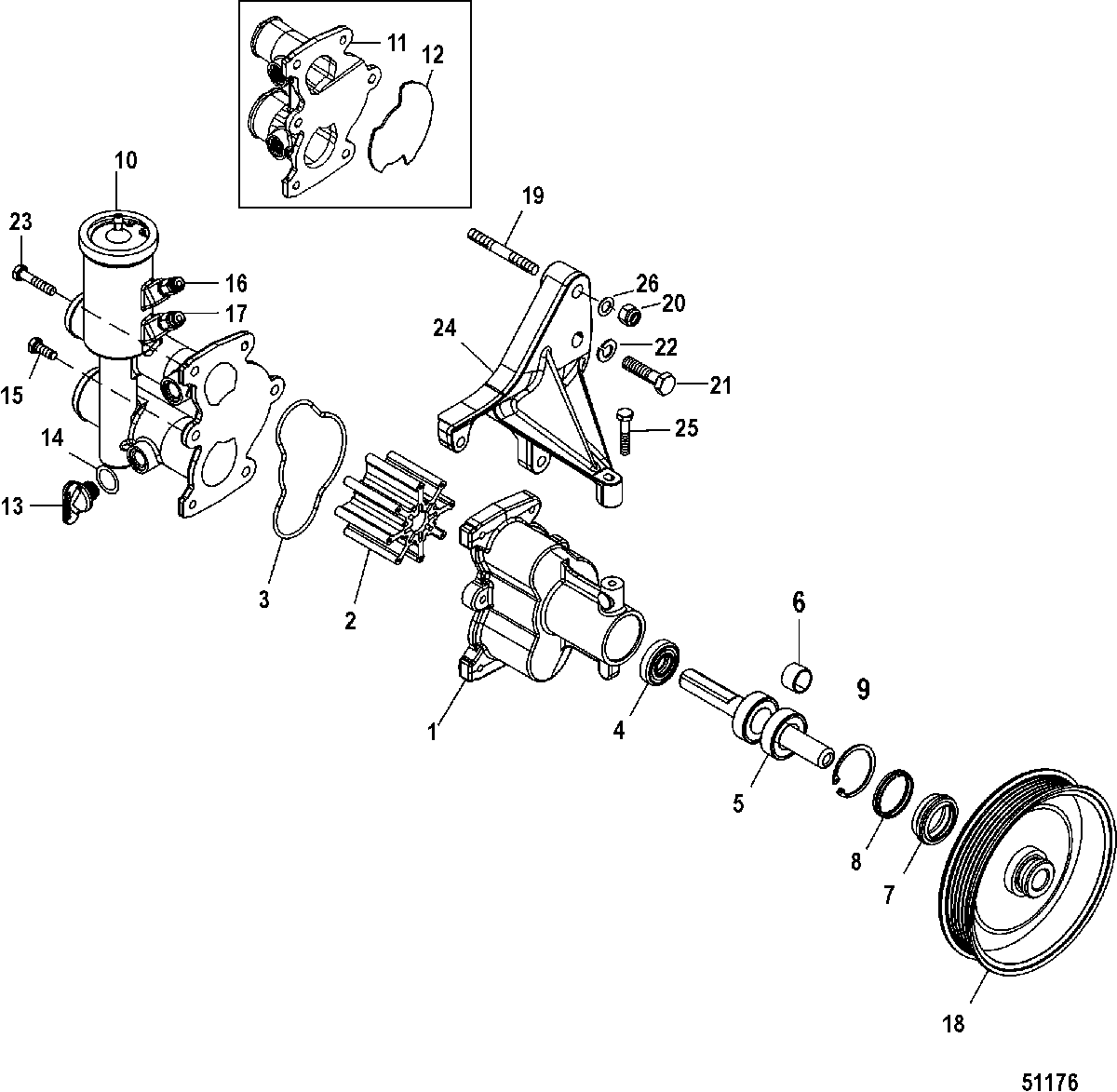

Sea Water Pump Assembly для Mercruiser - 5.7L MPI MIE EC 1A092169 & Up
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea Water
Without Air FittingsPUMP KIT, Sea Water
Without Air Fittings -
-46-8M0137217 PUMP KIT, Sea Water
With Air FittingsPUMP KIT, Sea Water
With Air Fittings -
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
38M2021987 O-RING, Formed, Also included with Reference 8 and 9O-RING, Formed, Also included with Reference 8 and 9
-
-8M0050018 DRIVESHAFT ASSEMBLY KITDRIVESHAFT ASSEMBLY KIT
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6NSS NOT SOLD SEPARATE, SPACER
SN# 1A092343 & UpNOT SOLD SEPARATE, SPACER
SN# 1A092343 & Up -
726-862040 SEAL, LipSEAL, Lip
-
8862039 TOLERANCE RING
SN# 1A092342 & BelowTOLERANCE RING
SN# 1A092342 & Below -
9NSS NOT SOLD SEPARATE, SNAP RING
SN# 1A092343 & UpNOT SOLD SEPARATE, SNAP RING
SN# 1A092343 & Up -
10863674A05 COVER KIT, Impeller Housing
With Air FittingsCOVER KIT, Impeller Housing
With Air Fittings -
11862776A01 COVER KIT, Impeller Housing
Without Air FittingsCOVER KIT, Impeller Housing
Without Air Fittings -
128M2014176 PLATE, WearPLATE, Wear
-
1322-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1425-26802 SEALSEAL
-
1510-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1622-8M0082319 FITTING, Gray - Straight, Male Air
(.1562) Component of 46-862914T11FITTING, Gray - Straight, Male Air
(.1562) Component of 46-862914T11 -
1722-8M0082320 FITTING, Orange - Straight, Male Air
(.1875) Component of 46-862914T11FITTING, Orange - Straight, Male Air
(.1875) Component of 46-862914T11 -
18862351T PULLEYPULLEY
-
1916-863853 STUDSTUD
-
2011-82671112 NUT, (.375-16)NUT, (.375-16)
-
2110-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2310-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
24865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
2510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2612-38622 WASHER, (.391 x 1.00 x .125)WASHER, (.391 x 1.00 x .125)
