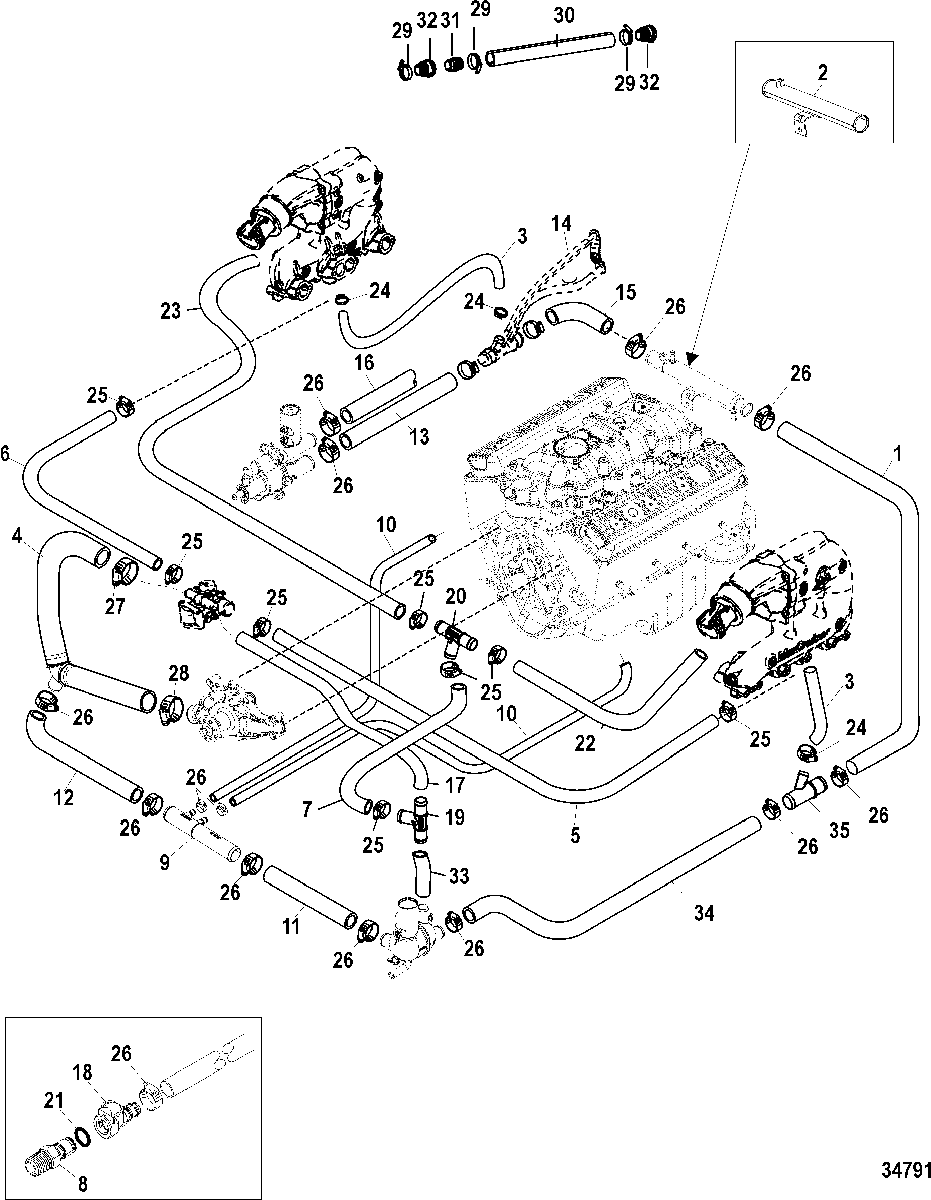

Standard Cooling System, V-DRIVE для Mercruiser - 5.7L MPI MIE EC 1A090000 THRU 1A092168

  • №
    Артикул
    Название
  • 1
    32-865255 HOSE, Cooler to Drain Fitting
    HOSE, Cooler to Drain Fitting
  • 2
    863841T TUBE, Water
    TUBE, Water
  • 3
    32-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
    (Port 9 Inches, Starboard 3.5 Inches)
    HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
    (Port 9 Inches, Starboard 3.5 Inches)
  • 4
    32-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
    HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
  • 5
    32-864393 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 6
    32-863459 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 7
    32-8M2013567 HOSE, Fitting to Fitting
    HOSE, Fitting to Fitting
  • 8
    22-862603 FITTING, Male Quick Connector, Threaded - Engine Block
    FITTING, Male Quick Connector, Threaded - Engine Block
  • 9
    22-864989A01 FITTING ASSEMBLY, Lower Distribution
    FITTING ASSEMBLY, Lower Distribution
  • 10
    32-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
    Port 23 Inches, Starboard 17 Inches
    HOSE, Cylinder Block Drain to Distribution Fitting
    Port 23 Inches, Starboard 17 Inches
  • 11
    32-863490 HOSE, Water Drain Accumulator to Distribution Fitting
    HOSE, Water Drain Accumulator to Distribution Fitting
  • 12
    32-865394 HOSE
    HOSE
  • 13
    32-8M2021656 HOSE, Sea Pump to Water Orifice
    3 Point Drain
    HOSE, Sea Pump to Water Orifice
    3 Point Drain
  • 13
    32-865234 HOSE, Sea Pump to Water Orifice
    Air Actuated Drain
    HOSE, Sea Pump to Water Orifice
    Air Actuated Drain
  • 15
    32-8M2021655 HOSE, Water Orifice to Power Steering Cooler
    HOSE, Water Orifice to Power Steering Cooler
  • 16
    32-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
    HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
  • 17
    32-8M2013565 HOSE, Tee Fitting to Thermostat Housing
    HOSE, Tee Fitting to Thermostat Housing
  • 18
    22-862225 FITTING, Pushlock - Block Drian Hose
    FITTING, Pushlock - Block Drian Hose
  • 19
    22-863478 FITTING, Tee
    FITTING, Tee
  • 20
    22-8M2014000 FITTING, Tee, Blue
    FITTING, Tee, Blue
  • 21
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 22
    32-8M2007295 HOSE, Fitting to Starboard Elbow
    HOSE, Fitting to Starboard Elbow
  • 23
    32-8M2007296 HOSE, Fitting to Port Elbow
    HOSE, Fitting to Port Elbow
  • 24
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 26
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 27
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 28
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 29
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 30
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 31
    22-865362 QUICK CONNECT, Transom Hose
    QUICK CONNECT, Transom Hose
  • 32
    22-865324 QUICK CONNECT, Transom Hose
    QUICK CONNECT, Transom Hose
  • 33
    32-8M0062614 HOSE, (48.00 Inches Bulk), Distribution Housing to Fitting
    (Cut to 12.5 Inches)
    HOSE, (48.00 Inches Bulk), Distribution Housing to Fitting
    (Cut to 12.5 Inches)
  • 34
    32-866331 HOSE, Distribution Housing to Drain Fitting
    HOSE, Distribution Housing to Drain Fitting
  • 35
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
