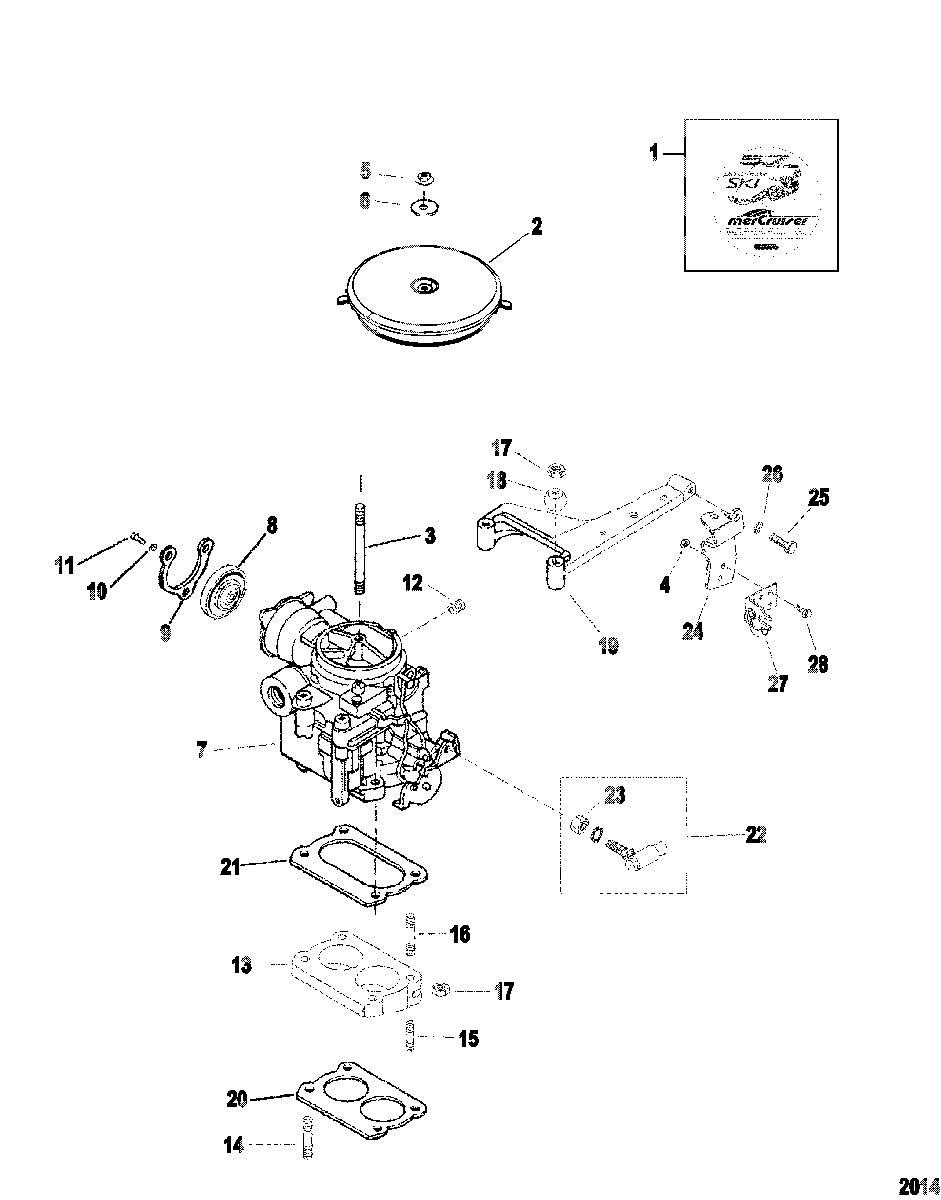

Carburator and Throttle Linkage для Mercruiser - 5.7L CARB SKI 0M317000 THRU 0W090899

№

Артикул

Название
1

37-8613771 DECAL

DECAL
2

863200 FLAME ARRESTOR

FLAME ARRESTOR
3

16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 Inch)

STUD, (.250-20/.250-28 x Special) (3 Inch)
4

11-826709106 NUT, (#10-32)

NUT, (#10-32)
5

11-8267139 NUT, (.250-28)

NUT, (.250-28)
6

12-86400 WASHER

WASHER
7

3310-864943A01 CARBURETOR ASSEMBLY
SN# 0M390810 & Below

CARBURETOR ASSEMBLY
SN# 0M390810 & Below
7

3310-864943A01 CARBURETOR ASSEMBLY
SN# 0M390811 & Up

CARBURETOR ASSEMBLY
SN# 0M390811 & Up
8

70125A02 COVER, Choke

COVER, Choke
9

53-805140 PLATE

PLATE
10

13-26995 LOCKWASHER, (#8) Stainless Steel

LOCKWASHER, (#8) Stainless Steel
11

10-33047 SCREW

SCREW
12

22-878089 PLUG, Pipe (.0625-27)

PLUG, Pipe (.0625-27)
13

807265A1 WEDGE

WEDGE
14

16-70237 STUD, (.312-18/.312-24 x 2.620)

STUD, (.312-18/.312-24 x 2.620)
15

16-63332 STUD, (.312 x 1.2812)

STUD, (.312 x 1.2812)
16

16-807975 STUD, (.312 x 2.370)

STUD, (.312 x 2.370)
17

11-862902 NUT, (.312-24)

NUT, (.312-24)
18

12-20084 WASHER, (.328 x .562 x .062)

WASHER, (.328 x .562 x .062)
19

805489T BRACKET

BRACKET
20

27-8079821 GASKET

GASKET
21

27-861246 GASKET

GASKET
22

807484 BALL JOINT ASSEMBLY, Quick Release

BALL JOINT ASSEMBLY, Quick Release
23

11-8267089 NUT, (.250-28)

NUT, (.250-28)
24

807494T BRACKET, Throttle

BRACKET, Throttle
25

10-36137 SCREW, (.250-28 x 1.00), Torx

SCREW, (.250-28 x 1.00), Torx
26

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel
27

807485T BRACKET ASSEMBLY, Morse

BRACKET ASSEMBLY, Morse
28

10-89766 SCREW, (#10-32 x .620) Stainless Steel

SCREW, (#10-32 x .620) Stainless Steel
-

27-861246A05 GASKET SET

GASKET SET
