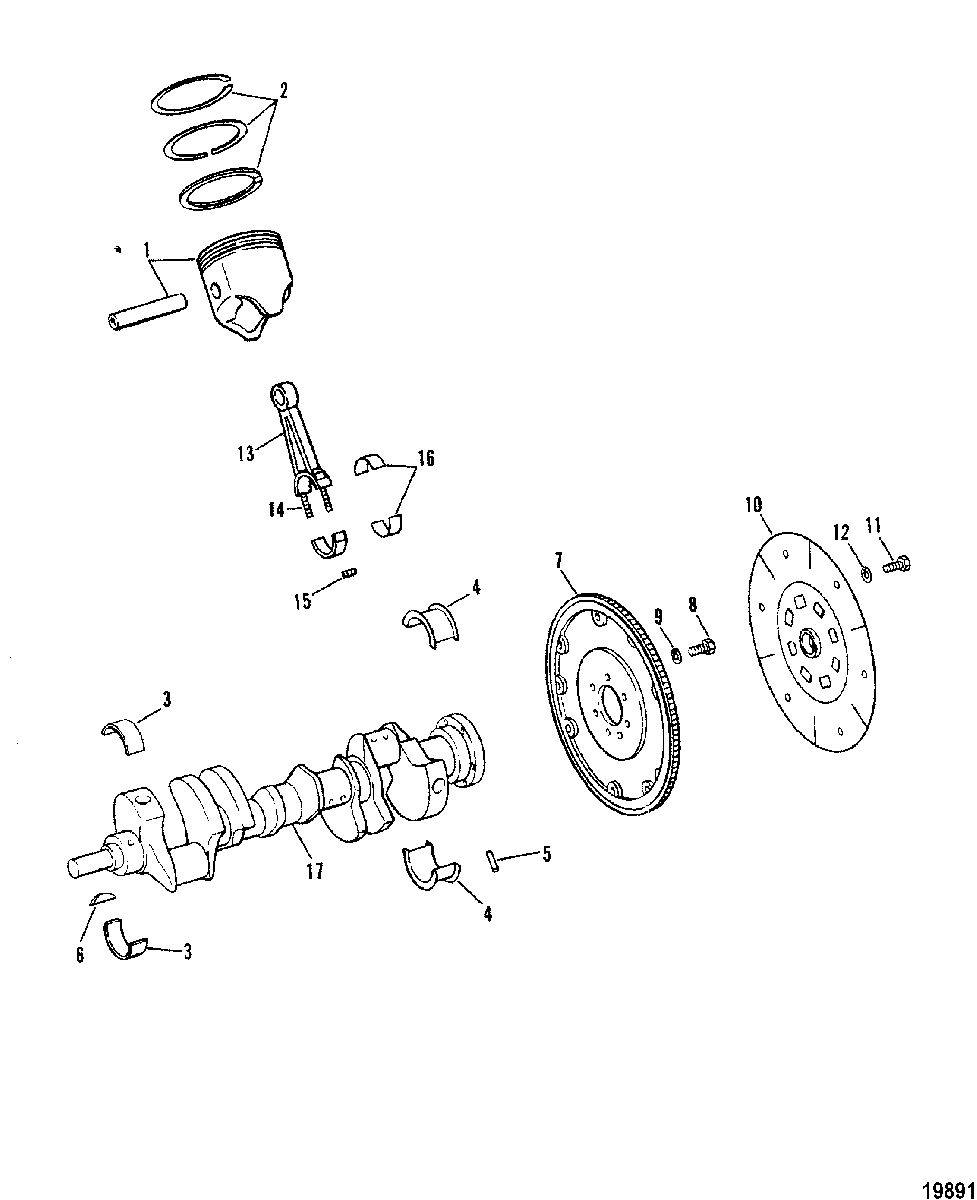

Crankshaft, Pistons and Connecting Rods для Mercruiser - 5.0L MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151

  • №
    Артикул
    Название
  • 1
    735-9716T1 PISTON ASSEMBLY (STD.)
    (230-5.0L)
    PISTON ASSEMBLY (STD.)
    (230-5.0L)
  • 1
    735-9715T1 PISTON ASSEMBLY (.030 O.S.)
    (230-5.0L)
    PISTON ASSEMBLY (.030 O.S.)
    (230-5.0L)
  • 1
    735-850097 PISTON ASSEMBLY (STD.)
    (260-5.7L)
    PISTON ASSEMBLY (STD.)
    (260-5.7L)
  • 1
    735-850098 PISTON ASSEMBLY (.030 O.S.)
    (260-5.7L)
    PISTON ASSEMBLY (.030 O.S.)
    (260-5.7L)
  • 2
    39-75609 RING, PISTON - 8 SETS (STANDARD)
    (230-5.0L)
    RING, PISTON - 8 SETS (STANDARD)
    (230-5.0L)
  • 2
    39-75981 RING, PISTON - 8 SETS (.030 O.S.)
    (230-5.0L)
    RING, PISTON - 8 SETS (.030 O.S.)
    (230-5.0L)
  • 2
    39-17464 RING SET, Piston (Standard)
    (260-5.7L)
    RING SET, Piston (Standard)
    (260-5.7L)
  • 2
    39-17465 RING, Piston (.030 O.S.)
    (260-5.7L)
    RING, Piston (.030 O.S.)
    (260-5.7L)
  • 3
    23-818465 BEARING, CRANKSHAFT (STANDARD)
    BEARING, CRANKSHAFT (STANDARD)
  • 3
    23-818466 BEARING, CRANKSHAFT MAIN (.001 USA)
    BEARING, CRANKSHAFT MAIN (.001 USA)
  • 3
    23-818467 BEARING, CRANKSHAFT MAIN (.010 USA)
    BEARING, CRANKSHAFT MAIN (.010 USA)
  • 3
    23-818468 BEARING, CRANKSHAFT MAIN (.020 USA)
    BEARING, CRANKSHAFT MAIN (.020 USA)
  • 4
    23-818465 BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING, CRANKSHAFT MAIN - REAR (.001 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.001 USA)
  • 4
    23-818467 BEARING, CRANKSHAFT MAIN - REAR (.010 USA)
    BEARING, CRANKSHAFT MAIN - REAR (.010 USA)
  • 4
    N.S.S. Not Sold Separate, Bearing Unit (.020 USA)(GM #3912036)
    Not Sold Separate, Bearing Unit (.020 USA)(GM #3912036)
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter), REAR BEARING CAP (1/4" DIA.)
    PIN, Dowel (1/4 In. Diameter), REAR BEARING CAP (1/4" DIA.)
  • 6
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 7
    200-8M0083286 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 9
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 10
    47608A1 DRIVEPLATE ASSEMBLY, FLYWHEEL
    DRIVEPLATE ASSEMBLY, FLYWHEEL
  • 11
    10-35091 SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
    SCREW, (.375-16 x 1.00), DRIVE PLATE TO FLYWHEEL
  • 12
    13-35048 LOCKWASHER, (.375), DRIVE PLATE SCREW
    LOCKWASHER, (.375), DRIVE PLATE SCREW
  • 13
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 14
    10-85802 SCREW, (.375-24 x Special), CONNECTING ROD CAP
    SCREW, (.375-24 x Special), CONNECTING ROD CAP
  • 15
    11-37493 NUT, (.375-24), CONNECTING ROD CAP BOLT
    NUT, (.375-24), CONNECTING ROD CAP BOLT
  • 16
    23-85701 BEARING, CONNECTING ROD (STANDARD)
    BEARING, CONNECTING ROD (STANDARD)
  • 16
    23-85702 BEARING (PAIR), CONNECTING ROD (.001 USA)
    BEARING (PAIR), CONNECTING ROD (.001 USA)
  • 16
    23-85703 BEARING (PAIR), CONNECTING ROD (.002 USA)
    BEARING (PAIR), CONNECTING ROD (.002 USA)
  • 16
    23-85704 BEARING (PAIR), CONNECTING ROD (.010 USA)
    BEARING (PAIR), CONNECTING ROD (.010 USA)
  • 16
    23-85705 BEARING (PAIR), CONNECTING ROD (.020 USA)
    BEARING (PAIR), CONNECTING ROD (.020 USA)
  • 17
    429-8M0054508 CRANKSHAFT (L.H. ROTATION)
    (230-5.0L)
    CRANKSHAFT (L.H. ROTATION)
    (230-5.0L)
  • 17
    429-9600 CRANKSHAFT (R.H. ROTATION)
    (230-5.0L)
    CRANKSHAFT (R.H. ROTATION)
    (230-5.0L)
  • 17
    429-9521T CRANKSHAFT (L.H. ROTATION)
    (260-5.7L)
    CRANKSHAFT (L.H. ROTATION)
    (260-5.7L)
  • 17
    429-9526 CRANKSHAFT (R.H. ROTATION)
    (260-5.7L)
    CRANKSHAFT (R.H. ROTATION)
    (260-5.7L)
