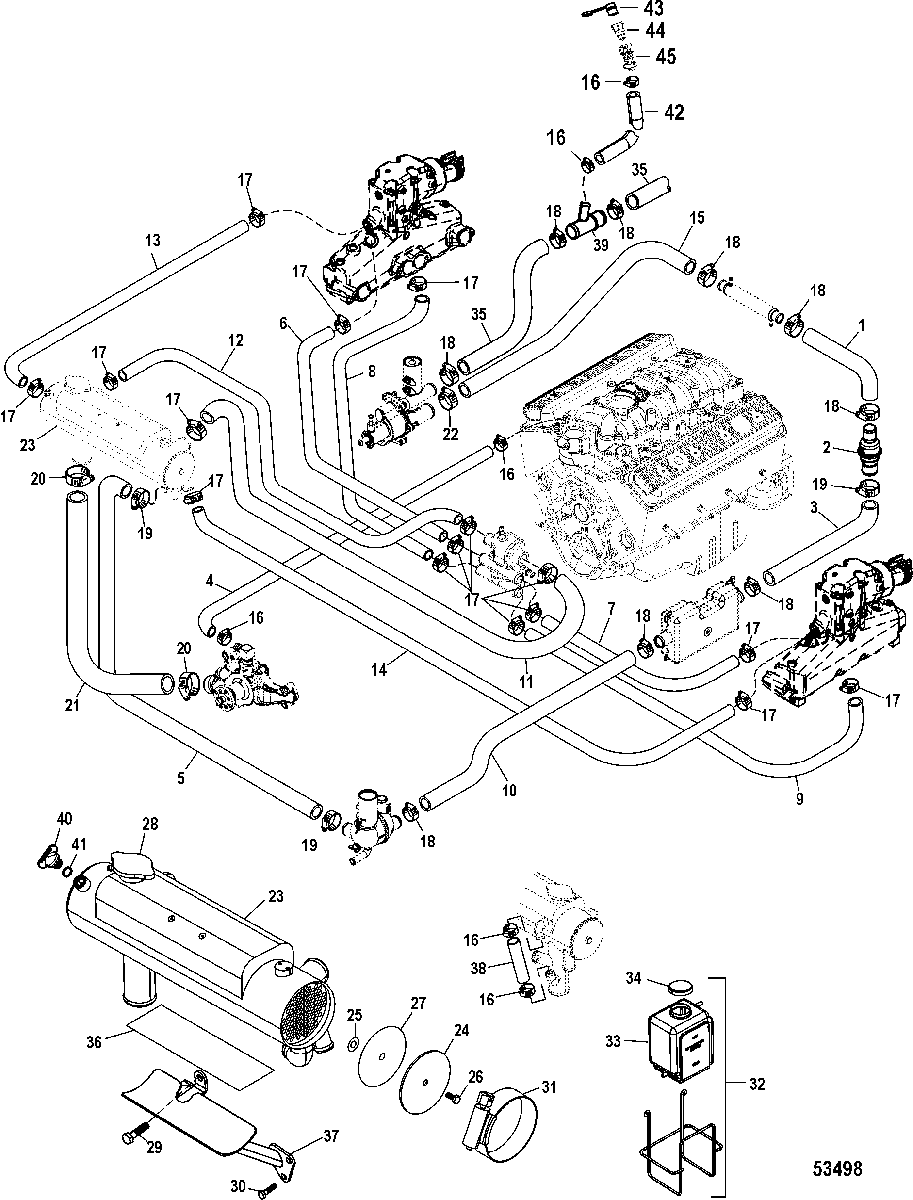

CLOSED COOLING SYSTEM для Mercruiser - 357 HRZ 630V BOBTAIL RM 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Tansmission Cooler to Check Valve
    HOSE, Tansmission Cooler to Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863623 HOSE, Check Valve to Fuel Cooler
    HOSE, Check Valve to Fuel Cooler
  • 4
    32-864551 HOSE, Intake Bypass to Circulating Pump
    HOSE, Intake Bypass to Circulating Pump
  • 5
    32-864431 HOSE, Distribution Fitting to Heat Exchanger
    HOSE, Distribution Fitting to Heat Exchanger
  • 6
    32-864539 HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(Without Risers)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(Without Risers)
  • 6
    32-864956 HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(With Risers)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(With Risers)
  • 7
    32-864552 HOSE, Thermostat Housing to Upper Manifold
    (Port)(Without Risers)
    HOSE, Thermostat Housing to Upper Manifold
    (Port)(Without Risers)
  • 7
    32-864954 HOSE, Thermostat Housing to Upper Manifold
    (Port)(With Risers)
    HOSE, Thermostat Housing to Upper Manifold
    (Port)(With Risers)
  • 8
    32-864509 HOSE
    HOSE
  • 9
    32-864508 HOSE, Port Manifold Drain
    HOSE, Port Manifold Drain
  • 10
    32-863670 HOSE, Fuel Cooler to Accumulator Housing
    HOSE, Fuel Cooler to Accumulator Housing
  • 11
    32-864506 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 12
    32-864507 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 13
    32-8M2005027 HOSE, Heat Exchanger to Starboard Elbow
    (INLINE)(3 In. Risers and No Risers)
    HOSE, Heat Exchanger to Starboard Elbow
    (INLINE)(3 In. Risers and No Risers)
  • 13
    32-864955 HOSE, Heat Exchanger to Starboard Elbow
    (INLINE)(6 In. Risers)
    HOSE, Heat Exchanger to Starboard Elbow
    (INLINE)(6 In. Risers)
  • 13
    32-864544 HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(Without Risers)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(Without Risers)
  • 13
    32-864544 HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(3 In. Risers)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(3 In. Risers)
  • 13
    32-864974 HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(6 In. Risers)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-DRIVE)(6 In. Risers)
  • 14
    32-864726 HOSE, Heat Exchanger to Port Elbow
    (INLINE)(3 In. Risers and No Risers)
    HOSE, Heat Exchanger to Port Elbow
    (INLINE)(3 In. Risers and No Risers)
  • 14
    32-864953 HOSE, Heat Exchanger to Port Elbow
    (INLINE)(6 In. Risers)
    HOSE, Heat Exchanger to Port Elbow
    (INLINE)(6 In. Risers)
  • 14
    32-864543 HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(Without Risers)
    HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(Without Risers)
  • 14
    32-864543 HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(3 In. Risers)
    HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(3 In. Risers)
  • 14
    32-864973 HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(6 In. Risers)
    HOSE, Heat Exchanger to Port Elbow
    (V-DRIVE)(6 In. Risers)
  • 15
    32-863611 HOSE, Sea Pump to Trans Cooler
    HOSE, Sea Pump to Trans Cooler
  • 16
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 21
    32-864886 HOSE, Heat Exchanger to Circulating Pump
    HOSE, Heat Exchanger to Circulating Pump
  • 22
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    864395T01 HEAT EXCHANGER
    HEAT EXCHANGER
  • 24
    864708 COVER, End, Heat Exchanger
    COVER, End, Heat Exchanger
  • 25
    25-818679 O-RING
    O-RING
  • 26
    10-94247 SCREW, (.375-16 x .750) Stainless Steel
    SCREW, (.375-16 x .750) Stainless Steel
  • 27
    25-8M0084884 SEAL, End Cover
    SEAL, End Cover
  • 28
    36-8148791 CAP, Pressure
    CAP, Pressure
  • 29
    10-805559 SCREW, (.375-16 x .875) Stainless Steel
    SCREW, (.375-16 x .875) Stainless Steel
  • 30
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 31
    54-815504396 CLAMP, Worm Gear, Heat Exchanger
    CLAMP, Worm Gear, Heat Exchanger
  • 32
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 33
    71587A11 BOTTLE, Plastic, Coolant Recovery Kit
    BOTTLE, Plastic, Coolant Recovery Kit
  • 34
    72058 CAP, Coolant Recovery Bottle
    CAP, Coolant Recovery Bottle
  • 35
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UP
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UP
  • 36
    18431 PAD, Heat Exchanger
    PAD, Heat Exchanger
  • 37
    864429T BRACKET, Cooler
    BRACKET, Cooler
  • 38
    32-864533 HOSE
    HOSE
  • 39
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
  • 40
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 41
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 42
    32-8M0062634 HOSE, 44.00 inch Bulk
    (Cut to fit)
    HOSE, 44.00 inch Bulk
    (Cut to fit)
  • 43
    19-858240 CAP
    CAP
  • 44
    22-857175 COUPLING INSERT
    COUPLING INSERT
  • 45
    22-861406 SOCKET
    SOCKET
  • NS
    19-8M0074364 CLAMP, Hose Clamp End
    CLAMP, Hose Clamp End
