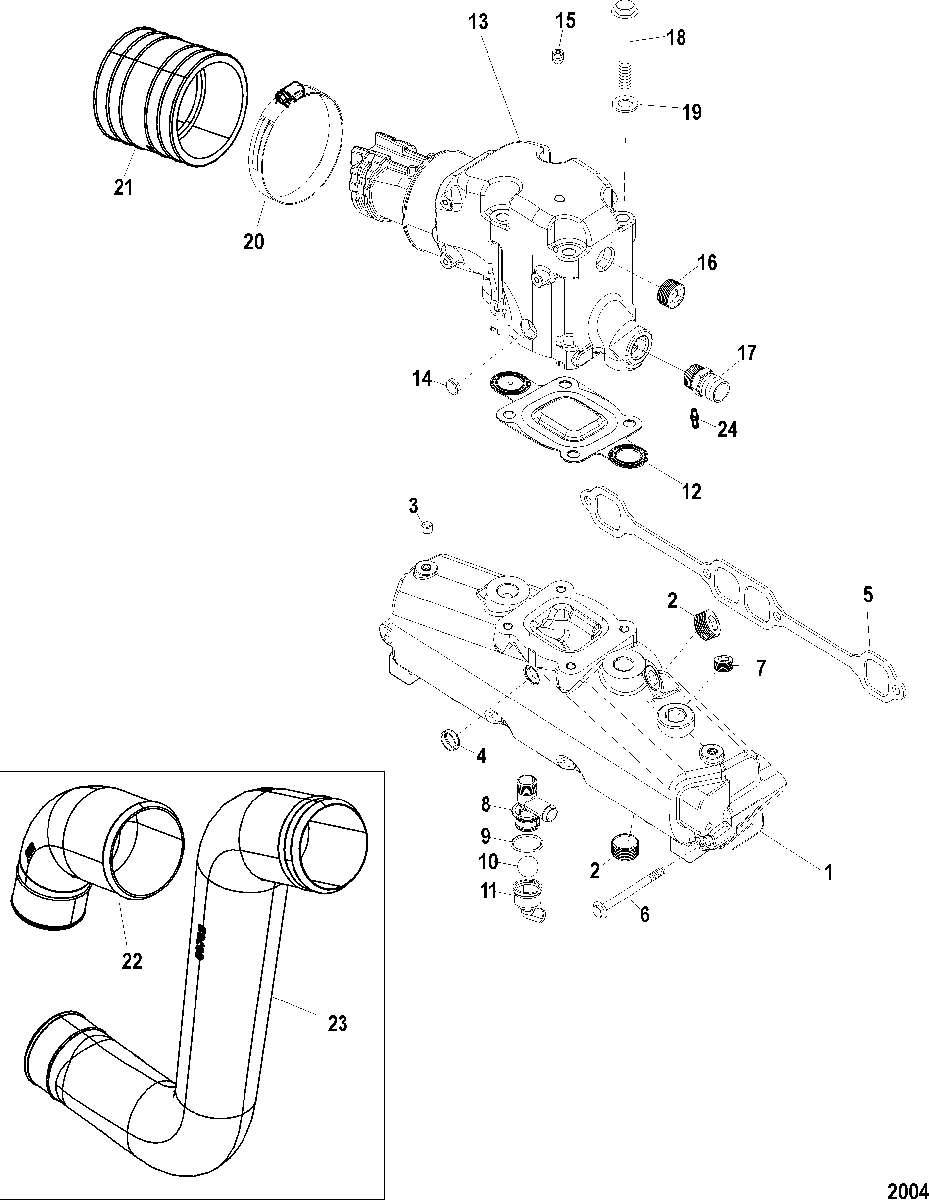

Exhaust Manifold, Elbow And Pipes для Mercruiser - 350 MAG MPI SKI 0M317000 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-384071 PLUG, Pipe (.500)
    (Early Models)
    PLUG, Pipe (.500)
    (Early Models)
  • 7
    22-12524 PLUG, (.375-18 x .475) Brass
    (Late Models)
    PLUG, (.375-18 x .475) Brass
    (Late Models)
  • 8
    22-863786A1 FITTING ASSEMBLY, Drain
    FITTING ASSEMBLY, Drain
  • 9
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 10
    30-863129 BALL
    BALL
  • 11
    862994T FITTING
    FITTING
  • 12
    27-864850A02 GASKET, Elbow, Restrictor
    GASKET, Elbow, Restrictor
  • 13
    864309T02 ELBOW ASSEMBLY, Exhaust
    (Inline)
    ELBOW ASSEMBLY, Exhaust
    (Inline)
  • 13
    864591T02 ELBOW ASSEMBLY, Exhaust
    (V-Drive)
    ELBOW ASSEMBLY, Exhaust
    (V-Drive)
  • 14
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    22-864623A1 FITTING ASSEMBLY, With Tapped Fitting
    (Port)
    FITTING ASSEMBLY, With Tapped Fitting
    (Port)
  • 17
    22-866725 FITTING, (.750-14), With Out Tapped Fitting
    (Starboard)
    FITTING, (.750-14), With Out Tapped Fitting
    (Starboard)
  • 18
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 18
    10-864665 SCREW, (.375-16 x 7.50)
    (V-Drive)
    SCREW, (.375-16 x 7.50)
    (V-Drive)
  • 19
    12-34714 WASHER
    (V-Drive)
    WASHER
    (V-Drive)
  • 20
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-44348001 TUBE
    TUBE
  • 22
    807153T PIPE, Exhaust
    PIPE, Exhaust
  • 23
    807611T PIPE, Exhaust
    PIPE, Exhaust
  • 24
    22-16604 FITTING, Straight (.125-27), Barb
    FITTING, Straight (.125-27), Barb
