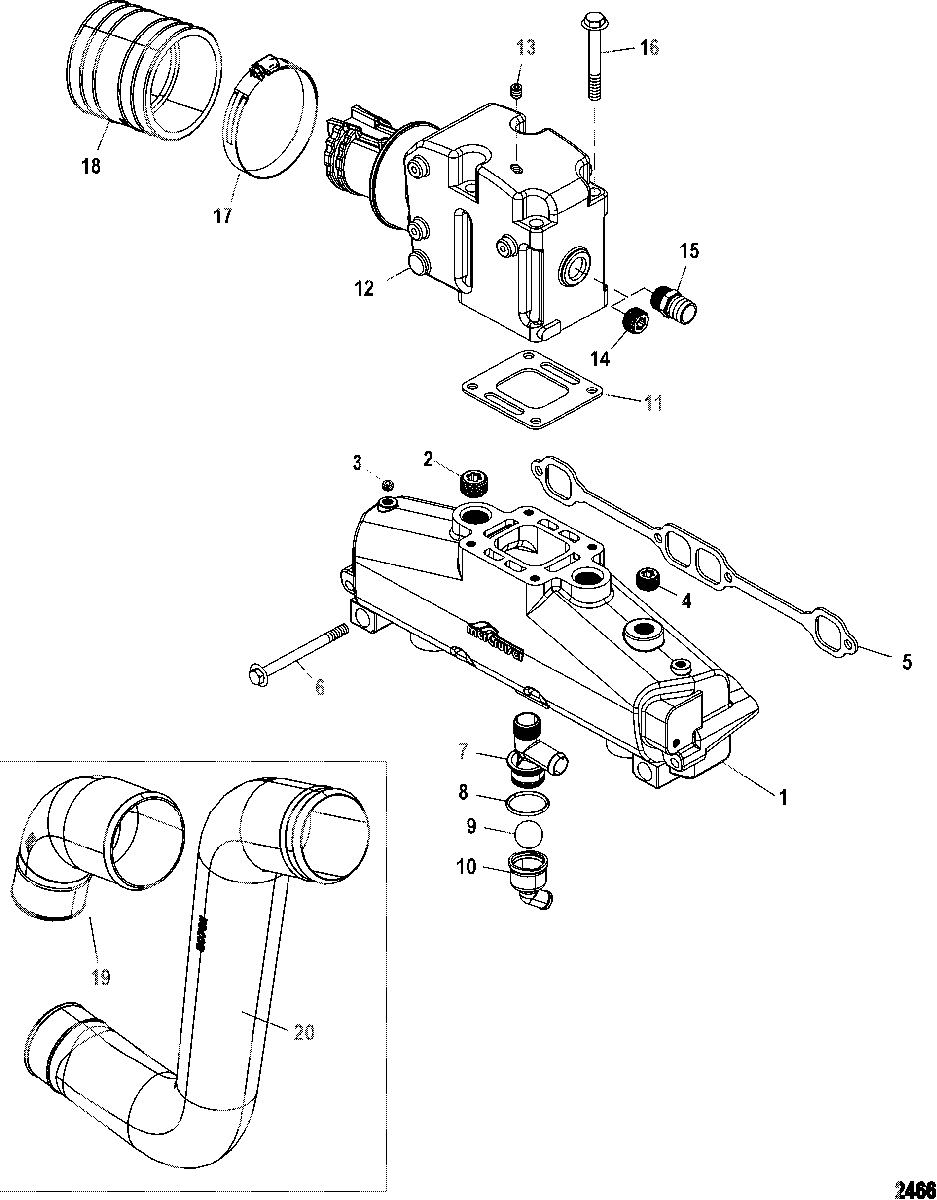

Exhaust Manifold, Elbow And Pipes для Mercruiser - 350 MAG MPI SKI 0M300000 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-863786A1 FITTING ASSEMBLY, Drain
    FITTING ASSEMBLY, Drain
  • 8
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 9
    30-863129 BALL
    BALL
  • 10
    862994T FITTING
    FITTING
  • 11
    27-863724 GASKET, Elbow, Restrictor
    GASKET, Elbow, Restrictor
  • 12
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 13
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 14
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 15
    22-865159 FITTING, (45 Degrees), Inline
    (Port)
    FITTING, (45 Degrees), Inline
    (Port)
  • 15
    22-866725 FITTING, (.750-14), Inline
    (Starboard)
    FITTING, (.750-14), Inline
    (Starboard)
  • 16
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 16
    10-44387 SCREW, (.376-16 x 6.750)
    SCREW, (.376-16 x 6.750)
  • 17
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 18
    32-44348001 TUBE
    TUBE
  • 19
    807153T PIPE, Exhaust
    PIPE, Exhaust
  • 20
    807611T PIPE, Exhaust
    PIPE, Exhaust
