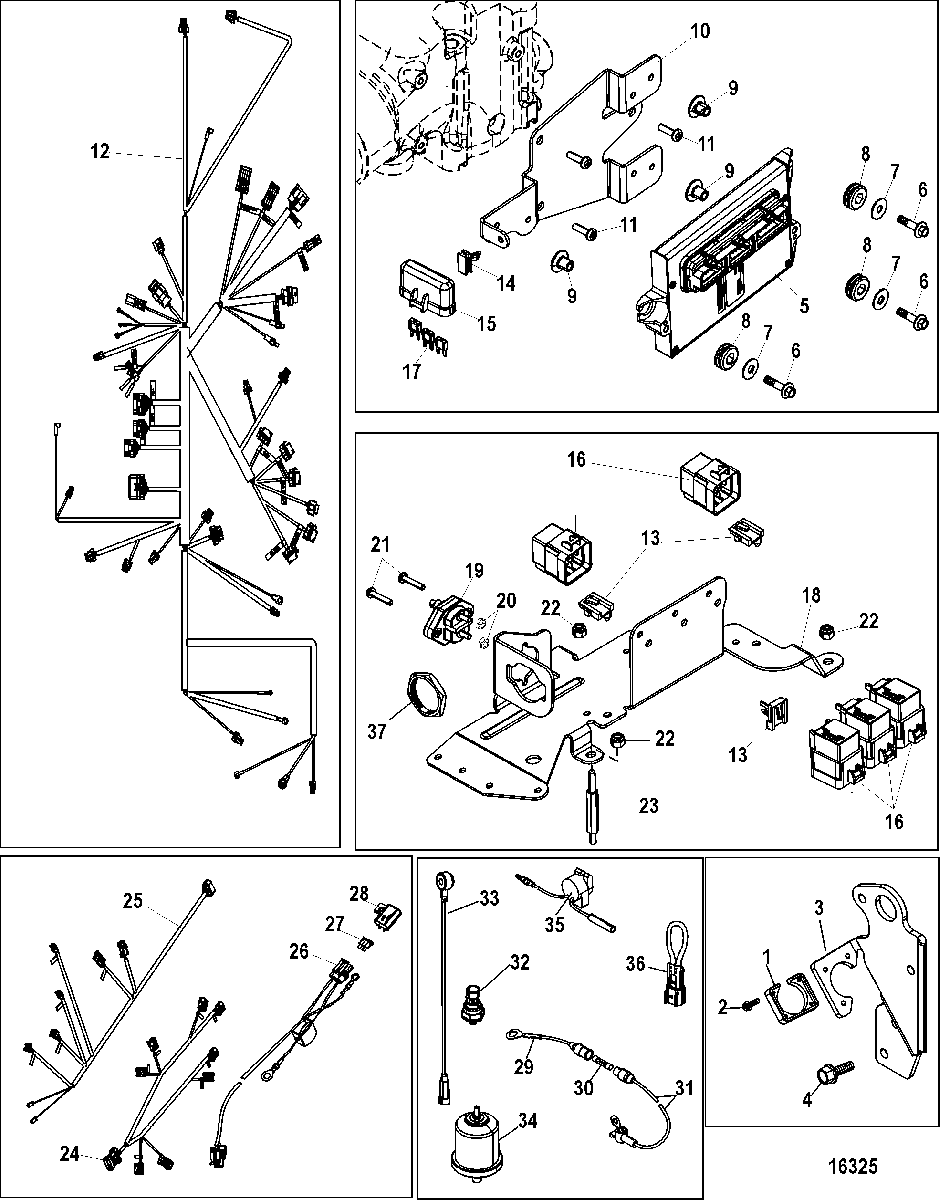

Electrical Components(Digital Throttle and Shift) для Mercruiser - 350 MAG MPI MIE 0W390000 THRU 0W689999
-
№АртикулНазвание
-
126079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
210-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
3865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
410-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
5866240T06 PCM, Propulsion Control Module
(350 MAG.)(Standard Cooling)PCM, Propulsion Control Module
(350 MAG.)(Standard Cooling) -
5866241T06 PCM, Propulsion Control Module
(350 MAG.)(Closed Cooling)PCM, Propulsion Control Module
(350 MAG.)(Closed Cooling) -
5866244T06 PCM, Propulsion Control Module
(6.2L)(Standard Cooling)PCM, Propulsion Control Module
(6.2L)(Standard Cooling) -
5866245T06 PCM, Propulsion Control Module
(6.2L)(Closed Cooling)PCM, Propulsion Control Module
(6.2L)(Closed Cooling) -
610-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
712-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
825-834985 GROMMETGROMMET
-
923-856954 BUSHINGBUSHING
-
10865479T01 BRACKET, ECM MountBRACKET, ECM Mount
-
1110-860008 SCREW, (.250-20 x .625) TorxSCREW, (.250-20 x .625) Torx
-
1284-866052T02 HARNESS ASSEMBLY, Main Engine
(Digital Throttle and Shift)HARNESS ASSEMBLY, Main Engine
(Digital Throttle and Shift) -
1386-865205 CLIP, Relay MountingCLIP, Relay Mounting
-
1454-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
15883562 COVER, FuseCOVER, Fuse
-
1686-865202T RELAYRELAY
-
1788-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
18865483T BRACKET, Circuit Breaker and RelaysBRACKET, Circuit Breaker and Relays
-
1988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2011-826709106 NUT, (#10-32)NUT, (#10-32)
-
2110-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2316-863439 STUDSTUD
-
2484-865983T01 HARNESS ASSEMBLY, InjectorsHARNESS ASSEMBLY, Injectors
-
2584-865676T01 HARNESS ASSEMBLY, TransmissionHARNESS ASSEMBLY, Transmission
-
2684-8M0113732 HARNESS ASSEMBLY, Clean PowerHARNESS ASSEMBLY, Clean Power
-
27862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
28828054 COVER, FuseCOVER, Fuse
-
2984-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo) -
3088-79091 FUSE, 20 Ampere
(Bravo)FUSE, 20 Ampere
(Bravo) -
3184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo) -
328M6000623 SENSOR, Pressure
( Power Steering Cooler )SENSOR, Pressure
( Power Steering Cooler ) -
32881879T11 SENSOR, (0 - 100 PSI), Pressure
( Oil )SENSOR, (0 - 100 PSI), Pressure
( Oil ) -
338M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
348M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
3437293T SENDER ASSEMBLY, Oil
(Dual Station)SENDER ASSEMBLY, Oil
(Dual Station) -
35816492A15 ALARM KITALARM KIT
-
36864337A1 CONNECTOR, Black, Jumper
(Black Wire)CONNECTOR, Black, Jumper
(Black Wire) -
3711-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
