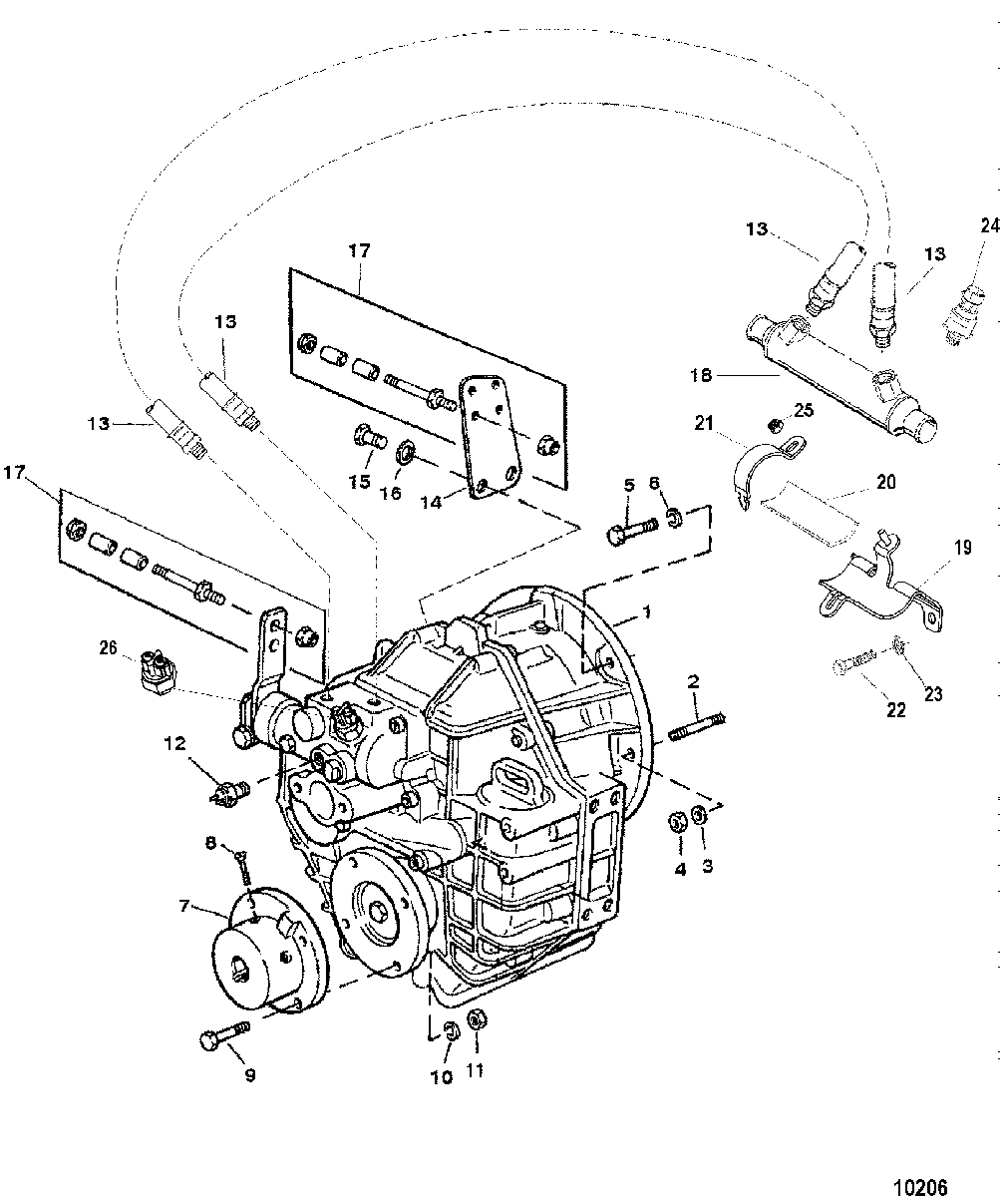

Transmission and Related Parts(HURTH 630) для Mercruiser - 350 MAG MPI MIE 0M398372 THRU 0W389999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio)
Down Angle TransmissionTRANSMISSION, (1.5:1 Ratio)
Down Angle Transmission -
1863744T3 TRANSMISSION, (2.0:1 Ratio)
Down Angle TransmissionTRANSMISSION, (2.0:1 Ratio)
Down Angle Transmission -
1863744T4 TRANSMISSION, (2.50:1 Ratio)
Down Angle TransmissionTRANSMISSION, (2.50:1 Ratio)
Down Angle Transmission -
1863744T5 TRANSMISSION, (2.70:1 Ratio)
Down Angle TransmissionTRANSMISSION, (2.70:1 Ratio)
Down Angle Transmission -
1863745T2 TRANSMISSION, (1.5:1 Ratio)
V-Drive TransmissionTRANSMISSION, (1.5:1 Ratio)
V-Drive Transmission -
1863745T3 TRANSMISSION, (2.0:1 Ratio)
V-Drive TransmissionTRANSMISSION, (2.0:1 Ratio)
V-Drive Transmission -
1863745T4 TRANSMISSION, (2.5:1 Ratio)
V-Drive TransmissionTRANSMISSION, (2.5:1 Ratio)
V-Drive Transmission -
216-805259 STUDSTUD
-
312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
411-82670815 NUT, (.437-20)NUT, (.437-20)
-
510-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
787917A1 FLANGE ASSEMBLY, (4.00 x 1.00)FLANGE ASSEMBLY, (4.00 x 1.00)
-
779476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
779476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
779476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
779476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
779476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
779476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
779476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
810-60171 SCREW, (.375-16 x 1.250), FlangeSCREW, (.375-16 x 1.250), Flange
-
810-60169 SCREW, (.375-16 x .750), FlangeSCREW, (.375-16 x .750), Flange
-
910-68101 SCREW, (.375-16 x 1.375)
(4 In. Flange)SCREW, (.375-16 x 1.375)
(4 In. Flange) -
910-805159 SCREW, (.437-20 x 1.500)
(5 In. Flange)SCREW, (.437-20 x 1.500)
(5 In. Flange) -
1013-35048 LOCKWASHER, (.375)
(4 In. Flange)LOCKWASHER, (.375)
(4 In. Flange) -
1013-32993 LOCKWASHER, (.437)
(5 In. Flange)LOCKWASHER, (.437)
(5 In. Flange) -
1111-32219 NUT, (.375-16)
(4 In. Flange)NUT, (.375-16)
(4 In. Flange) -
1111-22024 NUT, (.437-14)
(5 In. Flange)NUT, (.437-14)
(5 In. Flange) -
1287-88031 SWITCH ASSEMBLY, TemperatureSWITCH ASSEMBLY, Temperature
-
1332-8054781 HOSE, (19.50), OilHOSE, (19.50), Oil
-
14806238 BRACKET, Shift LinkageBRACKET, Shift Linkage
-
1510-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
1613-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1716-97477A3 STUD KITSTUD KIT
-
18863832T01 COOLER, OilCOOLER, Oil
-
19863850 BRACKET, Transmission Oil CoolerBRACKET, Transmission Oil Cooler
-
20772233 PADPAD
-
21807445T CLAMPCLAMP
-
2210-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
248M6000623 SENSOR, PressureSENSOR, Pressure
-
2511-8267088 NUT, (.250-20)NUT, (.250-20)
-
2687-813300 SWITCH, Neutral SafetySWITCH, Neutral Safety
