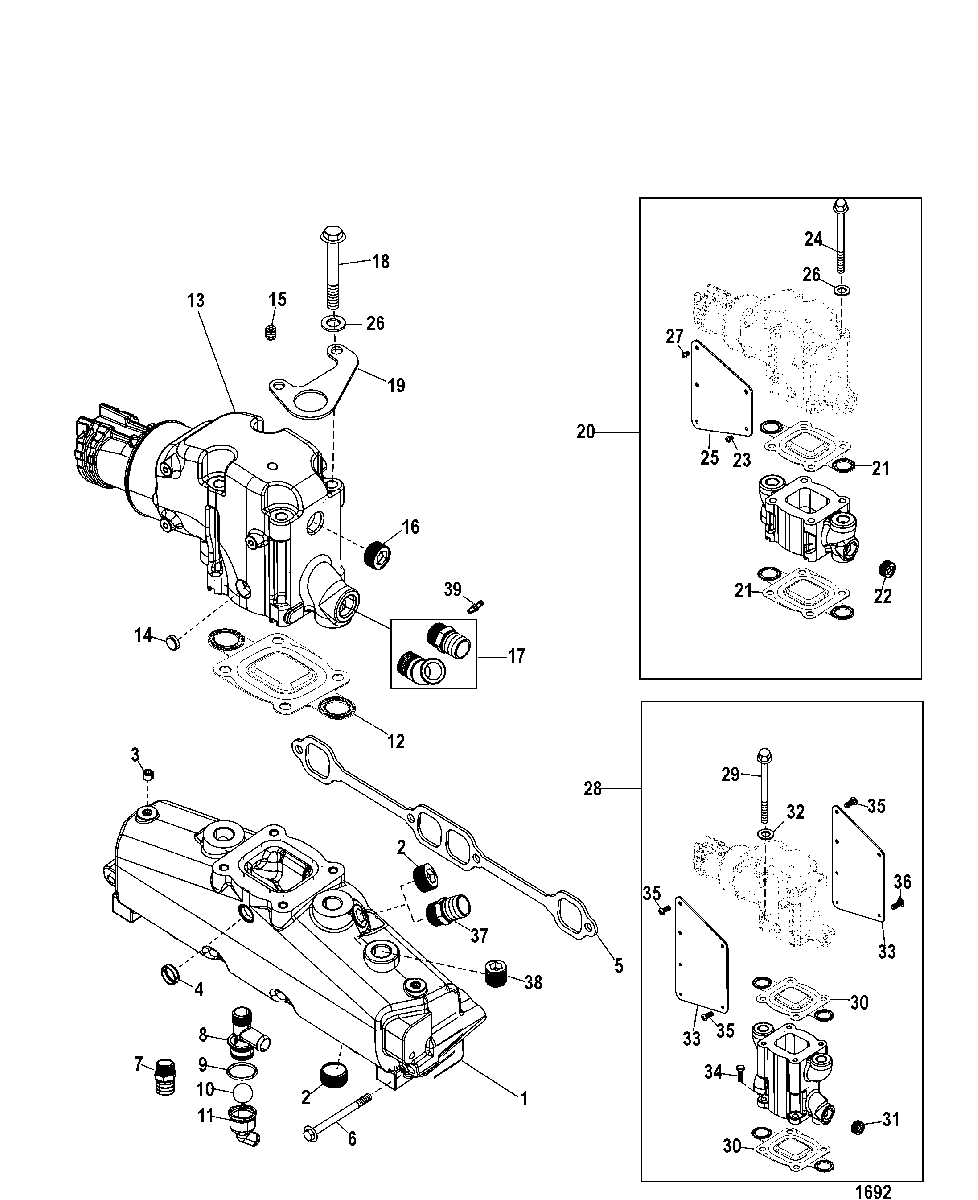

EXHAUST MANIFOLD AND ELBOW для Mercruiser - 350 MAG MPI MIE 0M317000 THRU 0M398371

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-866725 FITTING, (.750-14)
    (Closed Cooling)
    FITTING, (.750-14)
    (Closed Cooling)
  • 8
    22-863786A1 FITTING ASSEMBLY, Drain
    (Standard Cooling)
    FITTING ASSEMBLY, Drain
    (Standard Cooling)
  • 9
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 10
    30-863129 BALL
    BALL
  • 11
    862994T FITTING
    FITTING
  • 12
    27-864850A02 GASKET, Elbow(Restrictor)
    (Standard Cooling)
    GASKET, Elbow(Restrictor)
    (Standard Cooling)
  • 12
    27-864549A02 GASKET, Elbow(Block Off)
    (Closed Cooling)
    GASKET, Elbow(Block Off)
    (Closed Cooling)
  • 13
    864591T02 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    22-864623A1 FITTING ASSEMBLY, Barb (With Tapped Fitting)
    FITTING ASSEMBLY, Barb (With Tapped Fitting)
  • 17
    22-865159 FITTING, (45 Degree)
    FITTING, (45 Degree)
  • 18
    10-864665 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 19
    864263 BRACKET, Flushing Attatchment
    BRACKET, Flushing Attatchment
  • 20
    864306A5 RISER EXTENSION KIT (3 In. Cold Riser)
    (Standard Cooling) SN# 0M389999 & Below
    RISER EXTENSION KIT (3 In. Cold Riser)
    (Standard Cooling) SN# 0M389999 & Below
  • 20
    864929A3 RISER EXTENSION KIT (3 In. Warm Riser)
    (Standard Cooling) SN# 0M390000 & Up
    RISER EXTENSION KIT (3 In. Warm Riser)
    (Standard Cooling) SN# 0M390000 & Up
  • 20
    864306A4 RISER EXTENSION KIT (3 In. Cold Riser)
    (Closed Cooling) SN# 0M389999 & Below
    RISER EXTENSION KIT (3 In. Cold Riser)
    (Closed Cooling) SN# 0M389999 & Below
  • 20
    864929A4 RISER EXTENSION KIT (3 In. Warm Riser)
    (Closed Cooling) SN# 0M390000 & Up
    RISER EXTENSION KIT (3 In. Warm Riser)
    (Closed Cooling) SN# 0M390000 & Up
  • 21
    27-864850A02 GASKET (Restrictor)
    (Standard Cooling)
    GASKET (Restrictor)
    (Standard Cooling)
  • 21
    27-864549A02 GASKET, Block Off
    (Closed Cooling)
    GASKET, Block Off
    (Closed Cooling)
  • 21
    27-864547A02 GASKET, FullFlow
    (With Risers Only)
    GASKET, FullFlow
    (With Risers Only)
  • 22
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 23
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 24
    10-864702 BOLT, (.375-16 x 10.500)
    BOLT, (.375-16 x 10.500)
  • 25
    863714T01 BRACKET, ECM Mounting
    BRACKET, ECM Mounting
  • 26
    12-34714 WASHER
    WASHER
  • 27
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 28
    864908A07 RISER EXTENSION KIT (6 In. Cold Riser)
    (Standard Cooling) SN# 0M389999 & Below
    RISER EXTENSION KIT (6 In. Cold Riser)
    (Standard Cooling) SN# 0M389999 & Below
  • 28
    864908A1 RISER EXTENSION KIT (6 In. Warm Riser)
    (Standard Cooling) SN# 0M390000 & Up
    RISER EXTENSION KIT (6 In. Warm Riser)
    (Standard Cooling) SN# 0M390000 & Up
  • 28
    864908A06 RISER EXTENSION KIT (6 In. Cold Riser)
    (Closed Cooling) SN# 0M389999 & Below
    RISER EXTENSION KIT (6 In. Cold Riser)
    (Closed Cooling) SN# 0M389999 & Below
  • 28
    864908A2 RISER EXTENSION KIT (6 In. Warm Riser)
    (Closed Cooling) SN# 0M390000 & Up
    RISER EXTENSION KIT (6 In. Warm Riser)
    (Closed Cooling) SN# 0M390000 & Up
  • 29
    10-864665 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 30
    27-864850A02 GASKET, Restrictor
    (Standard Cooling)
    GASKET, Restrictor
    (Standard Cooling)
  • 30
    27-864549A02 GASKET, Block Off
    (Closed Cooling)
    GASKET, Block Off
    (Closed Cooling)
  • 30
    27-864547A02 GASKET, Full Flow
    (With Risers Only)
    GASKET, Full Flow
    (With Risers Only)
  • 31
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 32
    12-34714 WASHER
    WASHER
  • 33
    863715T01 BRACKET, ECM Mounting
    BRACKET, ECM Mounting
  • 34
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 35
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 36
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 37
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 38
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 38
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 39
    22-16604 FITTING, Straight (.125-27), Barb
    FITTING, Straight (.125-27), Barb
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
