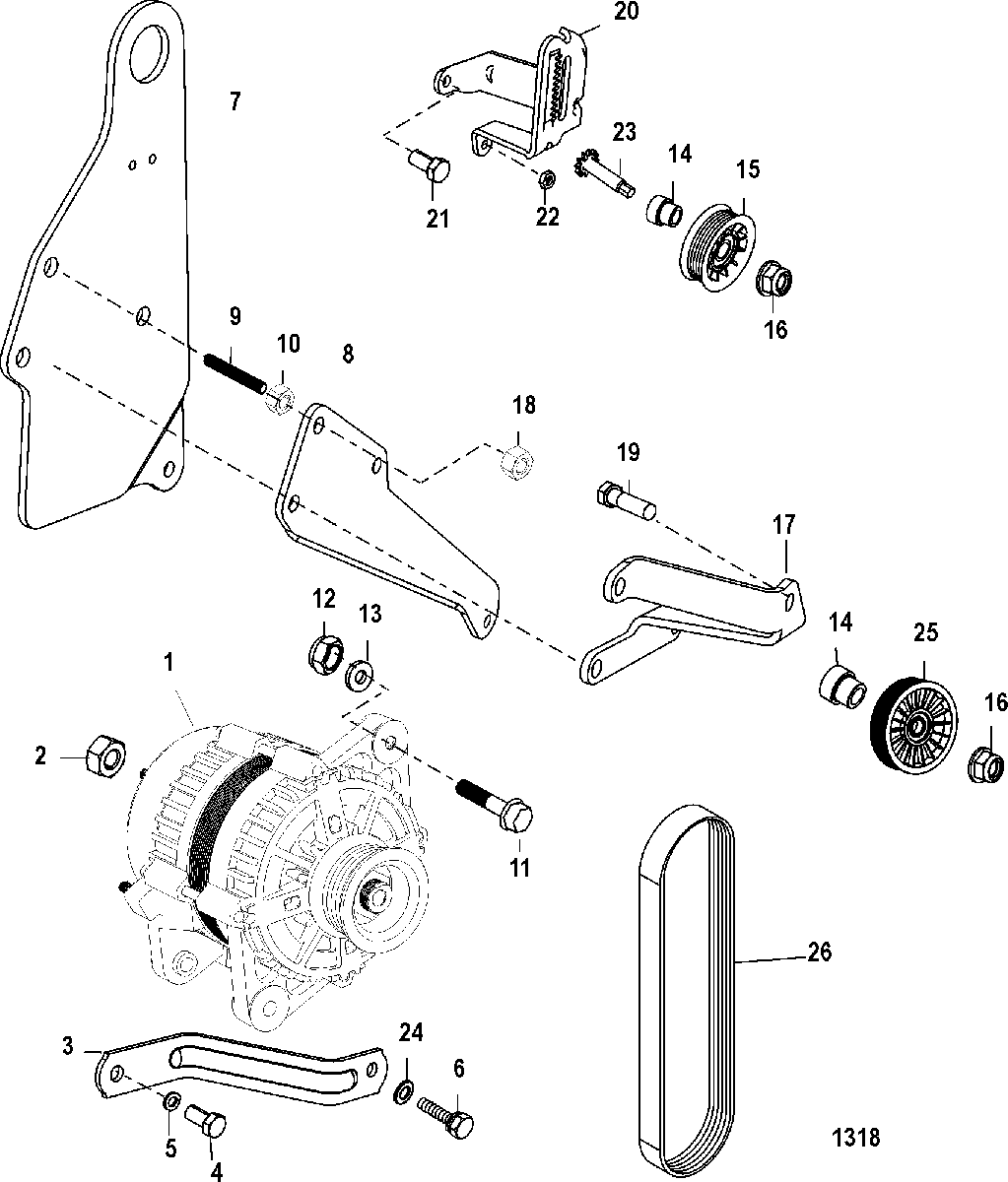

Alternator And Brackets для Mercruiser - 350 MAG MPI MIE 0M310000 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    863077T ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
    (350 Magnum) (Service Complete Assembly)
    ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
    (350 Magnum) (Service Complete Assembly)
  • 1
    862031T1 ALTERNATOR ASSEMBLY (65 Amp, With 62mm Pulley)
    (MX 6.2L) SN# 0M310099 & Below
    ALTERNATOR ASSEMBLY (65 Amp, With 62mm Pulley)
    (MX 6.2L) SN# 0M310099 & Below
  • 1
    863077T ALTERNATOR ASSEMBLY, Black (65 Amp, With 50mm Pulley)
    (MX 6.2L) SN# 0M310100 & Up
    ALTERNATOR ASSEMBLY, Black (65 Amp, With 50mm Pulley)
    (MX 6.2L) SN# 0M310100 & Up
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    807750T BRACE
    BRACE
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 6
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 7
    863646 BRACKET, Alternator And Lifting Eye
    (With Out Air Actuated Drain
    BRACKET, Alternator And Lifting Eye
    (With Out Air Actuated Drain
  • -
    8636461 BRACKET, Alternator And Lifting Eye
    (Air Actuated Drain)
    BRACKET, Alternator And Lifting Eye
    (Air Actuated Drain)
  • 8
    862058T BRACE, Alternator
    BRACE, Alternator
  • 9
    16-862615 STUD, (.375-16 x 2.25)
    STUD, (.375-16 x 2.25)
  • 10
    11-32219 NUT, (.375-16)
    (Standard Cooling)
    NUT, (.375-16)
    (Standard Cooling)
  • 11
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    (Closed Cooling)
    SCREW, (.312-18 x 1.500) Hex Flange
    (Closed Cooling)
  • 12
    12-57792 WASHER
    WASHER
  • 13
    11-26484 NUT, (5/16-18)
    NUT, (5/16-18)
  • 14
    865193 BUSHING
    BUSHING
  • 15
    807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
  • 16
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 17
    807753T1 BRACKET, Idler
    BRACKET, Idler
  • 18
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 19
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 20
    807767T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 21
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 22
    11-29250 NUT, (.3125-24)
    NUT, (.3125-24)
  • 23
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 24
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 25
    864625T PULLEY (4.25 Inch Diameter)
    (350 Magnum )
    PULLEY (4.25 Inch Diameter)
    (350 Magnum )
  • 25
    807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    (MX 6.2L) SN# 0M310099 & Below
    PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    (MX 6.2L) SN# 0M310099 & Below
  • 25
    864625T PULLEY (4.25 Inch Diameter)
    (MX 6.2L) SN# 0M310100 & Up
    PULLEY (4.25 Inch Diameter)
    (MX 6.2L) SN# 0M310100 & Up
  • 26
    57-865615Q05 BELT, Serpentine
    (350 Magnum)
    BELT, Serpentine
    (350 Magnum)
  • 26
    57-807755Q04 BELT, Serpentine
    (MX 6.2L) SN# 0M310099 & Below
    BELT, Serpentine
    (MX 6.2L) SN# 0M310099 & Below
  • 26
    57-865615Q05 BELT, Serpentine
    (MX 6.2L) SN# 0M310100 & Up
    BELT, Serpentine
    (MX 6.2L) SN# 0M310100 & Up
