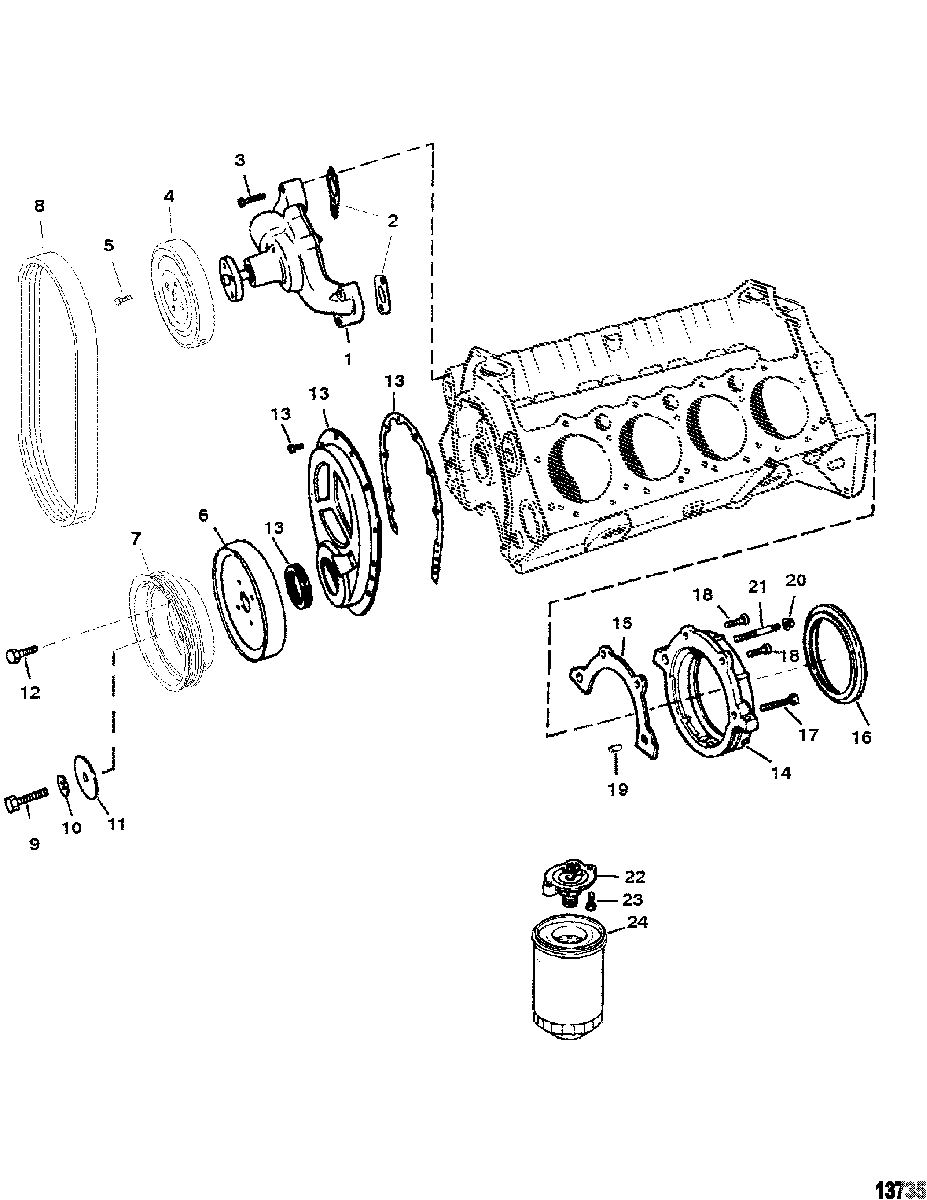

Water Pump and Front Cover для Mercruiser - 350 MAG. MPI MIE (GEN+) GM 350 V-8 1998 0L002008 THRU 0L302199

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    27-34897 GASKET
    GASKET
  • 3
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 3
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 4
    807729T PULLEY
    PULLEY
  • 5
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 6
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 7
    807730T PULLEY
    PULLEY
  • 8
    57-807755Q04 BELT, Serpentine
    BELT, Serpentine
  • 9
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 10
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    12-35332001 WASHER
    WASHER
  • 12
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 13
    835005 COVER ASSEMBLY, Timing
    (Screws, grommets, oil seal and gasket are not sold separately)
    COVER ASSEMBLY, Timing
    (Screws, grommets, oil seal and gasket are not sold separately)
  • 14
    852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
    HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
  • 15
    27-881715 GASKET
    GASKET
  • 16
    26-852941 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 17
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 18
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 19
    17-14263 PIN, Dowel
    PIN, Dowel
  • 20
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 22
    71920 VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
    VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
  • 23
    10-54786 SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
    SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
  • 24
    35-866340Q03 FILTER, Oil
    W/O REMOTE OIL FILTER
    FILTER, Oil
    W/O REMOTE OIL FILTER
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
