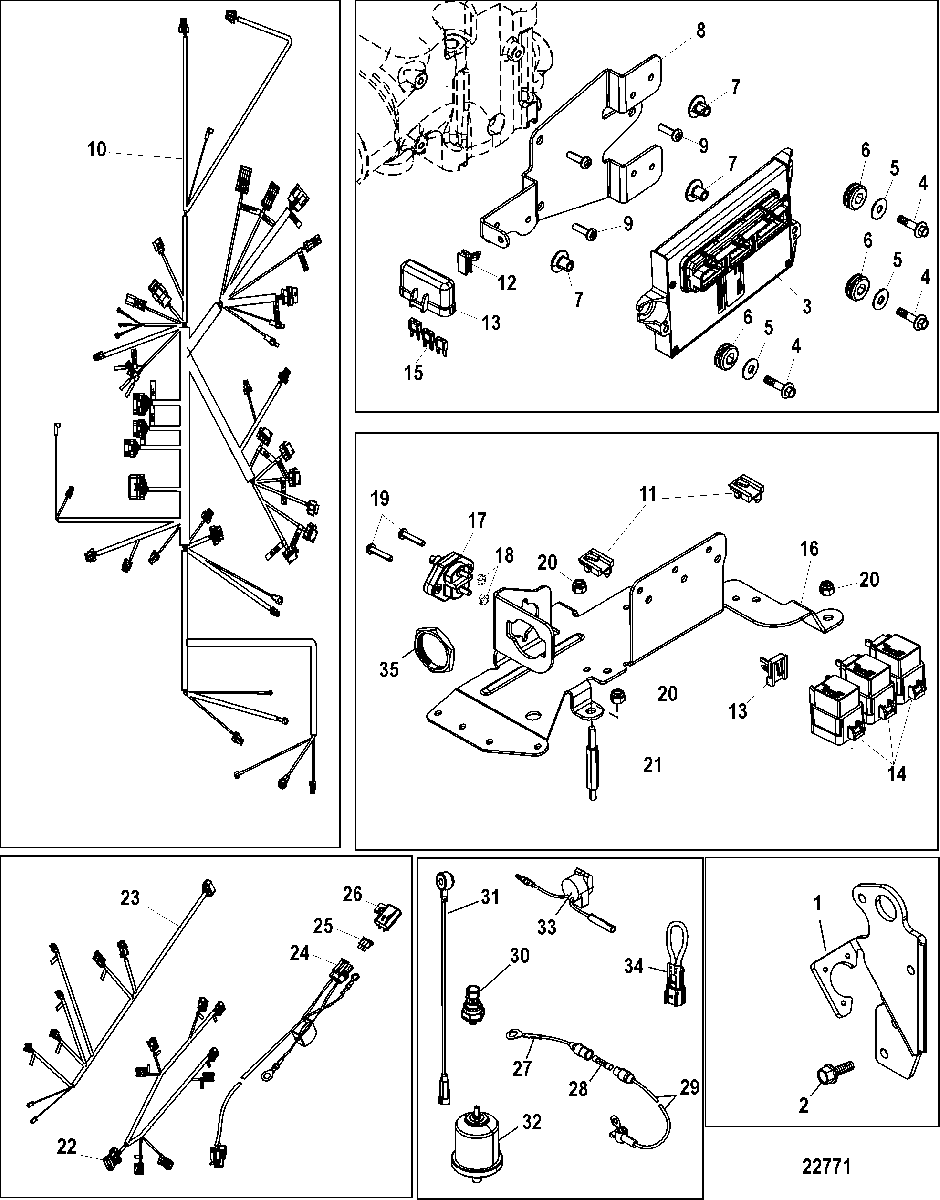

Electrical Components(Digital Throttle and Shift) для Mercruiser - 350 MAG MPI HORIZON MIE 0W690000 THRU 1A089999
-
№АртикулНазвание
-
1865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
210-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
3866240T06 PCM, Propulsion Control Module
(350 MAG.)(Standard Cooling)PCM, Propulsion Control Module
(350 MAG.)(Standard Cooling) -
3866241T06 PCM, Propulsion Control Module
(350 MAG.)(Closed Cooling)PCM, Propulsion Control Module
(350 MAG.)(Closed Cooling) -
3866244T06 PCM, Propulsion Control Module
(6.2L)(Standard Cooling)PCM, Propulsion Control Module
(6.2L)(Standard Cooling) -
3866245T06 PCM, Propulsion Control Module
(6.2L)(Closed Cooling)PCM, Propulsion Control Module
(6.2L)(Closed Cooling) -
410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
512-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
625-834985 GROMMETGROMMET
-
723-856954 BUSHINGBUSHING
-
8865479T01 BRACKET, ECM MountBRACKET, ECM Mount
-
910-860008 SCREW, (.250-20 x .625) TorxSCREW, (.250-20 x .625) Torx
-
10899719T07 HARNESS ASSEMBLY, Main Engine
(Digital Throttle and Shift)HARNESS ASSEMBLY, Main Engine
(Digital Throttle and Shift) -
1186-865205 CLIP, Relay MountingCLIP, Relay Mounting
-
1254-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
13883562 COVER, FuseCOVER, Fuse
-
14882751 RELAYRELAY
-
1588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
16865483T BRACKET, Circuit Breaker and RelaysBRACKET, Circuit Breaker and Relays
-
1788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1910-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
2011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2116-863439 STUDSTUD
-
2284-865983T01 HARNESS ASSEMBLY, InjectorsHARNESS ASSEMBLY, Injectors
-
2384-865676T01 HARNESS ASSEMBLY, TransmissionHARNESS ASSEMBLY, Transmission
-
2484-8M0113732 HARNESS ASSEMBLY, Clean PowerHARNESS ASSEMBLY, Clean Power
-
25862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
26828054 COVER, FuseCOVER, Fuse
-
2784-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo) -
2888-79091 FUSE, 20 Ampere
(Bravo)FUSE, 20 Ampere
(Bravo) -
2984-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo) -
308M6000623 SENSOR, Pressure
(Transmission Cooler)SENSOR, Pressure
(Transmission Cooler) -
30881879T11 SENSOR, Pressure (0 - 100 PSI), Pressure
(Oil)SENSOR, Pressure (0 - 100 PSI), Pressure
(Oil) -
318M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
328M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
3237293T SENDER ASSEMBLY, Oil
(Dual Station)SENDER ASSEMBLY, Oil
(Dual Station) -
33816492A15 ALARM KITALARM KIT
-
34864337A1 CONNECTOR, Black, Jumper
(Black Wire)CONNECTOR, Black, Jumper
(Black Wire) -
3511-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
