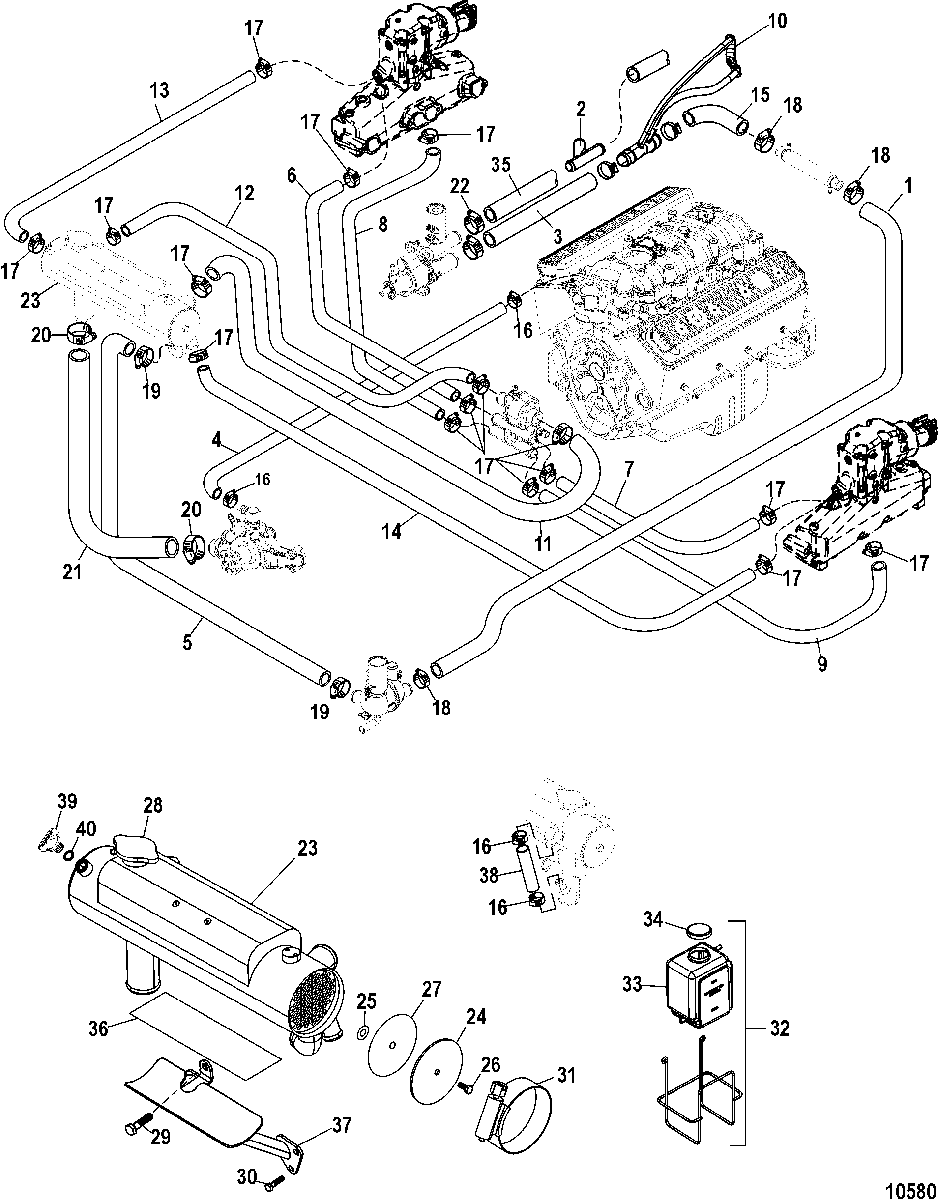

Closed Cooling System для Mercruiser - 350 MAG MPI HORIZON MIE 0W390000 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    32-865247 HOSE, Transmission Cooler to Accumulator Housing
    HOSE, Transmission Cooler to Accumulator Housing
  • 2
    22-864727 FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
    FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
  • 3
    32-865234 HOSE, Sea Water Pump to Water Orifice
    HOSE, Sea Water Pump to Water Orifice
  • 4
    32-864551 HOSE, Intake Bypass to Circulating Pump
    HOSE, Intake Bypass to Circulating Pump
  • 5
    32-864431 HOSE, Distribution Fitting to Heat Exchanger
    HOSE, Distribution Fitting to Heat Exchanger
  • 6
    32-864539 HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(Non Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(Non Riser)
  • 6
    32-864956 HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(3 Inch and 6 Inch Warm Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(3 Inch and 6 Inch Warm Riser)
  • 7
    32-864552 HOSE, Thermostat Housing to Upper Manifold
    (Port)(Non Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Port)(Non Riser)
  • 7
    32-864954 HOSE, Thermostat Housing to Upper Manifold
    (Port)(3 Inch and 6 Inch Warm Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Port)(3 Inch and 6 Inch Warm Riser)
  • 8
    32-864509 HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
    HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
  • 9
    32-864508 HOSE, Thermostat Housing to Lower Manifold
    (Port)
    HOSE, Thermostat Housing to Lower Manifold
    (Port)
  • 10
    22-865317T01 FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
    FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
  • 11
    32-864506 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 12
    32-864507 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 13
    864542 HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser and 3 Inch Warm Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser and 3 Inch Warm Riser)
  • 13
    32-864955 HOSE, Heat Exchanger to Starboard Elbow
    (6 Inch Warm Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (6 Inch Warm Riser)
  • 13
    32-864544 HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(Without Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(Without Riser)
  • 13
    32-864544 HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(3 Inch Warm Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(3 Inch Warm Riser)
  • 13
    32-864974 HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(6 Inch Warm Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (V-Drive)(6 Inch Warm Riser)
  • 14
    32-864726 HOSE, Heat Exchanger to Port Elbow
    (Non Riser and 3 Inch Warm Riser)
    HOSE, Heat Exchanger to Port Elbow
    (Non Riser and 3 Inch Warm Riser)
  • 14
    32-864953 HOSE, Heat Exchanger to Port Elbow
    (6 Inch Warm Riser)
    HOSE, Heat Exchanger to Port Elbow
    (6 Inch Warm Riser)
  • 14
    32-864543 HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(Without Riser)
    HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(Without Riser)
  • 14
    32-864543 HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(3 Inch Warm Riser)
    HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(3 Inch Warm Riser)
  • 14
    32-864973 HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(6 Inch Warm Riser)
    HOSE, Heat Exchanger to Port Elbow
    (V-Drive)(6 Inch Warm Riser)
  • 15
    32-8M2021655 HOSE, Water Orifice to Power Steering Cooler
    HOSE, Water Orifice to Power Steering Cooler
  • 16
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 21
    32-864886 HOSE, Heat Exchanger to Circulating Pump
    HOSE, Heat Exchanger to Circulating Pump
  • 22
    54-815504224 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    864395T01 HEAT EXCHANGER, Closed Cooling
    HEAT EXCHANGER, Closed Cooling
  • 24
    864708 COVER, End, Heat Exchanger
    COVER, End, Heat Exchanger
  • 25
    25-818679 O-RING
    O-RING
  • 26
    10-94247 SCREW, (.375-16 x .750) Stainless Steel
    SCREW, (.375-16 x .750) Stainless Steel
  • 27
    25-8M0084884 SEAL
    SEAL
  • 28
    36-8148791 CAP, Pressure
    CAP, Pressure
  • 29
    10-805559 SCREW, (.375-16 x .875) Stainless Steel
    SCREW, (.375-16 x .875) Stainless Steel
  • 30
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 31
    54-815504396 CLAMP, Worm Gear, Heat Exchanger
    CLAMP, Worm Gear, Heat Exchanger
  • 32
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 33
    71587A11 BOTTLE, Plastic, Coolant Recovery Kit
    BOTTLE, Plastic, Coolant Recovery Kit
  • 34
    72058 CAP, Coolant Recovery Bottle
    CAP, Coolant Recovery Bottle
  • 35
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up
  • 36
    18431 PAD, Heat Exchanger
    PAD, Heat Exchanger
  • 37
    864429T BRACKET, Cooler
    BRACKET, Cooler
  • 38
    32-864533 HOSE
    HOSE
  • 39
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 40
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
