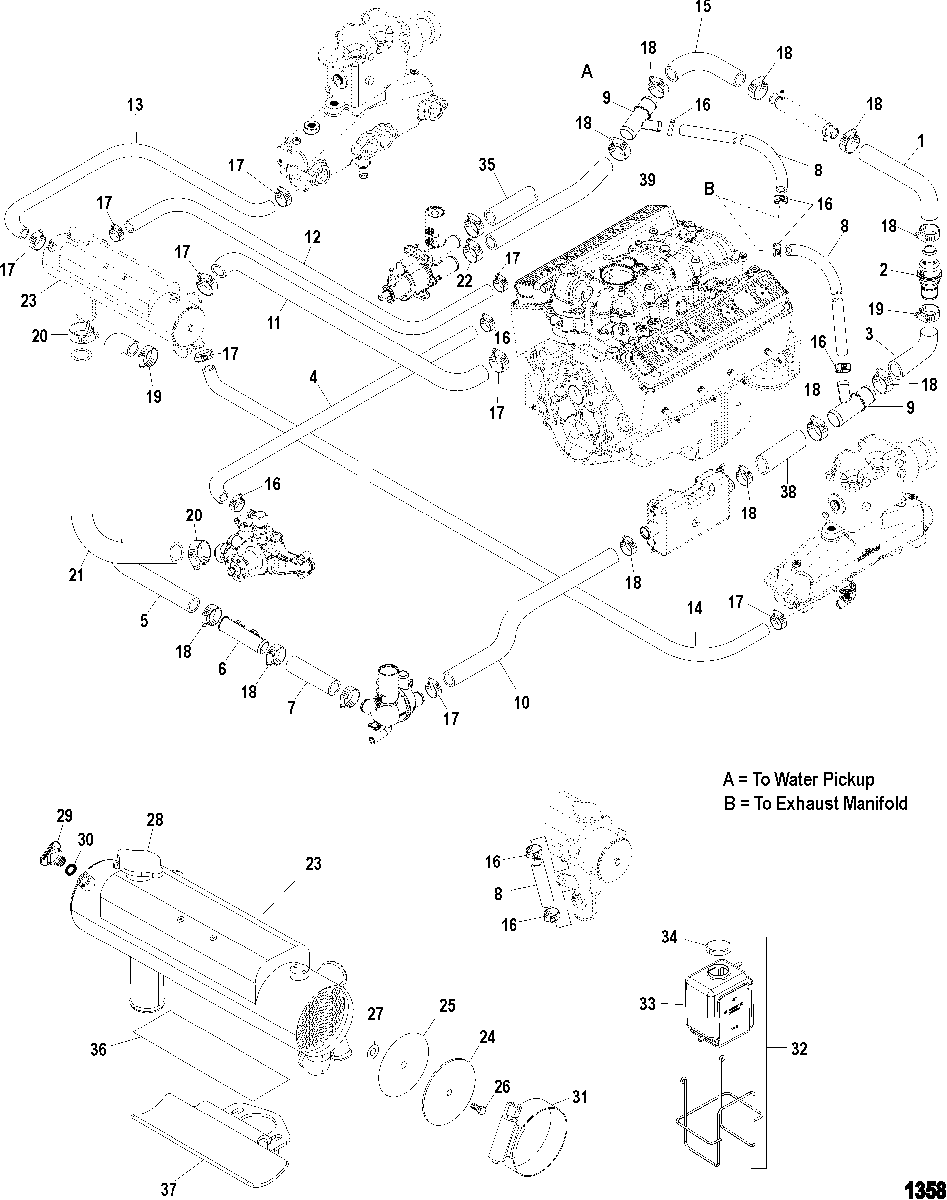

Closed Cooling System для Mercruiser - 350 MAG MPI HORIZON MIE 0M310000 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Transmission Cooler To Check Valve
    HOSE, Transmission Cooler To Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-864480 HOSE, Check Valve To Tee Fitting
    HOSE, Check Valve To Tee Fitting
  • 4
    32-8638871 HOSE, Intake Bypass To Circulating Pump
    HOSE, Intake Bypass To Circulating Pump
  • 5
    32-863793 HOSE, Distribution Fitting To Heat Exchanger
    HOSE, Distribution Fitting To Heat Exchanger
  • 6
    22-864496 FITTING, Distribution
    FITTING, Distribution
  • 7
    32-863490 HOSE, Distribution Fitting To Accumulator Housing
    HOSE, Distribution Fitting To Accumulator Housing
  • 8
    32-8M0062634 HOSE, (44.00 Inches Bulk) (Cut To Size)
    HOSE, (44.00 Inches Bulk) (Cut To Size)
  • 9
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain
  • 10
    32-863670 HOSE, Fuel Cooler To Accumulator Housing
    HOSE, Fuel Cooler To Accumulator Housing
  • 11
    32-863885 HOSE, Heat Exchanger To Thermostat Housing
    HOSE, Heat Exchanger To Thermostat Housing
  • 12
    32-863886 HOSE, Heat Exchanger To Thermostat Housing
    HOSE, Heat Exchanger To Thermostat Housing
  • 13
    32-862125 HOSE, Heat Exchanger To Exhaust Manifold
    (Starboard)
    HOSE, Heat Exchanger To Exhaust Manifold
    (Starboard)
  • 14
    32-860421 HOSE, Heat Exchanger To Exhaust Manifold
    (Port)
    HOSE, Heat Exchanger To Exhaust Manifold
    (Port)
  • 15
    32-864478 HOSE, T Fitting To Trans Cooler, Sea Pump To Trans Cooler
    HOSE, T Fitting To Trans Cooler, Sea Pump To Trans Cooler
  • 16
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 21
    32-861059 HOSE, Heat Exchanger To Circulating Pump
    HOSE, Heat Exchanger To Circulating Pump
  • 22
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    863709A02 HEAT EXCHANGER, Closed Cooling
    HEAT EXCHANGER, Closed Cooling
  • 24
    8M0036623 COVER, Heat Exchanger End
    COVER, Heat Exchanger End
  • 25
    27-8M0036987 GASKET, End Cover
    GASKET, End Cover
  • 26
    10-814877 BOLT
    BOLT
  • 27
    25-8M0039163 O-RING, Special
    O-RING, Special
  • 28
    36-8148791 CAP, Pressure
    CAP, Pressure
  • 29
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 30
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 31
    54-815504388 CLAMP, Worm Gear, Heat Exchanger
    CLAMP, Worm Gear, Heat Exchanger
  • 32
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 33
    71587A11 BOTTLE, Plastic, Coolant Recovery Kit
    BOTTLE, Plastic, Coolant Recovery Kit
  • 34
    72058 CAP, Coolant Recovery Bottle
    CAP, Coolant Recovery Bottle
  • 35
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump To Water Pick Up
    HOSE, (96.00 Inches Bulk), Sea Water Pump To Water Pick Up
  • 36
    18431 PAD, Heat Exchanger
    PAD, Heat Exchanger
  • 37
    863680A1 BRACKET, Cooler
    BRACKET, Cooler
  • 38
    32-864620 HOSE, Tee Fitting To Fuel Cooler
    HOSE, Tee Fitting To Fuel Cooler
  • 39
    32-864477 HOSE, Sea Pump To Tee Fitting
    HOSE, Sea Pump To Tee Fitting
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
