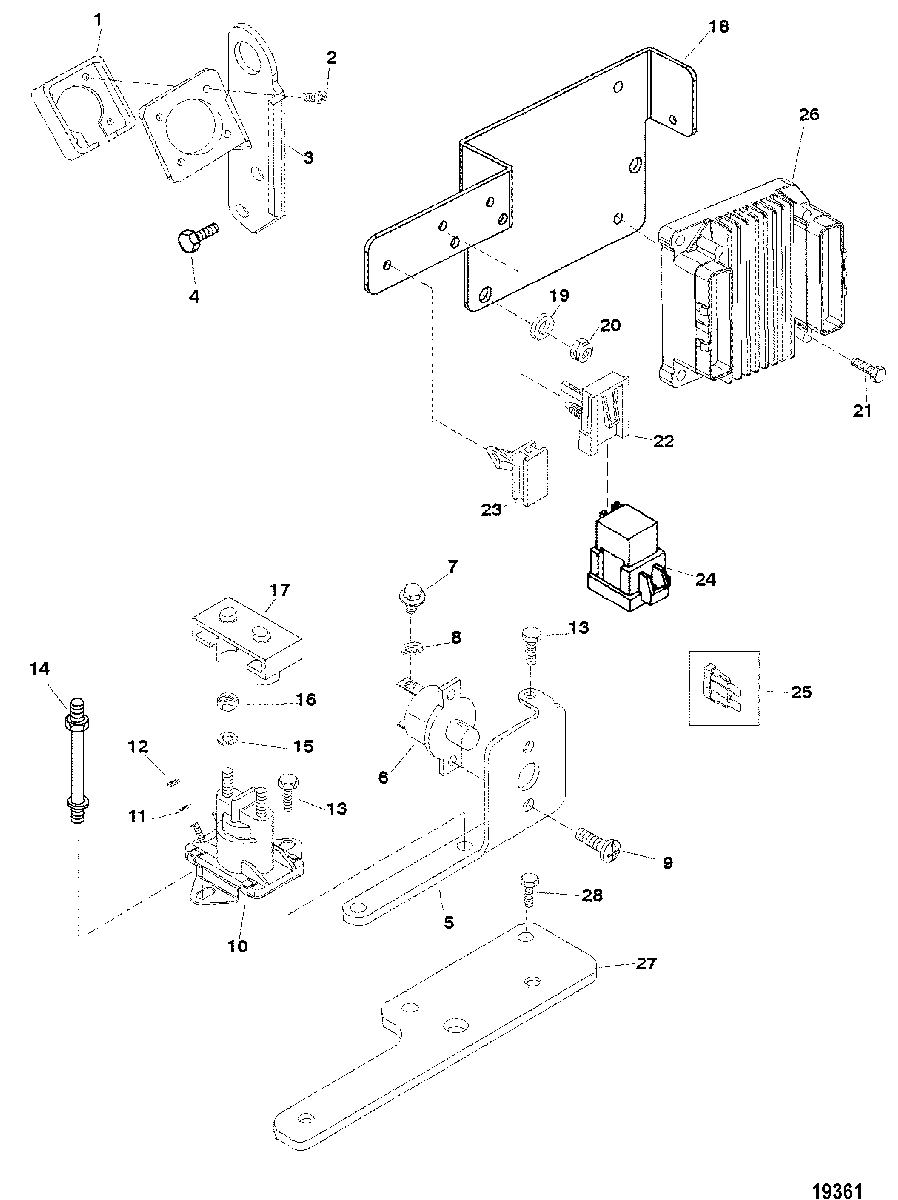

Electrical Components для Mercruiser - 350 MAG MPI HORIZON MIE 0L302200 THRU 0M299999

‹-+›

№

Артикул

Название
1

26079A2 PLATE KIT, Wire Harness Mount

PLATE KIT, Wire Harness Mount
2

10-15001 SCREW, (#8-16 x .875)

SCREW, (#8-16 x .875)
3

865480T BRACKET, Harness Mounting/Lifting Eye

BRACKET, Harness Mounting/Lifting Eye
4

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)
5

899719T01 BRACKET, Electrical

BRACKET, Electrical
6

88-11178A01 BREAKER, Circuit - 50 Ampere

BREAKER, Circuit - 50 Ampere
7

10-68513 SCREW, (#10-32 x .375) Stainless Steel

SCREW, (#10-32 x .375) Stainless Steel
8

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel
9

10-57583T SCREW, (#8-32 x .375)

SCREW, (#8-32 x .375)
10

89-96158T SOLENOID

SOLENOID
11

13-26995 LOCKWASHER, (#8) Stainless Steel

LOCKWASHER, (#8) Stainless Steel
12

11-26419 NUT, (#8-32) Brass

NUT, (#8-32) Brass
13

10-805564 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)
14

16-805459 STUD, Mercathode Mounting

STUD, Mercathode Mounting
15

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel
16

11-94330 NUT, (.250-20) Brass

NUT, (.250-20) Brass
17

85-97861 INSULATOR

INSULATOR
18

861714T BRACKET, ECU Mounting

BRACKET, ECU Mounting
19

12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel

WASHER, (.2656 x .625 x .0625) Stainless Steel
20

11-64015 NUT, (.250-20)

NUT, (.250-20)
21

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)
22

86-865205 CLIP

CLIP
23

54-804352 CLIP

CLIP
24

86-865202T RELAY

RELAY
25

88-83296910 FUSE, Red - 10 Ampere

FUSE, Red - 10 Ampere
25

88-832969T15 FUSE, Mini - Blue - 15 Ampere

FUSE, Mini - Blue - 15 Ampere
26

891895A01 ECM, Engine Control Module

ECM, Engine Control Module
27

861881 BRACKET, Electrical Mounting

BRACKET, Electrical Mounting
28

10-73286 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel
