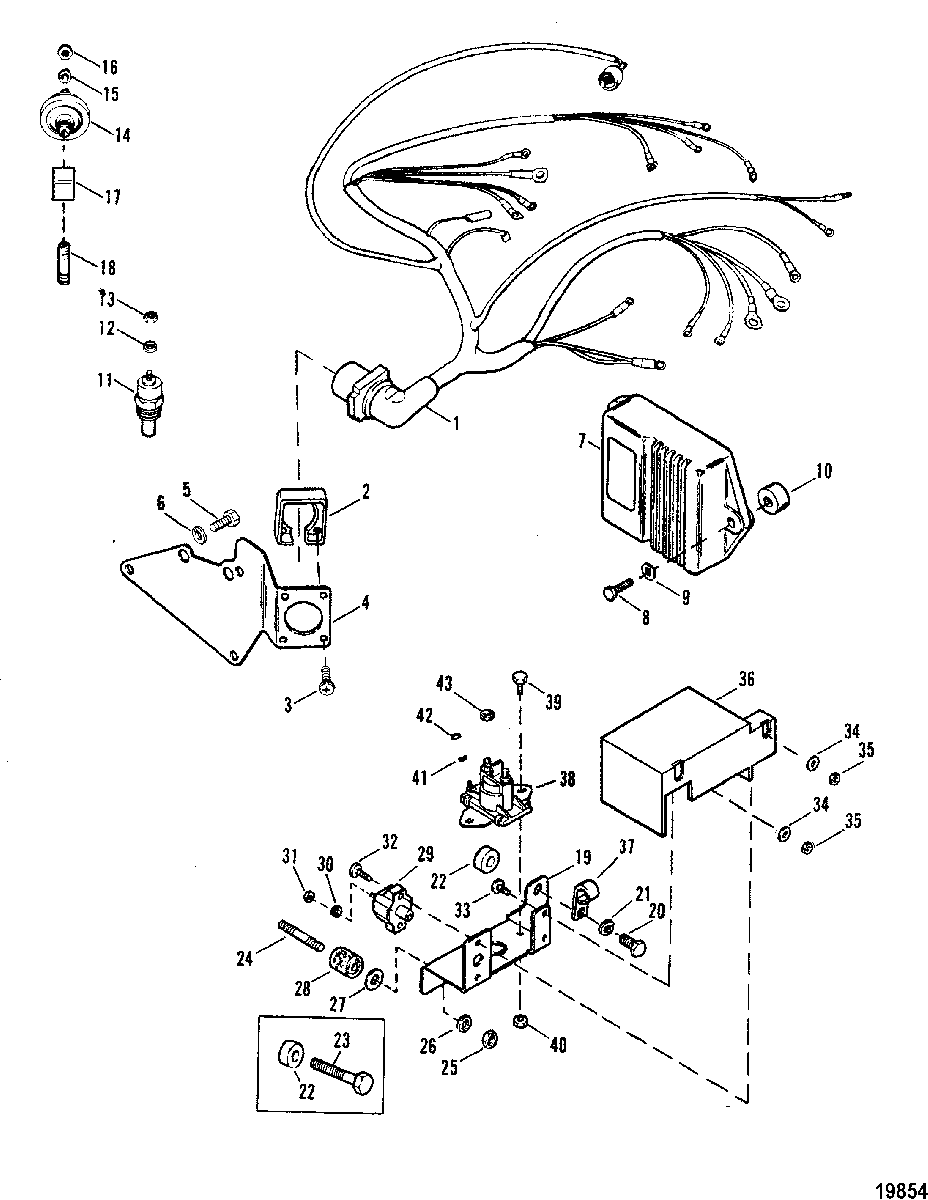

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 260 MIE GM 350 V-8 1981-1986 5907058 THRU 0B522505
-
№АртикулНазвание
-
184-93947A8 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
226079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKETPLATE, WIRING HARNESS TO MOUNTING BRACKET
-
310-34696 SCREW, (#8-32 x .750), WIRING HARNESS PLATESCREW, (#8-32 x .750), WIRING HARNESS PLATE
-
498493A2 BRACKET, MOUNTINGBRACKET, MOUNTING
-
510-54615 SCREW, (.250-20 x .625), MOUNTING BRACKETSCREW, (.250-20 x .625), MOUNTING BRACKET
-
613-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
-
715248T02 IGNITION AMPLIFIERIGNITION AMPLIFIER
-
810-69093 SCREW, (.250-20 x 1.50), IGNITION AMPLIFIERSCREW, (.250-20 x 1.50), IGNITION AMPLIFIER
-
913-26992 LOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREWLOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREW
-
1023-92152T SPACER, (.27 x .75 x .38), IGNITON AMPLIFIER SCREWSPACER, (.27 x .75 x .38), IGNITON AMPLIFIER SCREW
-
1197258A1 SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
1149734 SENDER ASSEMBLY, Water Temperature (DUAL)SENDER ASSEMBLY, Water Temperature (DUAL)
-
1213-26996 LOCKWASHER, (#10) Stainless Steel, WATER TERMPERATURE SENDER TERMINALLOCKWASHER, (#10) Stainless Steel, WATER TERMPERATURE SENDER TERMINAL
-
1311-68219 NUT, (#10-32) Stainless Steel, WATER TEMPERATURE SENDER TERMIANLNUT, (#10-32) Stainless Steel, WATER TEMPERATURE SENDER TERMIANL
-
148M0068784 SENDER, Oil PressureSENDER, Oil Pressure
-
1437293T SENDER ASSEMBLY, Oil Pressure (DUAL)SENDER ASSEMBLY, Oil Pressure (DUAL)
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, OIL PRESSURE SENDER TERMINALLOCKWASHER, (#10) Stainless Steel, OIL PRESSURE SENDER TERMINAL
-
1611-68219 NUT, (#10-32) Stainless Steel, OIL PRESSURE SENDER TERMINALNUT, (#10-32) Stainless Steel, OIL PRESSURE SENDER TERMINAL
-
1722-46932 ELBOW, OIL PRESSURE SENDERELBOW, OIL PRESSURE SENDER
-
1822-885153 NIPPLE, OIL PRESSURE SENDERNIPPLE, OIL PRESSURE SENDER
-
1941170T BRACKET, MOUNTINGBRACKET, MOUNTING
-
2010-98260 SCREW, (.375-16 x .620), MOUNTING BRACKET (STANDARD COOLING)SCREW, (.375-16 x .620), MOUNTING BRACKET (STANDARD COOLING)
-
2010-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET (CLOSED COOLING)SCREW, (.375-16 x 1.250), MOUNTING BRACKET (CLOSED COOLING)
-
2113-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREWLOCKWASHER, (.375), MOUNTING BRACKET SCREW
-
2223-91034 SPACER, (.380 x 1.00 x .530), MOUNTING SCREW OR STUD (CLOSED COOLING)SPACER, (.380 x 1.00 x .530), MOUNTING SCREW OR STUD (CLOSED COOLING)
-
2310-35787 SCREW, (.375-16 x 2.250), MOUNTING BRACKET (CLOSED COOLING)SCREW, (.375-16 x 2.250), MOUNTING BRACKET (CLOSED COOLING)
-
2416-245851 STUD, MOUNTING BRACKET (STANDARD COOLING)STUD, MOUNTING BRACKET (STANDARD COOLING)
-
2511-46335 NUT, MOUNTING BRACKET STUD (STANDARD COOLING)NUT, MOUNTING BRACKET STUD (STANDARD COOLING)
-
2613-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW OR STUDLOCKWASHER, (.375), MOUNTING BRACKET SCREW OR STUD
-
2712-20086 WASHER, (.390 x .620 x .060), MOUNTING BRACKET SCREW OR STUDWASHER, (.390 x .620 x .060), MOUNTING BRACKET SCREW OR STUD
-
2823-15895 SPACER, MOUNTING BRACKET SCREW OR STUDSPACER, MOUNTING BRACKET SCREW OR STUD
-
2988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2988-93582 BREAKER, Circuit - 60 AmpereBREAKER, Circuit - 60 Ampere
-
3013-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINALLOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
3111-27164 NUT AND LOCKWASHER, (#10-32), CIRCUIT BREAKER TERMINALNUT AND LOCKWASHER, (#10-32), CIRCUIT BREAKER TERMINAL
-
3210-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER (7/8")SCREW, (#10-32 x .875), CIRCUIT BREAKER (7/8")
-
3310-71405 SCREW, (#10-32 x .440), INSULATORSCREW, (#10-32 x .440), INSULATOR
-
3412-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, CIRCUIT BREAKER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, CIRCUIT BREAKER SCREW
-
3511-46438 NUT, (#10-32), INSULATOR SCREWNUT, (#10-32), INSULATOR SCREW
-
3685-96819T INSULATOR, CIRCUIT BREAKERINSULATOR, CIRCUIT BREAKER
-
3754-78945 J CLAMP, Harness Support-BRACKET SCREWJ CLAMP, Harness Support-BRACKET SCREW
-
3889-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
3910-96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")
-
4011-20088 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
4113-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
-
4211-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINALNUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
-
4311-94330 NUT, (.250-20) Brass, STARTER SOLENOID TERMINALNUT, (.250-20) Brass, STARTER SOLENOID TERMINAL
