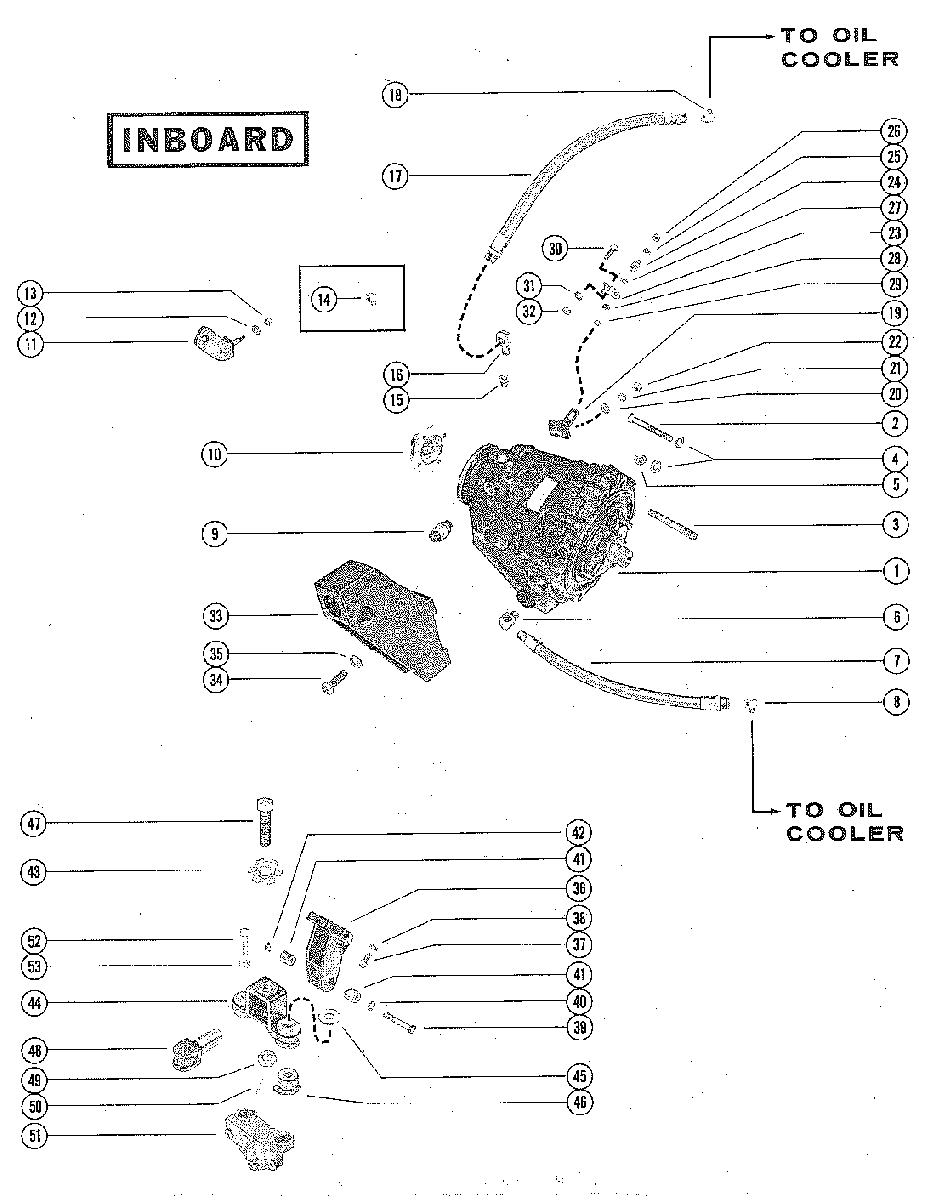

TRANSMISSION ASSEMBLY (INBOARD) для Mercruiser - 250 MIE GM 327 V-8 1968-1969 2314301 THRU 2639854
-
№АртикулНазвание
-
147805A7 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147806R07 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
316-57921 STUD, TRANSMISSION TO ENGINE (4")STUD, TRANSMISSION TO ENGINE (4")
-
413-32993 LOCKWASHER, TRANSMISSION SCREW AND STUDLOCKWASHER, TRANSMISSION SCREW AND STUD
-
511-22024 NUT, TRANSMISSION STUDNUT, TRANSMISSION STUD
-
622-47629 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
732-4751612 HOSE, OIL COOLER TO TRANSMISSION (13 7/8")HOSE, OIL COOLER TO TRANSMISSION (13 7/8")
-
732-475163 HOSE, OIL COLLER TO TRANSMISSION (7 7/8")HOSE, OIL COLLER TO TRANSMISSION (7 7/8")
-
822-47630 ELBOW, HOSE TO OIL COOLER (90)ELBOW, HOSE TO OIL COOLER (90)
-
947613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
1087917A1 FLANGE (1")FLANGE (1")
-
1087917A2 FLANGE (1 1/8")FLANGE (1 1/8")
-
1087917A3 FLANGE (1 1/4")FLANGE (1 1/4")
-
1048384A1 FLANGE (1 3/8")FLANGE (1 3/8")
-
1087917A5 FLANGE (1 1/2")FLANGE (1 1/2")
-
1148648 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
1212-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
1311-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)NUT, SHIFT CABLE TO BRACKET STUD (10-32)
-
1422-47629 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
1523-36159 BUSHING, REDUCING - TRANSMISSION ELBOWBUSHING, REDUCING - TRANSMISSION ELBOW
-
1622-47631 ELBOW, HOSE TPO TRANSMISSION (90)ELBOW, HOSE TPO TRANSMISSION (90)
-
1732-4751612 HOSE, TRANSMISSION TO OIL COOLER (15")HOSE, TRANSMISSION TO OIL COOLER (15")
-
1732-4751612 HOSE, TRANSMISSION TO COOLER (16 3/4")HOSE, TRANSMISSION TO COOLER (16 3/4")
-
1822-47630 ELBOW, HOSE TO OIL COOLER (90)ELBOW, HOSE TO OIL COOLER (90)
-
1948515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2012-20722 WASHER, LEVEL TO TRANSMISSIONWASHER, LEVEL TO TRANSMISSION
-
2113-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSIONLOCKWASHER, SHIFT LEVER TO TRANSMISSION
-
2211-22053 NUT, SHIFT TO TRANSMISSIONNUT, SHIFT TO TRANSMISSION
-
2348652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2416-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2512-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2611-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4 - 28)NUT, SHIFT CABLE ADAPTOR STUD (1/4 - 28)
-
2713-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
2812-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2911-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)NUT, SHIFT CABLE ADAPTOR STUD (10-32)
-
3010-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
-
3112-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3211-29250 NUT, SHIFT CABLE SCREW (5/167 - 24)NUT, SHIFT CABLE SCREW (5/167 - 24)
-
3347501 BRACKET, MOUNTING (REAR)BRACKET, MOUNTING (REAR)
-
3410-37269 SCREW, MOUNTING BRACKET TO TRANSMISSIONSCREW, MOUNTING BRACKET TO TRANSMISSION
-
3513-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3647499 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
3710-48424 SCREW, MOUNTING BRACKET TO CLINDER BLOCK (1 5/8")SCREW, MOUNTING BRACKET TO CLINDER BLOCK (1 5/8")
-
3813-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3910-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
4013-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
4154-47528 CLAMP, ADJUSTING TRUNNIONCLAMP, ADJUSTING TRUNNION
-
4211-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
4314-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
4447601A2 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 00000000-02630774BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 00000000-02630774 -
4512-48611 WASHER, MOUNTING BRACKET
SERIAL 00000000-02630774WASHER, MOUNTING BRACKET
SERIAL 00000000-02630774 -
4647656 MOUNT. MOUNTING BRACKET
SERIAL 00000000-02630774MOUNT. MOUNTING BRACKET
SERIAL 00000000-02630774 -
4710-47652 SCREW, ADJUSTNG TRUNNION (3 5/8")
SERIAL 00000000-02630774SCREW, ADJUSTNG TRUNNION (3 5/8")
SERIAL 00000000-02630774 -
4452139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 02630775-09999999BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 02630775-09999999 -
4512-48611 WASHER, MOUNTING BRACKET
SERIAL 02630775-09999999WASHER, MOUNTING BRACKET
SERIAL 02630775-09999999 -
4647656 MOUNT. MOUNTING BRACKET
SERIAL 02630775-09999999MOUNT. MOUNTING BRACKET
SERIAL 02630775-09999999 -
4710-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02630775-09999999SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02630775-09999999 -
4847518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
4911-47525 NUT, JAM - ADJUSTING TRUNNION BRACKETNUT, JAM - ADJUSTING TRUNNION BRACKET
-
5017-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
5147986 BRACKET, MOUNTING - ENGINE
SERIAL 02630775-09999999BRACKET, MOUNTING - ENGINE
SERIAL 02630775-09999999 -
5210-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
SERIAL 02630775-09999999SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
SERIAL 02630775-09999999 -
5313-31848 LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02630775-09999999LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02630775-09999999
Все узлы модели:
- CARBURETOR ASSEMBLY, COMPLETE
- CYLINDER BLOCK, PISTON AND CRANKSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR ASSEMBLY, COMPLETE
- ENGINE MOUNTING STERN DRIVE
- EXHAUST KIT
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- FLYWHEEL HOUSING AND OIL COOLER
- FUEL PUMP, FUEL FILTER AND CARBURETOR AUTOMATIC CHOKE
- FUEL PUMP, FUEL FILTER AND CARBURETOR ELECTRIC CHOKE
- INTAKE MANIFOLD AND OIL PUMP
- REMOTE OIL FILTER INBOARD
- REVERSE LOCK VALVE ASSEMBLY AND SHIFT LEVER
- STARTER MOTOR AND ALTERNATOR
- • TRANSMISSION ASSEMBLY (INBOARD)
- TRANSMISSION ASSEMBLY (STERN DRIVE)
- WATER PUMP ASSEMBLY, COMPLETE
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
