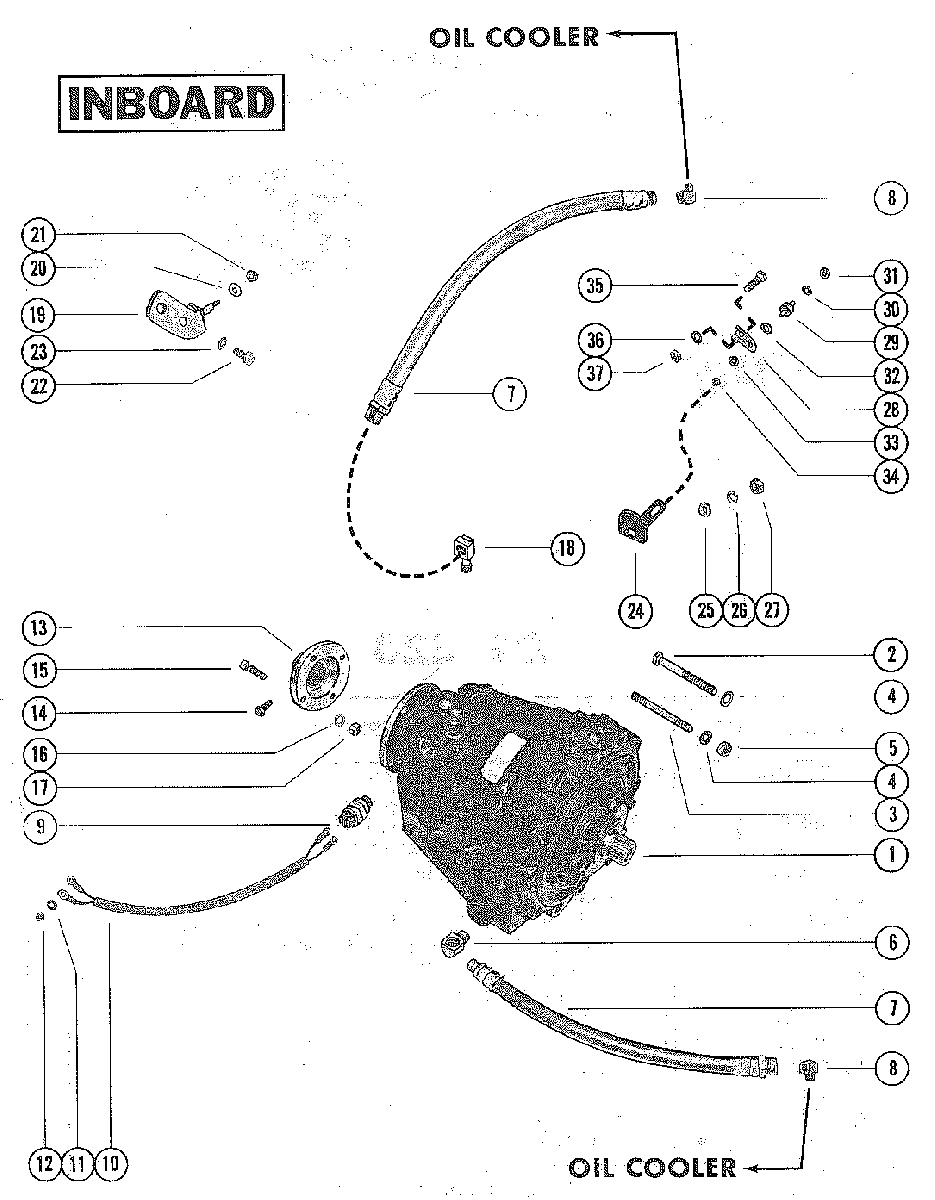

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION (DIRECT DRIVE)
    TRANSMISSION (DIRECT DRIVE)
  • 1
    47806R07 TRANSMISSION (1.523:1 REDUCTION)
    TRANSMISSION (1.523:1 REDUCTION)
  • 1
    47807A7 TRANSMISSION 1.523:1 REDUCTION
    TRANSMISSION 1.523:1 REDUCTION
  • 1
    47808R07 TRANSMISSION (2.57:1 REDUCTION)
    TRANSMISSION (2.57:1 REDUCTION)
  • 1
    47809A7 TRANSMISSION (2.909:1 REDUCTION)
    TRANSMISSION (2.909:1 REDUCTION)
  • 2
    10-47724 SCREW, TRANSMISSION TO ENGINE (3")
    SCREW, TRANSMISSION TO ENGINE (3")
  • 2
    10-60179 SCREW, TRANSMISSION TO ENGINE (3 1/2")
    SCREW, TRANSMISSION TO ENGINE (3 1/2")
  • 3
    16-57921 STUD, TRANSMISSION TO ENGINE (4")
    STUD, TRANSMISSION TO ENGINE (4")
  • 4
    13-32993 LOCKWASHER, TRANSMISSION SCREW AND STUD
    LOCKWASHER, TRANSMISSION SCREW AND STUD
  • 5
    11-22024 NUT, TRANSMISSION STUD
    NUT, TRANSMISSION STUD
  • 6
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 6
    22-63835 ELBOW, HOSE TO TRANSMISSION (45 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (45 DEGREES)
  • 7
    32-475166 HOSE, TRANSMISSION TO OIL COOLER (28")
    HOSE, TRANSMISSION TO OIL COOLER (28")
  • 7
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (20")
    HOSE, TRANSMISSION TO OIL COOLER (20")
  • 7
    32-475166 HOSE, TRANSMISSION TO OIL COOLER (30")
    HOSE, TRANSMISSION TO OIL COOLER (30")
  • 8
    22-47629 ELBOW, HOSE TO OIL COOLER
    ELBOW, HOSE TO OIL COOLER
  • 9
    47613 SWITCH, NEUTRALL SAFTEY
    SWITCH, NEUTRALL SAFTEY
  • 10
    84-73125A1 HARNESS NEUTRAL SAFTEY SWITCH
    HARNESS NEUTRAL SAFTEY SWITCH
  • 11
    13-26996 LOCKWASHER, HARNESS ATTACHING
    LOCKWASHER, HARNESS ATTACHING
  • 12
    11-68219 NUT, HARNESS ATTACHING
    NUT, HARNESS ATTACHING
  • 13
    87917A1 FLANGE ASSEMBLY (1") SEE NOTE A
    FLANGE ASSEMBLY (1") SEE NOTE A
  • 13
    87917A2 FLANGE ASSEMBLY (1 1/8") SEE NOTE A
    FLANGE ASSEMBLY (1 1/8") SEE NOTE A
  • 13
    87917A3 FLANGE ASSEMBLY (1 1/4") SEE NOTE A
    FLANGE ASSEMBLY (1 1/4") SEE NOTE A
  • 13
    48384A1 FLANGE ASSEMBLY (1 3/8") SEE NOTE A
    FLANGE ASSEMBLY (1 3/8") SEE NOTE A
  • 13
    87917A5 FLANGE ASSEMBLY (1 1/2") SEE NOTE A
    FLANGE ASSEMBLY (1 1/2") SEE NOTE A
  • 13
    79476A1 FLANGE ASSEMBLY (1") SEE NOTE B
    FLANGE ASSEMBLY (1") SEE NOTE B
  • 13
    79476A2 FLANGE ASSEMBLY (1 1/8") SEE NOTE B
    FLANGE ASSEMBLY (1 1/8") SEE NOTE B
  • 13
    79476A3 FLANGE ASSEMBLY (1 1/4") SEE NOTE B
    FLANGE ASSEMBLY (1 1/4") SEE NOTE B
  • 13
    79476A4 FLANGE ASSEMBLY (1 3/8") SEE NOTE B
    FLANGE ASSEMBLY (1 3/8") SEE NOTE B
  • 13
    79476A5 FLANGE ASSEMBLY (1 1/2") SEE NOTE B
    FLANGE ASSEMBLY (1 1/2") SEE NOTE B
  • 14
    10-60168 SCREW, FLANGE TO PROPELLER SHAFT (1 1/2") SEE NOTE A AND B
    SCREW, FLANGE TO PROPELLER SHAFT (1 1/2") SEE NOTE A AND B
  • 14
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4") SEE NOTE A AND B
    SCREW, FLANGE TO PROPELLER SHAFT (1 1/4") SEE NOTE A AND B
  • 14
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1") SEE NOTE A AND B
    SCREW, FLANGE TO PROPELLER SHAFT (1") SEE NOTE A AND B
  • 14
    10-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4") SEE NOTE A AND B
    SCREW, FLANGE TO PROPELLER SHAFT (3/4") SEE NOTE A AND B
  • 15
    10-37909 SCREW, FLANGE TO PROPELLER SHAFT (1 1/8")
    SCREW, FLANGE TO PROPELLER SHAFT (1 1/8")
  • 16
    13-35048 LOCKWASHER, TRANSMISSION FLANGE SCREW
    LOCKWASHER, TRANSMISSION FLANGE SCREW
  • 17
    11-46335 NUT, TRANSMISSION FLANGE SCREW
    NUT, TRANSMISSION FLANGE SCREW
  • 15
    10-60106 SCREW, FLANGE TO PROPELLER FLANGE (1 1/4")
    SCREW, FLANGE TO PROPELLER FLANGE (1 1/4")
  • 16
    13-32993 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 17
    11-22024 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 18
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 18
    22-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 19
    63815A1 BRACKET, SHIFT CABLE
    BRACKET, SHIFT CABLE
  • 20
    12-56681 WASHER, SHIFT CABLE TO BRACKET STUD
    WASHER, SHIFT CABLE TO BRACKET STUD
  • 21
    11-46438 NUT, SHAFT CABLE TO BRACKET STUD (10-32)
    NUT, SHAFT CABLE TO BRACKET STUD (10-32)
  • 22
    10-65746 SCREW, BRACKET TO TRANSMISSION (3/4")
    SCREW, BRACKET TO TRANSMISSION (3/4")
  • 23
    13-26992 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 24
    48515 LEVER, SHIFT SHIFT-TRANSMISSION
    LEVER, SHIFT SHIFT-TRANSMISSION
  • 25
    12-20722 WASHER, SHIFT LEVER TO TRANSMISSION
    WASHER, SHIFT LEVER TO TRANSMISSION
  • 26
    13-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSION
    LOCKWASHER, SHIFT LEVER TO TRANSMISSION
  • 27
    11-22053 NUT, SHIFT LEVER TO TRANSMISSION
    NUT, SHIFT LEVER TO TRANSMISSION
  • 28
    48652 ADAPTOR, SHIFT CABLE TO SHIFT LEVER
    ADAPTOR, SHIFT CABLE TO SHIFT LEVER
  • 29
    16-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
    STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
  • 30
    12-20533 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 31
    11-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
    NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
  • 32
    13-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUD
    WAVE WASHER, SHIFT CABLE ADAPTOR STUD
  • 33
    12-56681 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 34
    11-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)
    NUT, SHIFT CABLE ADAPTOR STUD (10-32)
  • 35
    10-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
    SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
  • 36
    12-22753 WASHER, SHIFT CABLE SCREW
    WASHER, SHIFT CABLE SCREW
  • 37
    11-29250 NUT, SHIFT CABLE SCREW (5/16-24)
    NUT, SHIFT CABLE SCREW (5/16-24)
