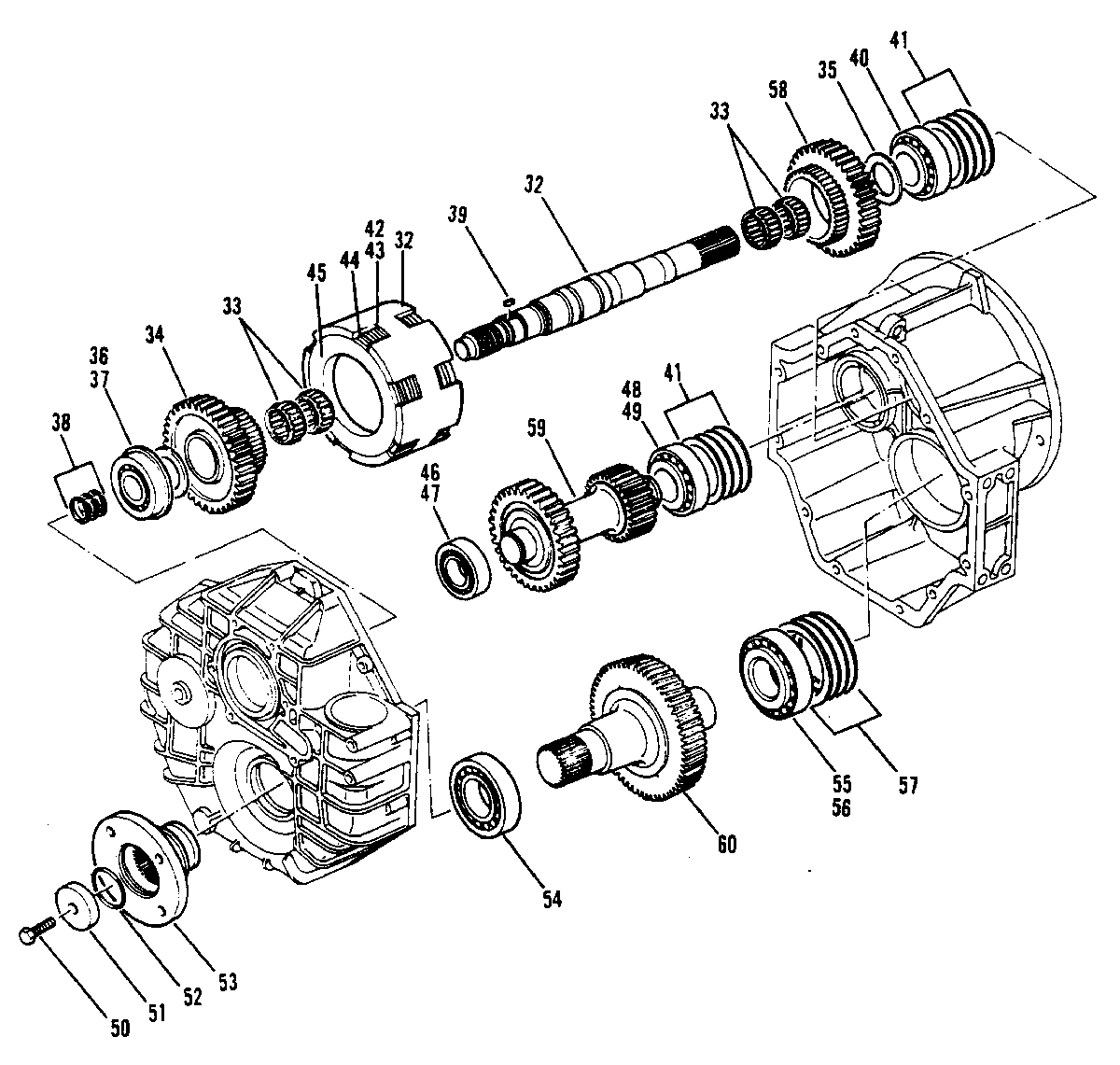

TRANSMISSION ASSEMBLY для Mercruiser - WO4CTI (210 HP) HINO 234 I/L4 ALL

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION ASSEMBLY (1.5:1 RATIO)
    TRANSMISSION ASSEMBLY (1.5:1 RATIO)
  • -
    863744T3 TRANSMISSION ASSEMBLY (2.0:0 RATIO)
    TRANSMISSION ASSEMBLY (2.0:0 RATIO)
  • -
    863744T4 TRANSMISSION ASSEMBLY (2.5:1 RATIO)
    TRANSMISSION ASSEMBLY (2.5:1 RATIO)
  • 32
    813306 INPUT SHAFT
    INPUT SHAFT
  • 33
    31-813307 BEARING-Roller
    BEARING-Roller
  • 34
    43-813308 GEAR
    GEAR
  • 35
    12-813309 WASHER
    WASHER
  • 36
    31-852066 BEARING-Tapered Roller (INNER)
    BEARING-Tapered Roller (INNER)
  • 37
    31-852066 BEARING-Tapered Roller (OUTER)
    BEARING-Tapered Roller (OUTER)
  • 38
    53-813312 SNAP RING
    SNAP RING
  • 39
    28-813313 KEY
    KEY
  • 40
    30-813314 BEARING-Ball
    BEARING-Ball
  • 41
    15-813315 SHIM (.10MM)
    SHIM (.10MM)
  • 41
    15-813316 SHIM (.15MM)
    SHIM (.15MM)
  • 41
    15-813317 SHIM (.20MM)
    SHIM (.20MM)
  • 41
    15-813318 SHIM (.50MM)
    SHIM (.50MM)
  • 42
    813319 DISC-Inner Clutch
    DISC-Inner Clutch
  • 43
    813320 DISC-Outer Clutch
    DISC-Outer Clutch
  • 44
    53-813321 SNAP RING
    SNAP RING
  • 45
    813322 PRESSURE DISC
    PRESSURE DISC
  • 46
    31-813323 BEARING-Tapered Roller (INNER)
    BEARING-Tapered Roller (INNER)
  • 47
    31-813324 BEARING-Tapered Roller (OUTER)
    BEARING-Tapered Roller (OUTER)
  • 48
    31-813325 BEARING-Tapered Roller (INNER)
    BEARING-Tapered Roller (INNER)
  • 49
    31-813326 BEARING-Tapered Roller (OUTER)
    BEARING-Tapered Roller (OUTER)
  • 50
    10-813327 SCREW
    SCREW
  • 51
    23-813328 SPACER
    SPACER
  • 52
    25-813329 O-RING
    O-RING
  • 53
    813330 FLANGE-Output
    FLANGE-Output
  • 54
    31-813331 BEARING-Tapered Roller
    BEARING-Tapered Roller
  • 55
    31-813332 BEARING-Tapered Roller (INNER)
    BEARING-Tapered Roller (INNER)
  • 56
    31-813333 BEARING-Tapered Roller (OUTER)
    BEARING-Tapered Roller (OUTER)
  • 57
    15-813334 SHIM (.10MM)
    SHIM (.10MM)
  • 57
    15-813335 SHIM (.15MM)
    SHIM (.15MM)
  • 57
    15-813336 SHIM (.30MM)
    SHIM (.30MM)
  • 57
    15-813337 SHIM (.50MM)
    SHIM (.50MM)
  • 58
    43-813338 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 59
    813339 SHAFT-Intermediate
    1.5:1 RATIO
    SHAFT-Intermediate
    1.5:1 RATIO
  • 60
    813340 OUTPUT SHAFT
    1.5:1 RATIO
    OUTPUT SHAFT
    1.5:1 RATIO
  • 58
    43-813341 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 59
    813342 SHAFT-Intermediate
    2.0:1 RATIO
    SHAFT-Intermediate
    2.0:1 RATIO
  • 60
    813343 OUTPUT SHAFT
    2.0:1 RATIO
    OUTPUT SHAFT
    2.0:1 RATIO
  • 58
    43-813344 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
  • 59
    813345 SHAFT-Intermediate
    2.5:1 RATIO
    SHAFT-Intermediate
    2.5:1 RATIO
  • 60
    813346 OUTPUT SHAFT
    2.5:1 RATIO
    OUTPUT SHAFT
    2.5:1 RATIO
