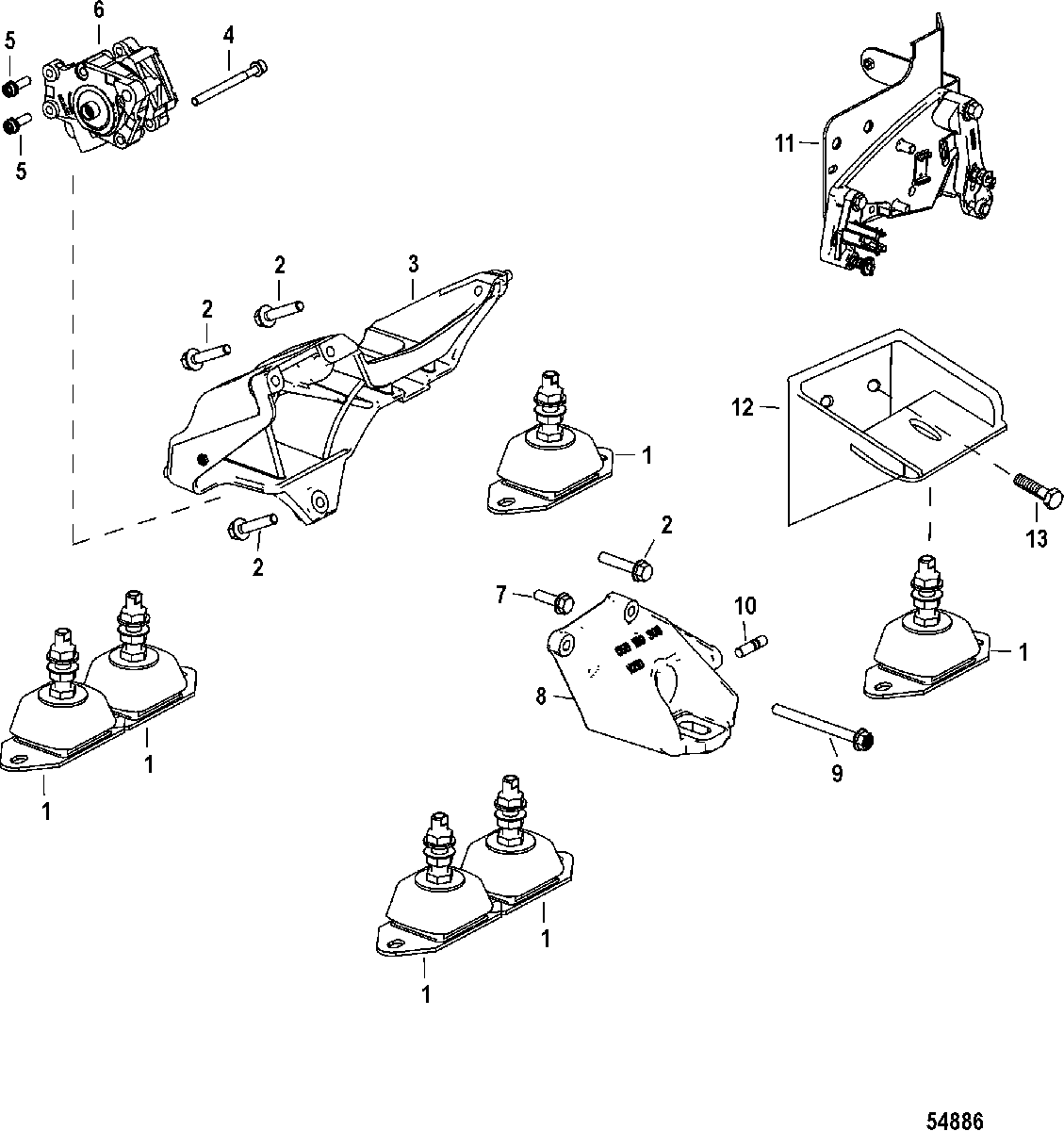

MOUNTS, OIL PUMP, AND SHIFT BRACKET для Mercruiser - TDI 4.2L 335 MCM CMC000200 & Up

  • №
    Артикул
    Название
  • 1
    8M0118755 VIBRATION ISOLATOR
    Inboard
    VIBRATION ISOLATOR
    Inboard
  • 1
    8M0118755 VIBRATION ISOLATOR, Front
    Jackshaft/Jet Models
    VIBRATION ISOLATOR, Front
    Jackshaft/Jet Models
  • 1
    8M0104773 MOUNT ASSEMBLY, Rear
    Jackshaft/Jet Models
    MOUNT ASSEMBLY, Rear
    Jackshaft/Jet Models
  • 1
    8M0118755 VIBRATION ISOLATOR , Sterndrive
    VIBRATION ISOLATOR , Sterndrive
  • 2
    10-8M0068294 SCREW , M10x50
    SCREW , M10x50
  • 3
    8M0090641 ENGINE MOUNT
    ENGINE MOUNT
  • 4
    10-8M0089078 BOLT, (M12x115)
    BOLT, (M12x115)
  • 5
    10-8M0068558 SCREW , M8x25
    SCREW , M8x25
  • 6
    8M0119774 PUMP, Power Steering
    PUMP, Power Steering
  • NS
    8M0086448 SHAFT, Pump Drive
    SHAFT, Pump Drive
  • 7
    10-8M0068363 SCREW , M10x35
    SCREW , M10x35
  • 8
    8M0066809 BRACKET
    BRACKET
  • 9
    10-8M0068372 SCREW , M10x115
    SCREW , M10x115
  • 10
    8M0089331 STUD, M10
    STUD, M10
  • 11
    99237A27 BRACKET ASSEMBLY, Shift
    Mechanical Models
    BRACKET ASSEMBLY, Shift
    Mechanical Models
  • 11
    8M0111459 SHIFT ACTUATOR ASSEMBLY
    DTS Models
    SHIFT ACTUATOR ASSEMBLY
    DTS Models
  • 12
    8M0099419 BRACKET, Mount
    ZF 63IV
    BRACKET, Mount
    ZF 63IV
  • 12
    8M0066820 BRACKET, Mount
    ZF 63A
    BRACKET, Mount
    ZF 63A
  • 13
    8M0068296 SCREW , M12x35
    SCREW , M12x35
