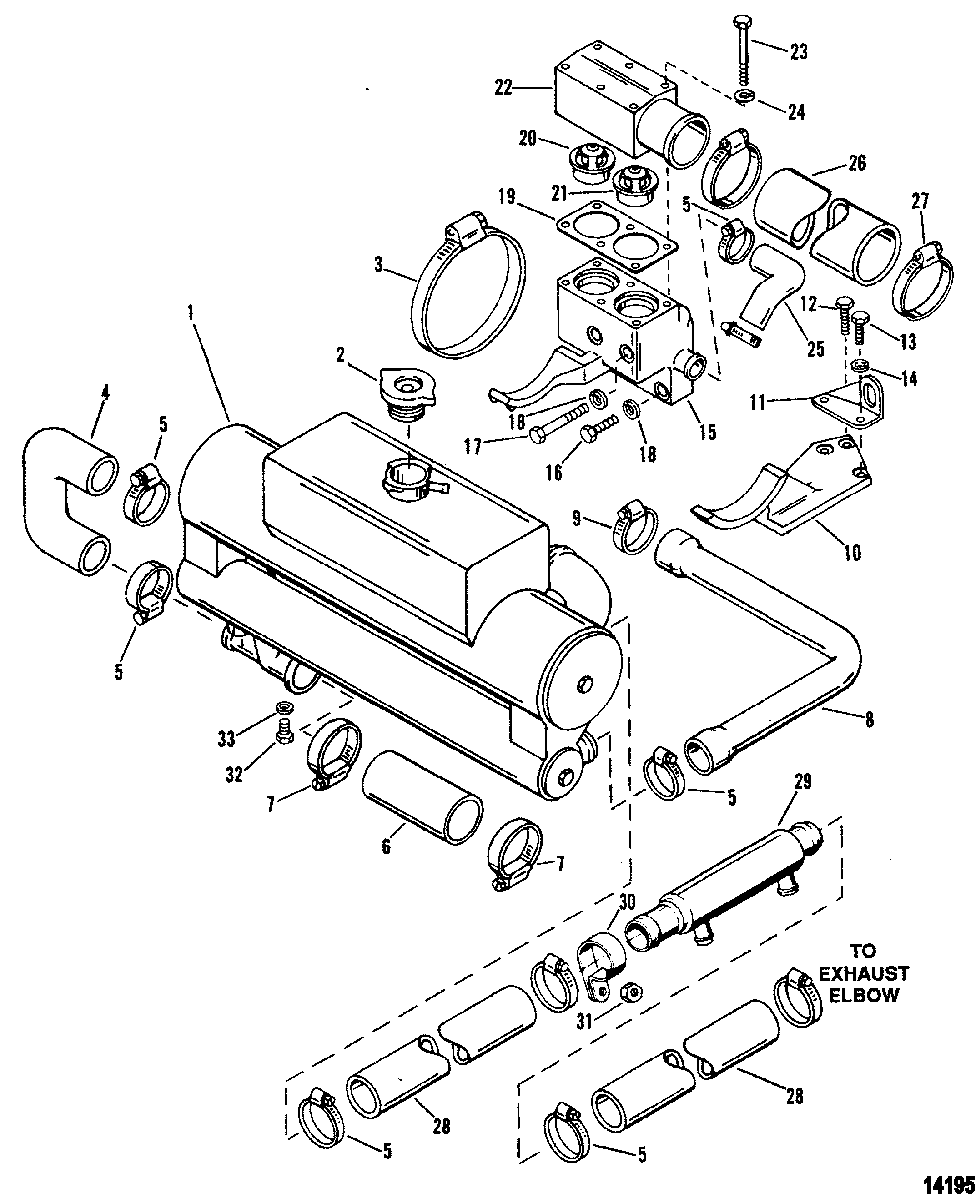

Heat Exchanger And Hoses для Mercruiser - D3.6L (BRAVO) VM 219 I/L6 0D850128 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    806830T HEAT EXCHANGER
    (3.0L) SN# 0D72545 & Below
    HEAT EXCHANGER
    (3.0L) SN# 0D72545 & Below
  • 1
    806830T HEAT EXCHANGER
    (3.6L) SN# 0F30692 & Below
    HEAT EXCHANGER
    (3.6L) SN# 0F30692 & Below
  • 1
    8M0071811 HEAT EXCHANGER
    (3.0L) SN# 0D72546 & Up
    HEAT EXCHANGER
    (3.0L) SN# 0D72546 & Up
  • 1
    8M0071811 HEAT EXCHANGER
    (3.6L) SN# 0F30693 & Up
    HEAT EXCHANGER
    (3.6L) SN# 0F30693 & Up
  • 2
    36-808108 CAP
    CAP
  • -
    97-806000 ANODE
    ANODE
  • -
    10-88743 SCREW, (.312-18 x .500), Oil Cooler End Plate
    SCREW, (.312-18 x .500), Oil Cooler End Plate
  • -
    806002A1 END CAP ASSEMBLY, Oil Cooler
    END CAP ASSEMBLY, Oil Cooler
  • -
    27-806882 GASKET, Oil Cooler End Plate
    GASKET, Oil Cooler End Plate
  • -
    10-846109 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • -
    806884A1 END CAP ASSEMBLY, Heat Exchanger
    (3.0L) SN# 0D72545 & Below
    END CAP ASSEMBLY, Heat Exchanger
    (3.0L) SN# 0D72545 & Below
  • -
    806884A1 END CAP ASSEMBLY, Heat Exchanger
    (3.6L) SN# 0F30692 & Below
    END CAP ASSEMBLY, Heat Exchanger
    (3.6L) SN# 0F30692 & Below
  • -
    860319A1 END COVER, Heat Exchanger
    (3.0L) SN# 0F306930 & Up
    END COVER, Heat Exchanger
    (3.0L) SN# 0F306930 & Up
  • -
    25-8M0084884 GASKET, Heat Exchanger
    GASKET, Heat Exchanger
  • 3
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 4
    32-805741 HOSE
    HOSE
  • 5
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 6
    32-805743 HOSE
    HOSE
  • 7
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 8
    32-805740 HOSE
    HOSE
  • 9
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 10
    884002 BRACKET
    BRACKET
  • 11
    811372 LIFTING EYE
    LIFTING EYE
  • 12
    10-809919669 SCREW
    SCREW
  • 13
    10-809913843 BOLT
    BOLT
  • 14
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 15
    879172210 HOUSING
    HOUSING
  • 16
    10-1994360 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 17
    10-4000363 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 18
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 19
    27-805723 GASKET
    GASKET
  • 20
    805947T THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 21
    805948 THERMOSTAT, 82A°C (180A°F)
    THERMOSTAT, 82A°C (180A°F)
  • 22
    879288013 COVER, Thermostat Housing
    COVER, Thermostat Housing
  • 23
    10-4009238 SCREW, (M6 x 80)
    SCREW, (M6 x 80)
  • 24
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 25
    32-805744 HOSE
    HOSE
  • 26
    32-805739 HOSE
    HOSE
  • 27
    54-815504240 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 28
    32-1743565 HOSE
    HOSE
  • 29
    99356A2 COOLER ASSEMBLY
    (Stern Drive)
    COOLER ASSEMBLY
    (Stern Drive)
  • 29
    63832A1 COOLER
    (Inboard)
    COOLER
    (Inboard)
  • 30
    54-18904 CLIP
    CLIP
  • 31
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 32
    10-879194148 SCREW, (M22 x 1.5)
    SCREW, (M22 x 1.5)
  • 33
    12-809963354 WASHER
    WASHER
  • 34
    37-8057291 DECAL
    (3.0L)
    DECAL
    (3.0L)
  • 35
    37-8057292 DECAL
    (3.6L)
    DECAL
    (3.6L)
