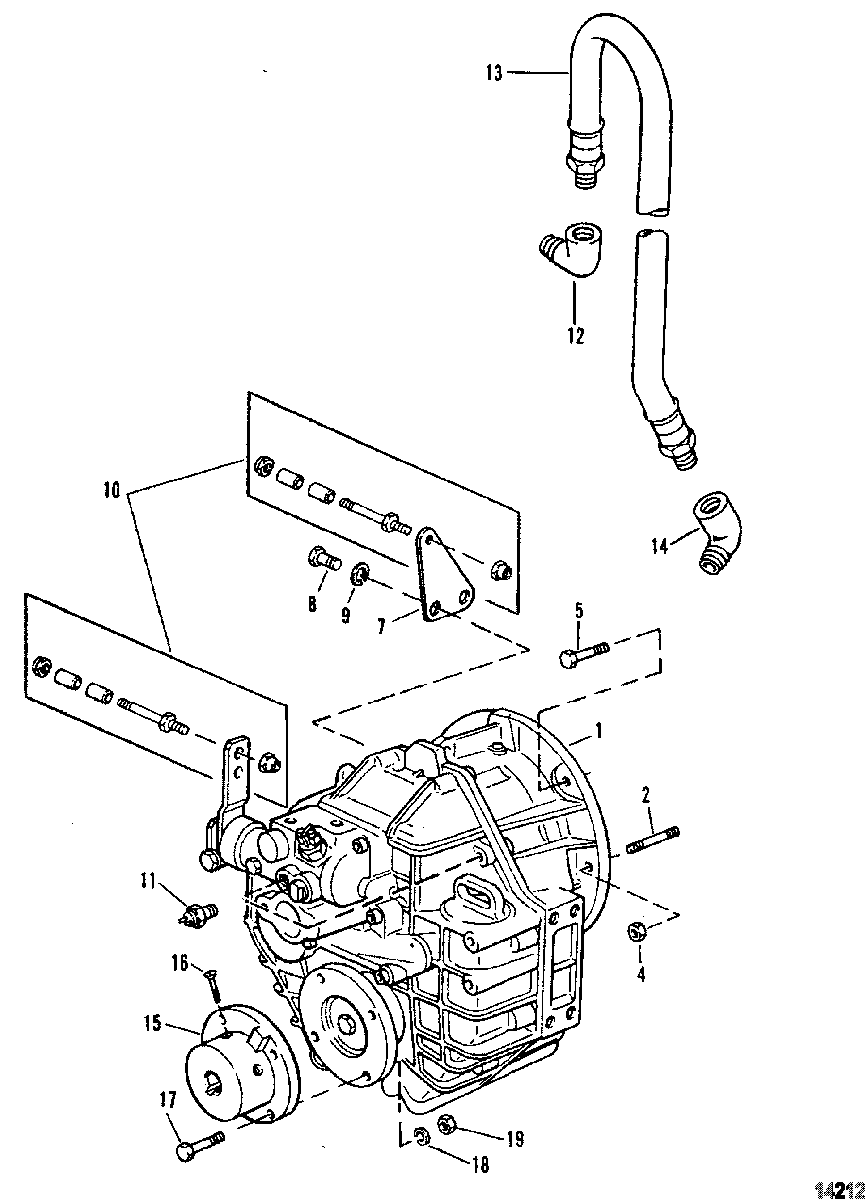

Transmission And Related Parts(Inboard) для Mercruiser - D3.0L VM 183 I/L5 1994-1995 0D725152 THRU 0F999999

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    (Direct Drive)
    TRANSMISSION, (1.5:1 Ratio)
    (Direct Drive)
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    (Direct Drive)
    TRANSMISSION, (2.0:1 Ratio)
    (Direct Drive)
  • 1
    863744T4 TRANSMISSION, (2.5:1 Ratio)
    (Direct Drive)
    TRANSMISSION, (2.5:1 Ratio)
    (Direct Drive)
  • 1
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    (V-Drive)
    TRANSMISSION, (1.5:1 Ratio)
    (V-Drive)
  • 1
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    (V-Drive)
    TRANSMISSION, (2.0:1 Ratio)
    (V-Drive)
  • 1
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    (V-Drive)
    TRANSMISSION, (2.5:1 Ratio)
    (V-Drive)
  • 2
    10-810002 STUD
    STUD
  • 4
    11-809922113 NUT
    NUT
  • 5
    10-809913837 SCREW
    SCREW
  • 7
    806238 BRACKET
    BRACKET
  • 8
    10-809919969 SCREW
    SCREW
  • 9
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 10
    16-97477A3 STUD KIT
    STUD KIT
  • 11
    87-88031 SWITCH, Tempature
    SWITCH, Tempature
  • 12
    22-35580 FITTING, Transmission Oil Cooler
    FITTING, Transmission Oil Cooler
  • 13
    32-81269939 HOSE, (35.50 Inches Bulk)
    HOSE, (35.50 Inches Bulk)
  • 13
    32-81269939 HOSE, (39.00 Inches Bulk)
    HOSE, (39.00 Inches Bulk)
  • 14
    22-63835 ELBOW, 45 Degree, Transmission
    ELBOW, 45 Degree, Transmission
  • 15
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 15
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 15
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 15
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 15
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 15
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 15
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 16
    10-60171 SCREW, (.375-16 x 1.250), Flange
    SCREW, (.375-16 x 1.250), Flange
  • 16
    10-60169 SCREW, (.375-16 x .750), Flange
    SCREW, (.375-16 x .750), Flange
  • 17
    10-805159 SCREW, (.437-20 x 1.500), Flange
    SCREW, (.437-20 x 1.500), Flange
  • 18
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 19
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
