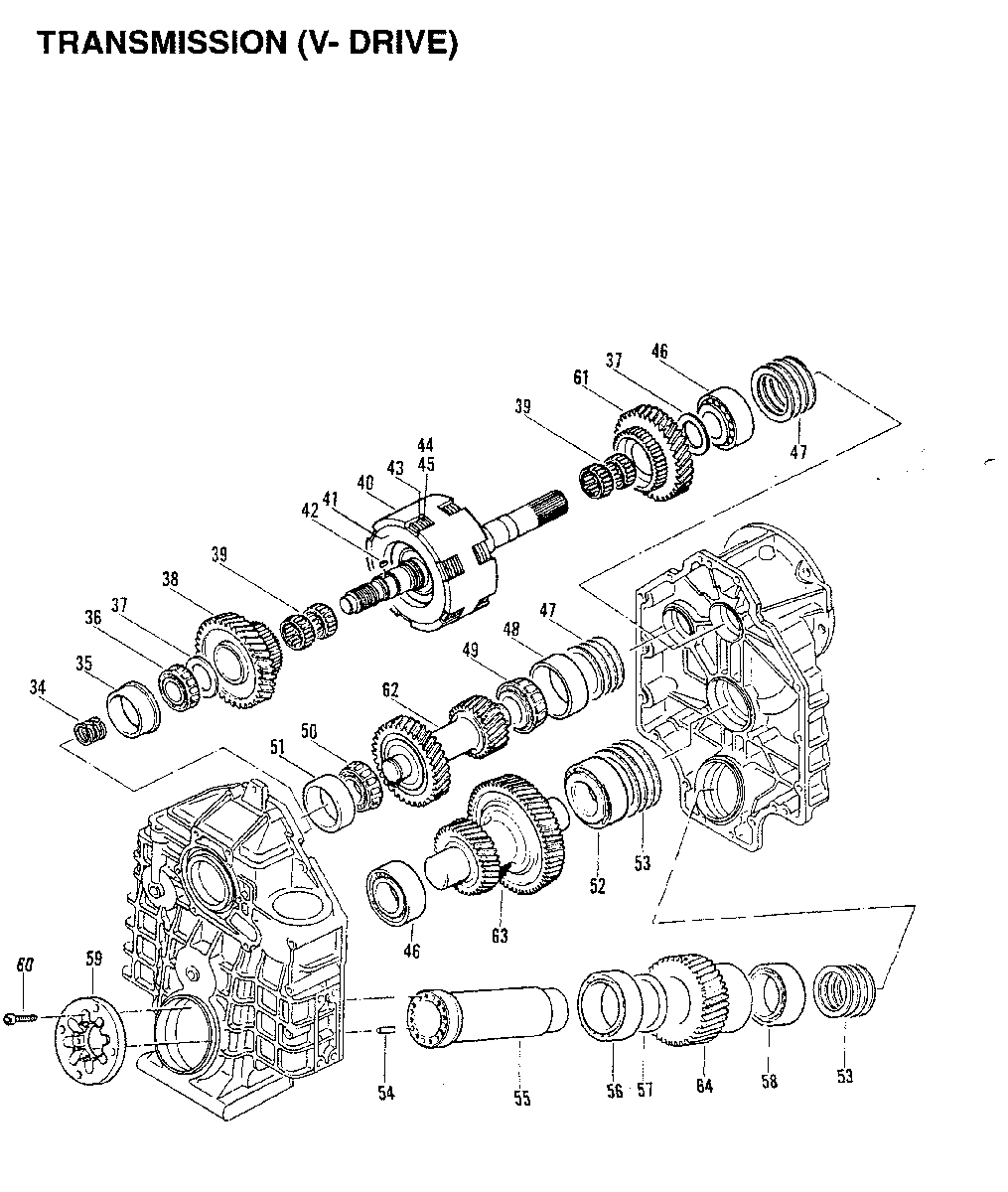

TRANSMISSION (V-DRIVE) (INBOARD) для Mercruiser - D254 TURBO AC (BRAVO) VM 254 I/L6 1990-1993 0C849461 THRU 0D554731

  • №
    Артикул
    Название
  • -
    863745T2 TRANSMISSION (1.5:1 RATIO)
    TRANSMISSION (1.5:1 RATIO)
  • -
    863745T3 TRANSMISSION (2.0:1 RATIO)
    TRANSMISSION (2.0:1 RATIO)
  • -
    863745T4 TRANSMISSION (2.5:1 RATIO)
    TRANSMISSION (2.5:1 RATIO)
  • 34
    53-813312 SNAP RING
    SNAP RING
  • 35
    31-811970 TAPERED ROLLER BEARING CUP
    TAPERED ROLLER BEARING CUP
  • 36
    31-811969 TAPERED ROLLER BEARING CONE
    TAPERED ROLLER BEARING CONE
  • 37
    12-811967 WASHER
    WASHER
  • 38
    43-813308 GEAR
    GEAR
  • 39
    31-813307 ROLLER BEARING
    ROLLER BEARING
  • 40
    813306 INPUT SHAFT
    INPUT SHAFT
  • 41
    813322 PRESSURE DISC
    PRESSURE DISC
  • 42
    28-813313 KEY
    KEY
  • 43
    53-813321 SNAP RING
    SNAP RING
  • 44
    813319 INNER CLUTCH DISC
    INNER CLUTCH DISC
  • 45
    813320 OUTER CLUTCH DISC
    OUTER CLUTCH DISC
  • 46
    30-811968 BALL BEARING
    BALL BEARING
  • 47
    15-813315 SHIM (.10MM)
    SHIM (.10MM)
  • 47
    15-813316 SHIM (.15MM)
    SHIM (.15MM)
  • 47
    15-813317 SHIM (.20MM)
    SHIM (.20MM)
  • 47
    15-813318 SHIM (.50MM)
    SHIM (.50MM)
  • 48
    31-811979 TAPERED ROLLER BEARING CUP
    TAPERED ROLLER BEARING CUP
  • 49
    31-811978 TAPERED ROLLER BEARING CONE
    TAPERED ROLLER BEARING CONE
  • 50
    31-811971 TAPERED ROLLER BEARING CONE
    TAPERED ROLLER BEARING CONE
  • 51
    31-811977 TAPERED ROLLER BEARING CUP
    TAPERED ROLLER BEARING CUP
  • 52
    31-811972 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 53
    15-811973 SHIM (.10MM)
    SHIM (.10MM)
  • 53
    15-811974 SHIM (.15MM)
    SHIM (.15MM)
  • 53
    15-811975 SHIM (.30MM)
    SHIM (.30MM)
  • 53
    15-811976 SHIM (.50MM)
    SHIM (.50MM)
  • 54
    17-811984 DOWEL PIN
    DOWEL PIN
  • 55
    811980 OUTPUT SHAFT
    OUTPUT SHAFT
  • 56
    31-811985 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 57
    12-811981 WASHER
    WASHER
  • 58
    31-811986 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 59
    811982 OUTPUT FLANGE
    OUTPUT FLANGE
  • 60
    10-811983 SCREW
    SCREW
  • 61
    43-811987 GEAR (1.5:1 RATIO)
    GEAR (1.5:1 RATIO)
  • 62
    811951 REVERSING SHAFT (1.5:1 RATIO)
    REVERSING SHAFT (1.5:1 RATIO)
  • 63
    811952 INTERMEDIATE SHAFT (1.5:1 RATIO)
    INTERMEDIATE SHAFT (1.5:1 RATIO)
  • 64
    43-811950 GEAR (1.5:1 RATIO0)
    GEAR (1.5:1 RATIO0)
  • 61
    43-811949 GEAR (2.0:1 RATIO)
    GEAR (2.0:1 RATIO)
  • 62
    811947 REVERSING SHAFT (2.0:1 RATIO)
    REVERSING SHAFT (2.0:1 RATIO)
  • 63
    811948 INTERMEDIATE SHAFT (2.0:1 RATIO)
    INTERMEDIATE SHAFT (2.0:1 RATIO)
  • 64
    43-811950 GEAR (2.0:1 RATIO)
    GEAR (2.0:1 RATIO)
  • 61
    43-811949 GEAR (2.5:1 RATIO)
    GEAR (2.5:1 RATIO)
  • 62
    811947 REVERSING SHAFT (2.5:1 RATIO)
    REVERSING SHAFT (2.5:1 RATIO)
  • 63
    811946 INTERMEDIATE SHAFT (2.5:1 RATIO)
    INTERMEDIATE SHAFT (2.5:1 RATIO)
  • 64
    43-811945 GEAR (2.5:1 RATIO)
    GEAR (2.5:1 RATIO)
