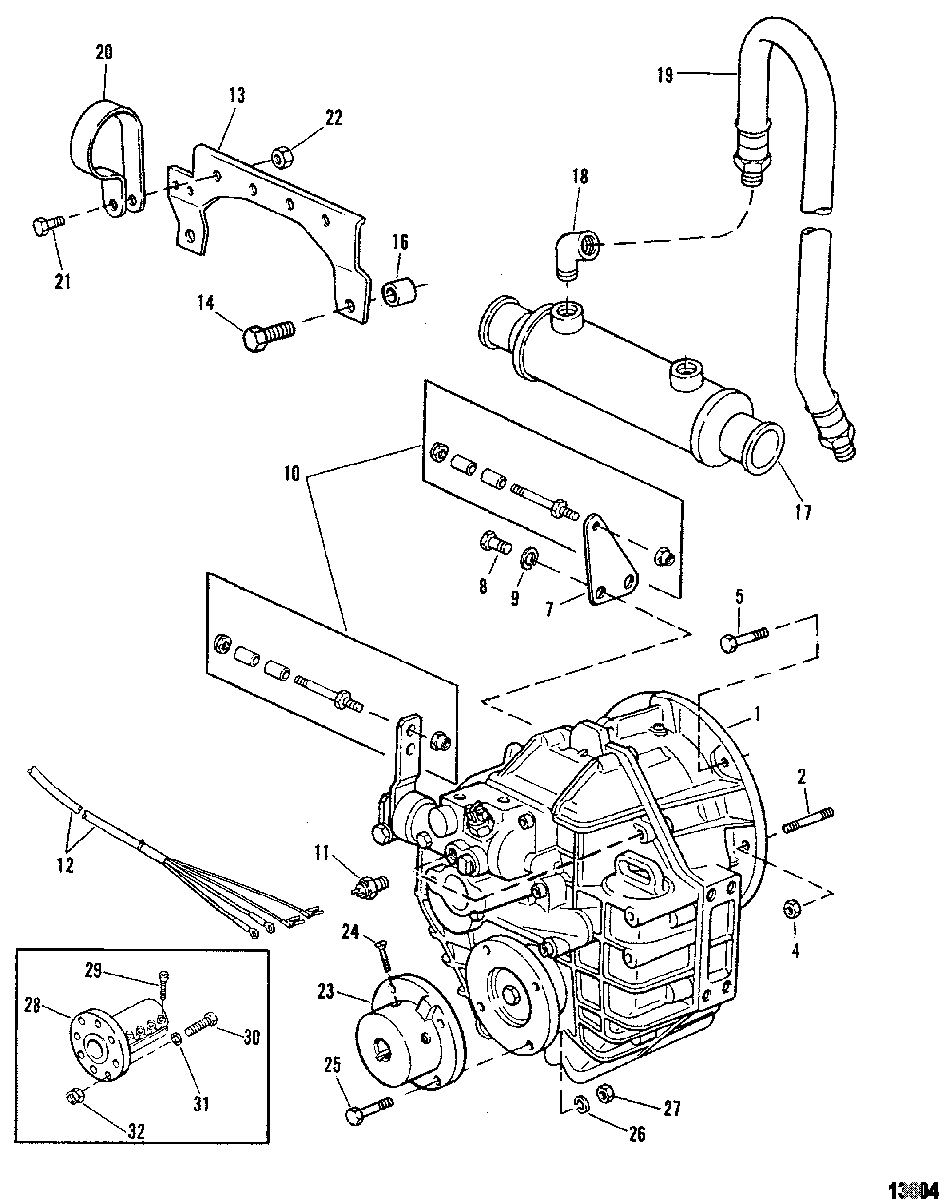

Transmission And Related Parts Hydraulic Transmission) для Mercruiser - D183 TURBO AC (MCM & MIE) VM 183 I/L5 1990-1993 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • 1
    863744T4 TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)
  • 2
    16-910002 STUD
    STUD
  • 4
    11-400214 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 5
    10-809913837 SCREW
    SCREW
  • 7
    806238 BRACKET
    BRACKET
  • 8
    10-809919969 SCREW
    SCREW
  • 9
    12-879194141 LOCKWASHER
    LOCKWASHER
  • 10
    16-97477A3 STUD KIT
    STUD KIT
  • 11
    87-88031 SWITCH, Tempature
    SWITCH, Tempature
  • 12
    84-814181A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 13
    801326972 BRACKET
    BRACKET
  • 14
    10-809913851 SCREW
    SCREW
  • 16
    23-45353 SPACER
    .
    SPACER
    .
  • 16
    63832A1 COOLER
    COOLER
  • 17
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 18
    84-812694 HOSE
    HOSE
  • 19
    54-18904 CLIP
    CLIP
  • 20
    10-40001129 SCREW
    SCREW
  • 21
    11-815088 NUT
    NUT
  • 23
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00) (1")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.00) (1")
    (Use With English Shaft)
  • 23
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125) (1..125")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.125) (1..125")
    (Use With English Shaft)
  • 23
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25) (1.250")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.25) (1.250")
    (Use With English Shaft)
  • 23
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375) (1.375")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.375) (1.375")
    (Use With English Shaft)
  • 23
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50) (1.50")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.50) (1.50")
    (Use With English Shaft)
  • 23
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75) (1.75")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 1.75) (1.75")
    (Use With English Shaft)
  • 23
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00) (2.00")
    (Use With English Shaft)
    FLANGE ASSEMBLY, (5.00 x 2.00) (2.00")
    (Use With English Shaft)
  • 24
    10-60171 SCREW, (.375-16 x 1.250), Flange
    (Use With English Shaft)
    SCREW, (.375-16 x 1.250), Flange
    (Use With English Shaft)
  • 24
    10-60169 SCREW, (.375-16 x .750), Flange
    (Use With English Shaft)
    SCREW, (.375-16 x .750), Flange
    (Use With English Shaft)
  • 25
    10-805159 SCREW, (.437-20 x 1.500), Flange
    (Use With English Shaft)
    SCREW, (.437-20 x 1.500), Flange
    (Use With English Shaft)
  • 26
    13-32993 LOCKWASHER, (.437)
    (Use With English Shaft)
    LOCKWASHER, (.437)
    (Use With English Shaft)
  • 27
    11-22024 NUT, (.437-14)
    (Use With English Shaft)
    NUT, (.437-14)
    (Use With English Shaft)
  • 28
    19559A1 FLANGE (30 MM)
    (Use With English Shaft)
    FLANGE (30 MM)
    (Use With English Shaft)
  • 28
    19560A1 FLANGE (35 MM)
    (Use With Metric Shaft)
    FLANGE (35 MM)
    (Use With Metric Shaft)
  • 28
    19561A1 FLANGE (40 MM)
    (Use With Metric Shaft)
    FLANGE (40 MM)
    (Use With Metric Shaft)
  • 28
    19562A1 FLANGE (45 MM)
    (Use With Metric Shaft)
    FLANGE (45 MM)
    (Use With Metric Shaft)
  • 29
    10-4007640 SCREW
    (Use With Metric Shaft)
    SCREW
    (Use With Metric Shaft)
  • 30
    10-40001230 SCREW
    (Use With Metric Shaft)
    SCREW
    (Use With Metric Shaft)
  • 31
    13-400249 LOCKWASHER
    (Use With Metric Shaft)
    LOCKWASHER
    (Use With Metric Shaft)
  • 32
    11-4002016 NUT
    (Use With Metric Shaft)
    NUT
    (Use With Metric Shaft)
