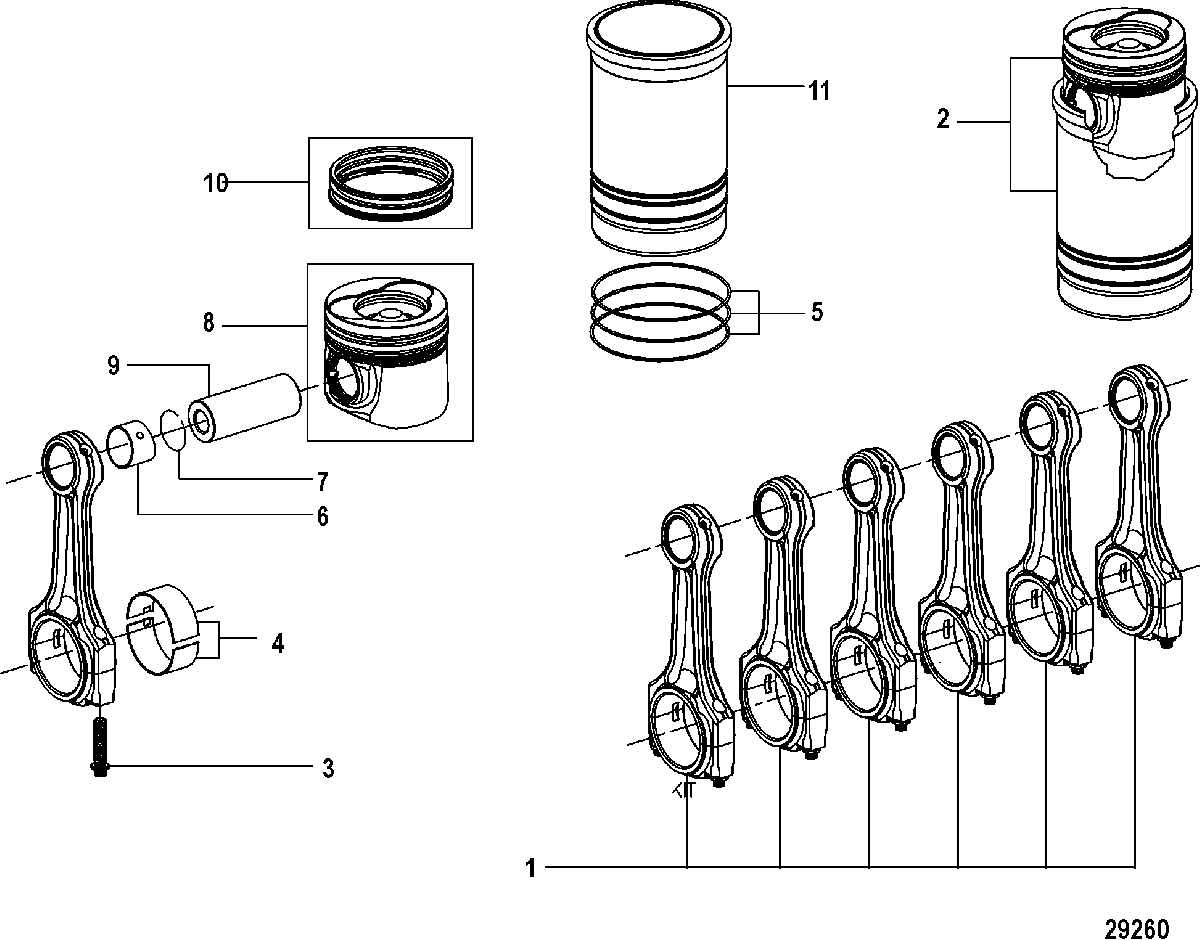

Connecting Rod and Piston, Design-II для Mercruiser - CMD QSD 4.2 ES 350 88417000 THRU 88419999
-
№АртикулНазвание
-
1641-889860 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
251-879172216 LINER KIT, Cylinder
Inboard, 230 Hp SN# 88405016 & UpLINER KIT, Cylinder
Inboard, 230 Hp SN# 88405016 & Up -
251-879172216 LINER KIT, Cylinder
Inboard, 270 Hp SN# 88400050 & UpLINER KIT, Cylinder
Inboard, 270 Hp SN# 88400050 & Up -
251-879172216 LINER KIT, Cylinder
Inboard, 350 Hp SN# 88416031 & UpLINER KIT, Cylinder
Inboard, 350 Hp SN# 88416031 & Up -
251-879172216 LINER KIT, Cylinder
Sterndrive, 230 Hp SN# 88406397 & UpLINER KIT, Cylinder
Sterndrive, 230 Hp SN# 88406397 & Up -
251-879172216 LINER KIT, Cylinder
Sterndrive, 270 Hp SN# 88401074 & UpLINER KIT, Cylinder
Sterndrive, 270 Hp SN# 88401074 & Up -
251-879172216 LINER KIT, Cylinder
Sterndrive, 350 Hp SN# 88417001 & UpLINER KIT, Cylinder
Sterndrive, 350 Hp SN# 88417001 & Up -
310-879150154 BOLTBOLT
-
48M0077370 BEARING ASSEMBLY, (.25 mm)BEARING ASSEMBLY, (.25 mm)
-
431-8M0054658 BEARING ASSEMBLY, StandardBEARING ASSEMBLY, Standard
-
525-879194172 O-RING SETO-RING SET
-
623-898101464 BUSHING, PistonBUSHING, Piston
-
7NSS NOT SOLD SEPARATE, RINGNOT SOLD SEPARATE, RING
-
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Inboard, 230 Hp SN# 88405016 & UpPISTON ASSEMBLY, With Rings and Pin
Inboard, 230 Hp SN# 88405016 & Up -
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Inboard, 270 Hp SN# 88400050 & UpPISTON ASSEMBLY, With Rings and Pin
Inboard, 270 Hp SN# 88400050 & Up -
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Inboard, 350 Hp SN# 88416031 & UpPISTON ASSEMBLY, With Rings and Pin
Inboard, 350 Hp SN# 88416031 & Up -
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Sterndrive, 230 Hp SN# 88406397 & UpPISTON ASSEMBLY, With Rings and Pin
Sterndrive, 230 Hp SN# 88406397 & Up -
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Sterndrive, 270 Hp SN# 88401074 & UpPISTON ASSEMBLY, With Rings and Pin
Sterndrive, 270 Hp SN# 88401074 & Up -
8795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
Sterndrive, 350 Hp SN# 88417001 & UpPISTON ASSEMBLY, With Rings and Pin
Sterndrive, 350 Hp SN# 88417001 & Up -
9NSS NOT SOLD SEPARATE, PIN, PistonNOT SOLD SEPARATE, PIN, Piston
-
1039-879288074 RING SET
Inboard, 230 Hp SN# 88405016 & UpRING SET
Inboard, 230 Hp SN# 88405016 & Up -
1039-879288074 RING SET
Inboard, 270 Hp SN# 88400050 & UpRING SET
Inboard, 270 Hp SN# 88400050 & Up -
1039-879288074 RING SET
Inboard, 350 Hp SN# 88416031 & UpRING SET
Inboard, 350 Hp SN# 88416031 & Up -
1039-879288074 RING SET
Sterndrive, 230 Hp SN# 88406397 & UpRING SET
Sterndrive, 230 Hp SN# 88406397 & Up -
1039-879288074 RING SET
Sterndrive, 270 Hp SN# 88401074 & UpRING SET
Sterndrive, 270 Hp SN# 88401074 & Up -
1039-879288074 RING SET
Sterndrive, 350 Hp SN# 884417001 & UpRING SET
Sterndrive, 350 Hp SN# 884417001 & Up -
1151-889857 CYLINDER LINERCYLINDER LINER
