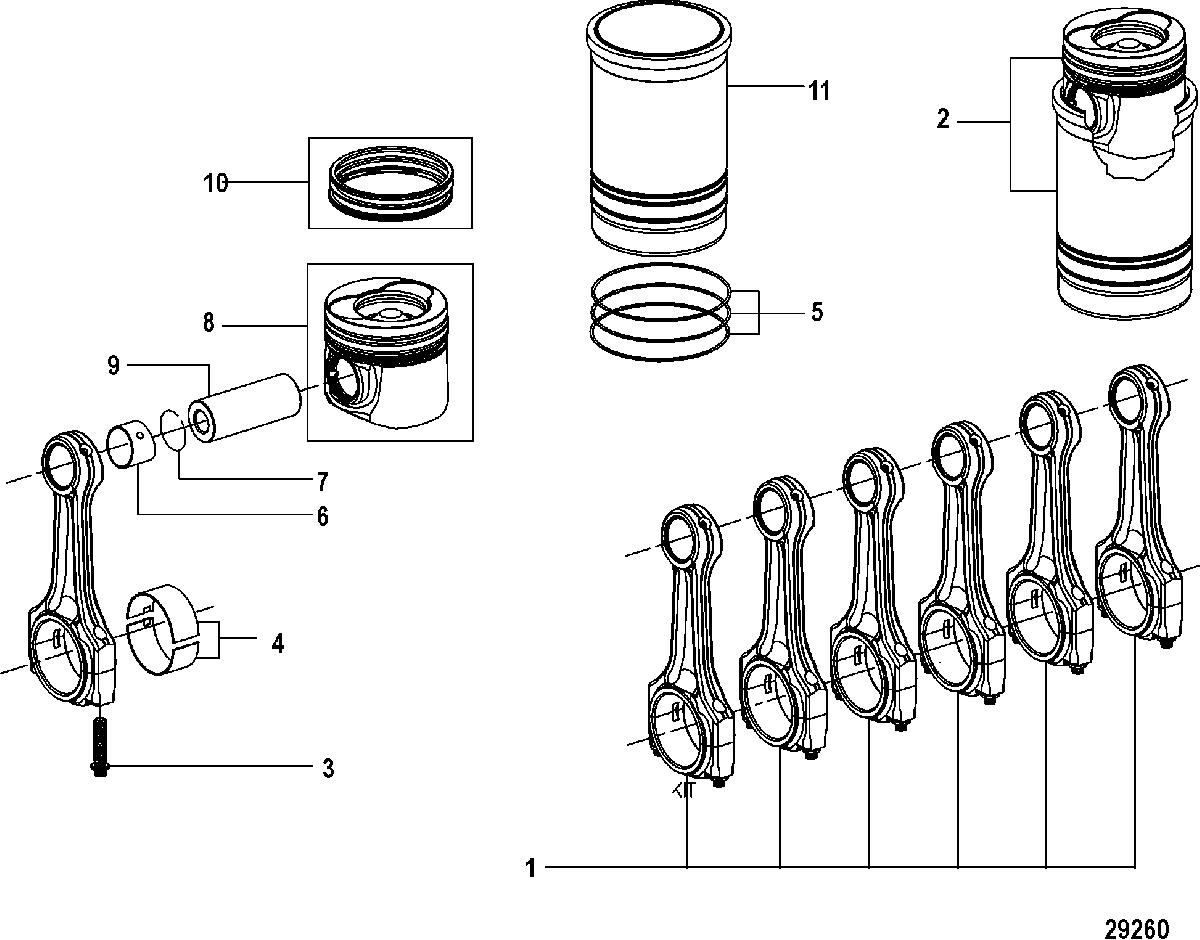

Connecting Rod and Piston, Design-II для Mercruiser - CMD QSD 4.2 ES 270 88401000 THRU 88404999

  • №
    Артикул
    Название
  • 1
    641-889860 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    51-879172216 LINER KIT, Cylinder
    Inboard, 230 Hp SN# 88405016 & Up
    LINER KIT, Cylinder
    Inboard, 230 Hp SN# 88405016 & Up
  • 2
    51-879172216 LINER KIT, Cylinder
    Inboard, 270 Hp SN# 88400050 & Up
    LINER KIT, Cylinder
    Inboard, 270 Hp SN# 88400050 & Up
  • 2
    51-879172216 LINER KIT, Cylinder
    Inboard, 350 Hp SN# 88416031 & Up
    LINER KIT, Cylinder
    Inboard, 350 Hp SN# 88416031 & Up
  • 2
    51-879172216 LINER KIT, Cylinder
    Sterndrive, 230 Hp SN# 88406397 & Up
    LINER KIT, Cylinder
    Sterndrive, 230 Hp SN# 88406397 & Up
  • 2
    51-879172216 LINER KIT, Cylinder
    Sterndrive, 270 Hp SN# 88401074 & Up
    LINER KIT, Cylinder
    Sterndrive, 270 Hp SN# 88401074 & Up
  • 2
    51-879172216 LINER KIT, Cylinder
    Sterndrive, 350 Hp SN# 88417001 & Up
    LINER KIT, Cylinder
    Sterndrive, 350 Hp SN# 88417001 & Up
  • 3
    10-879150154 BOLT
    BOLT
  • 4
    8M0077370 BEARING ASSEMBLY, (.25 mm)
    BEARING ASSEMBLY, (.25 mm)
  • 4
    31-8M0054658 BEARING ASSEMBLY, Standard
    BEARING ASSEMBLY, Standard
  • 5
    25-879194172 O-RING SET
    O-RING SET
  • 6
    23-898101464 BUSHING, Piston
    BUSHING, Piston
  • 7
    NSS NOT SOLD SEPARATE, RING
    NOT SOLD SEPARATE, RING
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 230 Hp SN# 88405016 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 230 Hp SN# 88405016 & Up
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 270 Hp SN# 88400050 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 270 Hp SN# 88400050 & Up
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Inboard, 350 Hp SN# 88416031 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Inboard, 350 Hp SN# 88416031 & Up
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 230 Hp SN# 88406397 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 230 Hp SN# 88406397 & Up
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 270 Hp SN# 88401074 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 270 Hp SN# 88401074 & Up
  • 8
    795-8M0076459 PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 350 Hp SN# 88417001 & Up
    PISTON ASSEMBLY, With Rings and Pin
    Sterndrive, 350 Hp SN# 88417001 & Up
  • 9
    NSS NOT SOLD SEPARATE, PIN, Piston
    NOT SOLD SEPARATE, PIN, Piston
  • 10
    39-879288074 RING SET
    Inboard, 230 Hp SN# 88405016 & Up
    RING SET
    Inboard, 230 Hp SN# 88405016 & Up
  • 10
    39-879288074 RING SET
    Inboard, 270 Hp SN# 88400050 & Up
    RING SET
    Inboard, 270 Hp SN# 88400050 & Up
  • 10
    39-879288074 RING SET
    Inboard, 350 Hp SN# 88416031 & Up
    RING SET
    Inboard, 350 Hp SN# 88416031 & Up
  • 10
    39-879288074 RING SET
    Sterndrive, 230 Hp SN# 88406397 & Up
    RING SET
    Sterndrive, 230 Hp SN# 88406397 & Up
  • 10
    39-879288074 RING SET
    Sterndrive, 270 Hp SN# 88401074 & Up
    RING SET
    Sterndrive, 270 Hp SN# 88401074 & Up
  • 10
    39-879288074 RING SET
    Sterndrive, 350 Hp SN# 884417001 & Up
    RING SET
    Sterndrive, 350 Hp SN# 884417001 & Up
  • 11
    51-889857 CYLINDER LINER
    CYLINDER LINER
